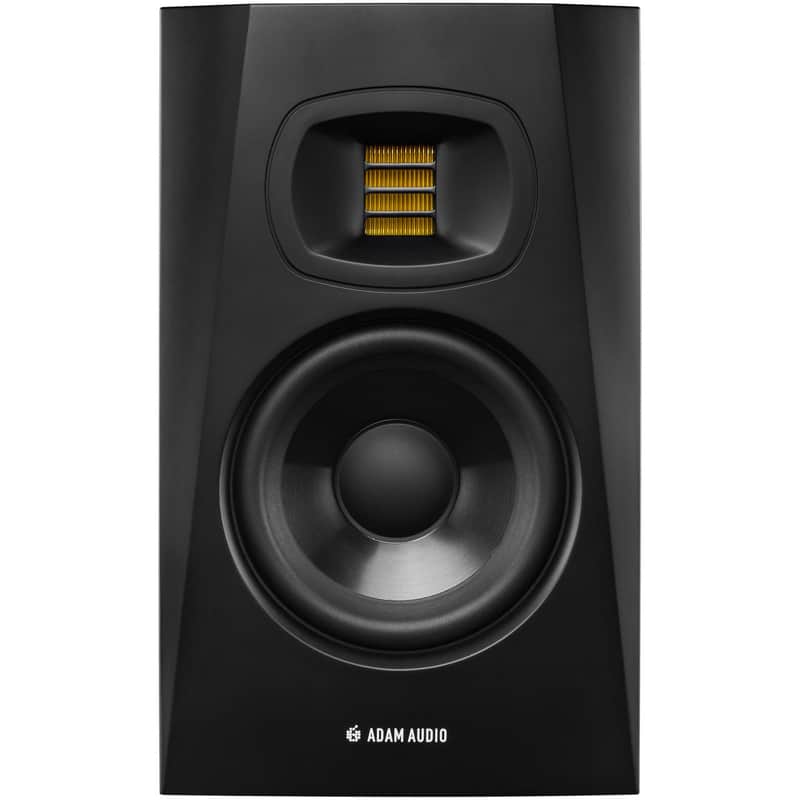

ADAM Audio T5V 5 inch Powered Studio Monitor (Open Box) PRODUCT DESCRIPTION

This listing is for an open box item. All of the original contents, packaging, and warranty are included. The packaging has been opened and may show wear, however, the contents are in new condition.

T5V

Professional sounding, high-quality audio meets affordability with the ADAM Audio T5V. Designed with the home-studio in mind, the ADAM Audio T5V dimensions ideally complement the bedroom setup. The compact build, however, in no way compromises ADAM Audio’s high-quality sound.

Equipped with ADAM Audio’s U-ART accelerated ribbon tweeter, calibrated using the High Frequency Propagation (HPS) waveguide, the two-way nearfield monitor boasts incredible clarity. This custom-made technology, as also used by ADAM’s flagship S Series monitor, allows the ADAM Audio T5V pair to disperse across a wide area, with a high-resolution going up to 25 kHz. The uniformed dispersion of high frequencies provides an incredibly wide sweet spot that allows you to work from a range of listening positions.

The economic studio monitor comes with new DSP technology and is powered with two D-Class amplifiers, one that controls the 5" ADAM Audio T5V subwoofer at 50 W, the other at 20 W, producing SPLs of up to 106 dB per pair. This gives the monitor a deeper image, offering lower frequency response and providing greater detail in your sound.

When it comes to the ADAM Audio T5V vs T7V, there are a few key differences. The T5V’s consolidated dimensions give it an unbeatable cost/performance ratio. Should you need more bottom end, the T5V is compatible with the ADAM Audio T10S subwoofer.

A perfect accompaniment for beginners and professionals alike, the ADAM Audio T5V reviews speak to the monitor’s high-end clarity, controlled bass, and a depth of audio that brings a new dimension to audio, all at an extremely welcoming price.

General Data

• Panel: Rear
• Max. Power Consumption: 132 W
• Weight: 12.6 lbs (5.7 kg)
• Height x Width x Depth: 11.7″ x 7″ x 11.7″ (298 mm x 179 mm x 297mm)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, Quick Start Guide
• Audio Input Connectors
• Analog: XLR / RCA
• Input Impedance: 10 kOhm / 20 kOhm

Amplification

Woofer:

• Amplifier Type: PWM
• Amp. Power RMS: 50 W

Tweeter:

• Amplifier Type: PWM
• Amp. Power RMS: 20 W

Acoustics

• Frequency Response: 45 Hz – 25 kHz (-6 dB)
• THD > 80 Hz: 0.5 %
• Max. SPL per pair at 1 m: ≥106 dB
• Crossover Frequency: 3 kHz

Drivers

• Woofer:
• Basket Diameter: 5″
• Voice Coil Diameter: 1″
• Cone Material: Polypropylene

Tweeter:

• Type: U-ART
• Diaphragm Area: 4 inch² (2420 mm²)
• Equiv. Diaphragm Diameter: 1.9″ (48 mm)
• Velocity Transform Ratio: 4 to 1
• Diaphragm Weight: 0.17 g
• Waveguide: HPS

Control Options

• Input Sensitivity: -10 to +4 dB
• Gain: Yes
• High Shelf EQ > 5 kHz: – 2 dB, 0 dB, +2 dB
• Low Shelf EQ < 300 Hz: – 2 dB, 0 dB, +2 dB
