Manifold Research Centre Ubique
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb

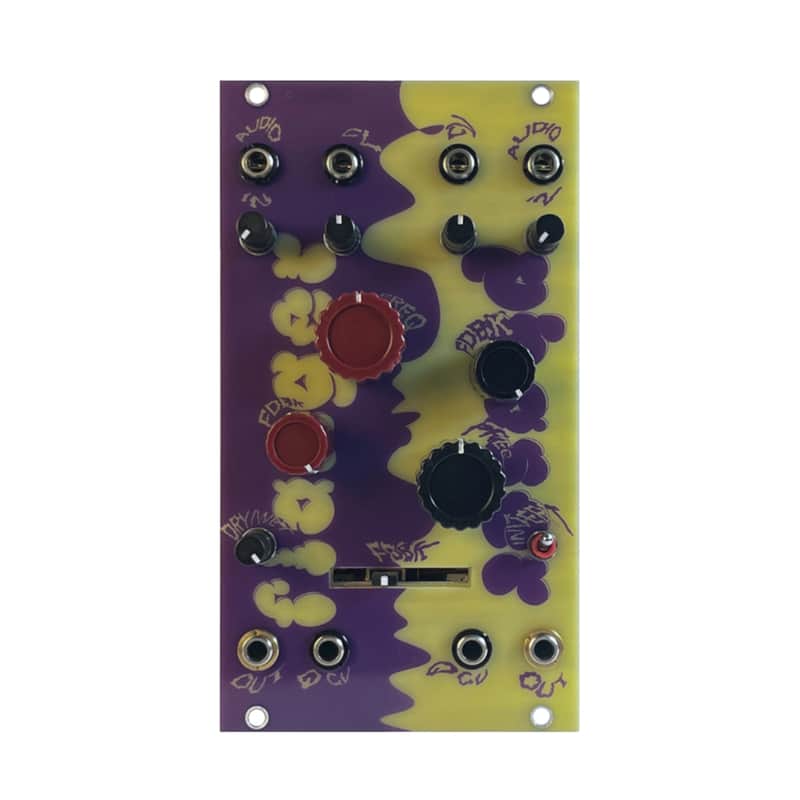

Ubique is a feedback phase network contained within a module for the euroack ecosystem. It is a lens into the micro time domain, consisting of 2 distinct but entangled cores.
The left core is a BBD flanger or short delay based on V3205D, with a range from 5ms to about 250ms. The right core is a transistor ladder 10 stage phaser.
Each one of the sections has its own audio input with attenuator (AUDIO IN), output (OUT), frequency (FREQ) and feedback controls (FDBK), CV inputs over frequency with attenuverters (CV) and CV inputs over resonance (Q CV). LEFT side features a DRY/WET control (only for the flanger out), and RIGHT side an INVERT switch (to change the color of your phasing).
- Width: 14HP
- Depth: TBD
- Power: 30mA @ +12V / 25mA @ -12V
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Categories | |
| Made In |
|
| Synth Module Function |
|
| Horizontal Pitch |
|
