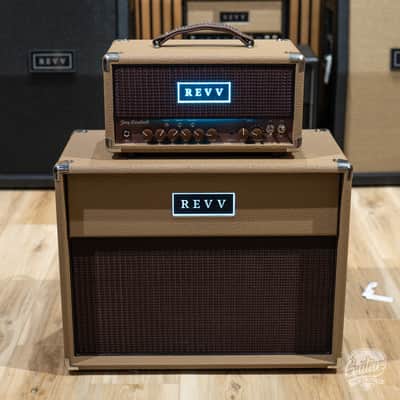

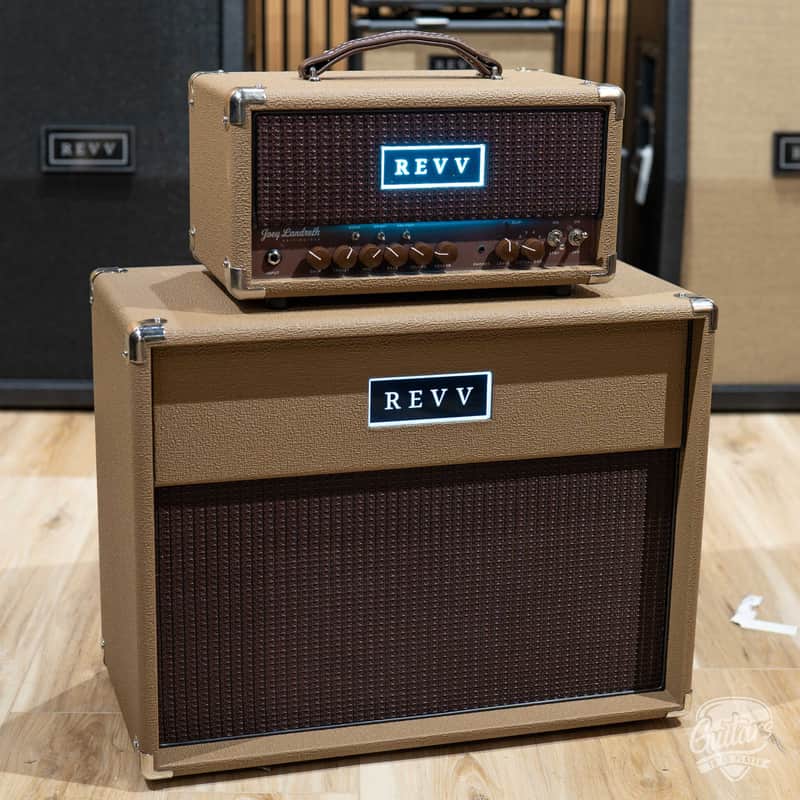

Revv D20 JL Joey Landreth 20/4W Tube Amp Head w/ 1x12 Cab & Speaker Cable –Brown

Brand New with Warranty. We are an authorized Revv Amps Dealer.



Bundle includes:

• Revv D20 JL Amp Head
• Slip Cover for Head
• 2-button Footswitch
• 5-pin DIN Footswitch Cable
• Revv 1x12” Speaker Cabinet
• 4-pin DIN cable to Power Logo Backlight on Cabinet
• Speaker Cable

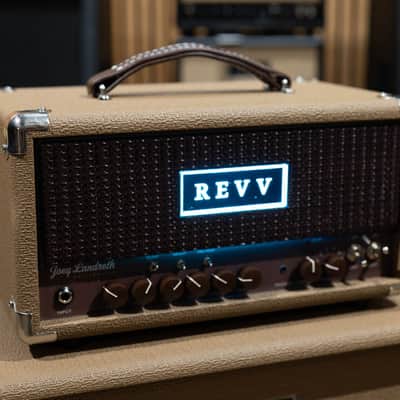

Joey Landreth is a longtime Revv collaborator & award-winning touring & recording artist known for his baritone slide playing, impeccable phrasing, & deep appreciation of high quality guitar gear. The D20 JL features the same boutique tube clean / edge of breakup tones & direct performance technology as the D20 MK2 with custom voicing tweaks for Joey as well as his unique tolex, grille, chassis, & knob choices.

Revv ships the D20 JL with slip cover and with footswitch for Boost and Reverb included!

What Do We Think

The D20 JL pushes the resonant frequency of the mids up from low mids to… well… mid mids. This steers the amp away from the more scooped profile of the D20 MK2 and into the brownface stylings of an early 60’s Fender. The colorway of the JL is not just a gimmick. Your ears and eyes will indeed converge on the delicious tonal color coming out of the D20 JL.

Voiced as it is, this amp is a fantastic candidate for those edge-of-breakup tones and beyond. The power tube breakup is glorious if you push the Volume knob into the 2 or 3 o’clock regions. But if you prefer to get your breakup in the preamp section, never fear. The Boost switch will take you there very easily and leave the Volume knob free to control the overall output level of the amp.

This amp also FEELS amazing, whether running it clean and pedal platform-friendly or pushing the preamp and power sections into submission. It responds adeptly as you roll back the tone or volume on the guitar or flip through pickup positions. A 5W setting is available if you need to push the amp hard at low volumes, but don’t forget you can disengage your speaker cab entirely and go XLR direct out when needed!

The touch sensitivity and transparency of the amp convey flawlessly through the DI out. We’ve found getting great tones to be as simple as using Preset 1 with a little 100hz rolloff added at the board or in the DAW, just as we’d do with a real mic on a cab. But you can tweak the Two Notes cab IR presets to your heart’s content, swapping out cabs, mics and mic positions.

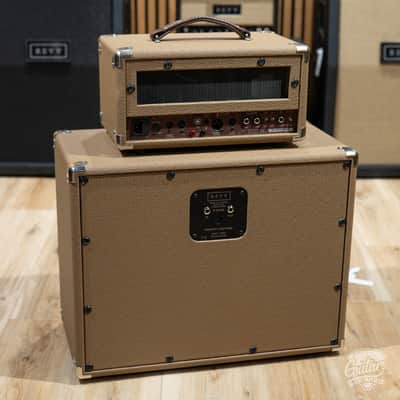

1x12 JL Speaker Cab

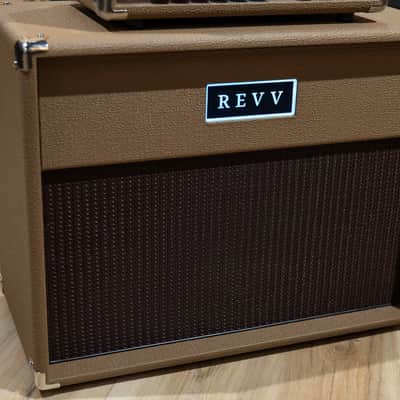

The Revv 1x12 JL Speaker cabinet is a durable & portable 1x12 cabinet perfect for small heads. It joins the lineup as a companion to Joey Landreth's new D20JL head, & as such has Joey's custom tolex & grille choices. This cabinet utilizes our brand new Revv-exclusive custom speaker, the RV-90. The RV-90's high headroom & balanced sound makes it suitable for a wide variety of amps.

Features

• D20 MK2 w/ Joey Landreth’s custom tone tweaks & colorway
• Clean & edge of breakup tones w/ bright & gain boost switches
• Modified for tighter low end & a warm clear midrange
• Buffered FX loop, reverb & switchable 4/20w operation
• Reactive load & impulse responses for direct performance
• Made in Canada w/ 2 year limited warranty & footswitch

Head Tech Specs

Design: Tube

Channels: Single w/ switchable gain boost

Power Rating: 20W (adjustable to 4W)

Preamp Tubes: 2 x 12AX7

Power Tubes: 2 x 6V6

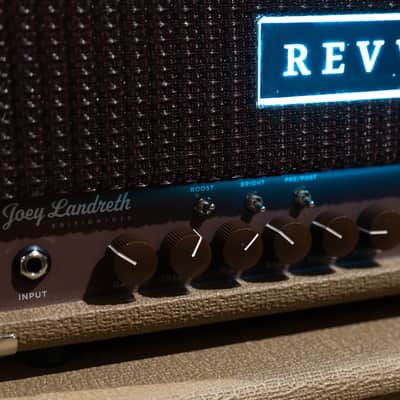

Tone Controls: 3-band EQ, Gain, Volume, Gain Boost Switch, Bright Switch

Utility Controls: Reverb Level, Direct Output Level, Virtual Cabinet Rotary Selector

Direct Capabilities: Two notes Torpedo-Embedded reactive load & dynIR Virtual Cabs

Preset Virtual Cabs: 6 w/ rotary switch, 128 w/ MIDI presets

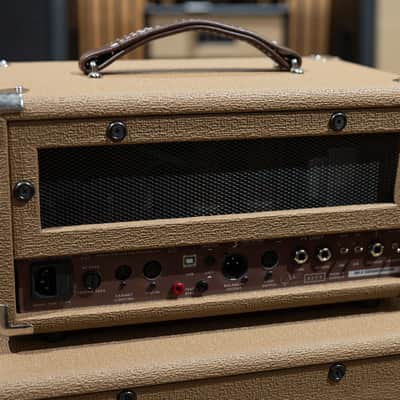

Additional Features: Pre/Post switch, digital reverb, ground lift, speaker/load switch

Outputs: 1/4" switchable 4Ω or 8Ω (cabinet), XLR (Torpedo Out)

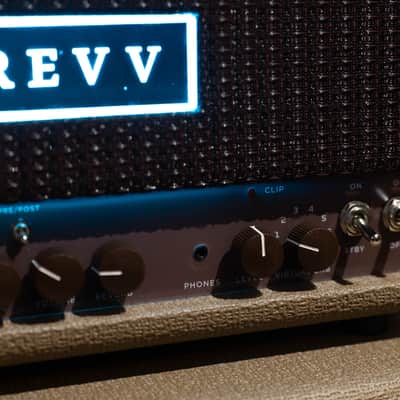

Headphones: 1/8" jack headphone amp w/ adjustable level & clip warning LED

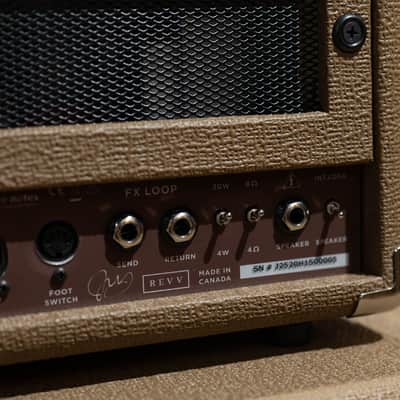

Effects Loop: Yes, buffered

MIDI I/O: 1 x Type B

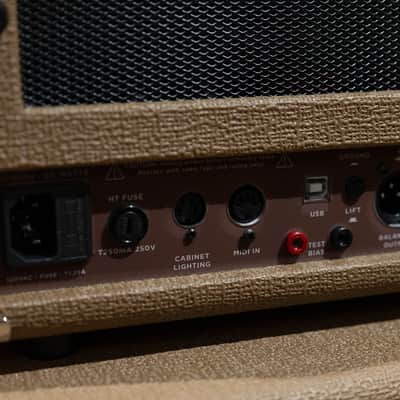

Other I/O: 1 x 4-pin (Revv cabinet lighting)

Connectivity I/O: USB Type B for Virtual Cabinet & preset adjustment

Bias: Easy-access adjustable fixed bias w/ easy-access fuse

Construction: Baltic birch tolexed headshell w/ Joey's personal tolex, grille, chassis, & knob choices

Power Cable: Standard IEC AC cable

Dimensions H x W x D: 10" x 14.75" x 8.75"

Weight: 15.5 lbs

Footswitch: 2-button, included

Cab Tech Specs

Configuration: 1 x 12"

Speakers: 1 Revv RV-90

Power: 90W

Impedance: 8 ohms

Mono/Stereo: Mono

Cabinet: Straight

Open/Closed Back: Closed

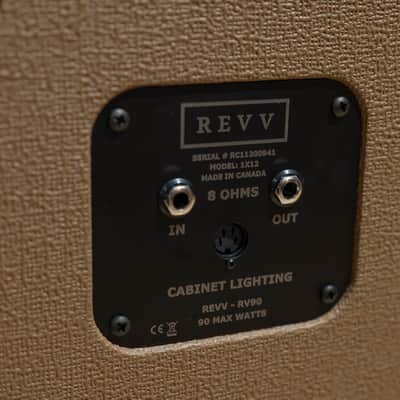

Inputs: 1 x 1/4"

Outputs: 1 x 1/4" Thru

Other I/O: 4-pin DIN (logo light)

Construction: 18mm Baltic Birch

Height: 17"

Width: 22"

Depth: 12"

Weight: 35 lbs.
