Brand New w/ Warranty. We are an authorized Xotic dealer.

Built on the shoulders of the legendary AC-Booster V1, the new AC Booster V2 retains the amp-like tones of its predecessor and offers increased flexibility, headroom, and tone shaping.

With the addition of 4 multi-mode dipswitches, you have access to even more tone and EQ options. There are plenty of drive pedal options in the marketplace, but with the V2, the tried-and-true AC booster continues its evolution into tonal nirvana.



From Xotic:

The newly designed AC Booster V2 offers a wide range of overdrive with touch sensitivity. Reacting exactly like a great tube amp, the AC Booster V2 offers a wide range of overdrive with touch sensitivity just like the original AC Booster.

You can set it up to get a crunchy warm overdriven tone and with just a little rolling off the guitar’s volume, it will give you a great clean sound.



9 – 18VDC

Center Negative



Two Band EQ:

Treble & Bass



Gain #2

Boost



Input Impedance:

1M ohm



Output Impedance:

2K ohm



Compression:

Activate 6dB compression



Mode: On Classic:

Original AC booster



Mode: Off Modern:

More gain and articulation



Mode: Lo Mid Boost:

+6dB boost @ 500hz



Mode: Hi Mid Boost:

+6dB boost @ 2khz



Treble and Bass Control Range

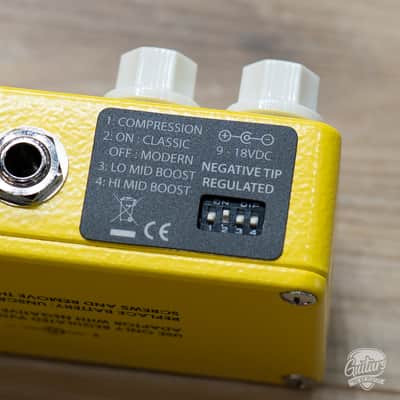

4 POLE DIPSWITCH ON THE SIDE OF THE PEDAL WHICH FURTHER ALLOWS MORE “TONE” SHAPING AT YOUR FINGERTIPS.



Specs:

Dimensions (W/D/H): 4.39″ x 2.38″ x 1.98″ (110mm X 60mm X 50mm)

Weight: 0.6 lbs. (270g)

True Bypass Switching Power Consumption: 9VDC/10mA (max) Approx. 40hrs continuous use with alkaline battery Battery Type: 9VDC (006P) x 1 AC Adapter

(Optional): 9-18VDC Negative Tips

(Regulated Only) Boss PSA, Dunlop Brick, Voodoo Labs, Input Impedance: 1M ohm Output Impedance: 2K ohm.

Input Jack Nominal input -20dBu Unplug when it’s not in use for a longer battery life.

DC Jack: 2.1mm x 5.5mm 9 – 18VDC – Negative Center Regulated Only.

When an external power supply is used, the battery is disconnected from the circuit.

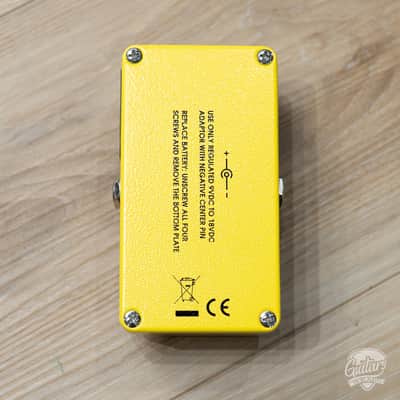

Remove four screws from the bottom plate to access battery.
