The Industry Standard
Hybrid Sampling Pad

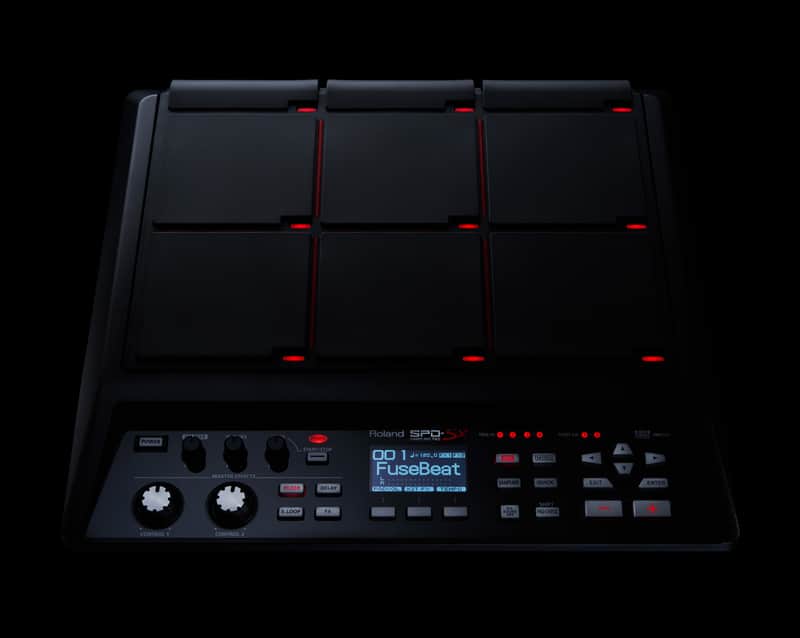

Since 2011, the SPD-SX has been a mainstay on professional stages worldwide, its distinctive profile regularly seen beside both digital and hybrid drum kits. This landmark Roland instrument sparked the sampling pad revolution with a wide range of tracks, clicks, loops, and one-shot sounds stored inside. Drummers and performing musicians can record, store, and trigger any type of sound on command—easing the burden of making live performances sound like the original recordings. Along with its sampling and import features, the SPD-SX comes with versatile preset kits and a large pre-loaded sample library, including loops, one-shot sounds, and melodic phrases to spark ideas and create music right away.

Pads Built-in Pads: 9 (with LED Indicators)
* Two external trigger inputs are provided, allowing you to connect up to four Pads. Maximum Polyphony 20 voices
* Maximum polyphony becomes 16 voices according as an operating state. Number of Recordable Wave Data 10,000
* Including preload wave data. Sampling Time (Total time for all wave data) Approx. 25 hours of stereo audio (50 hours of mono)
* Since the internal memory included with the SPD-SX contains preloaded data, the available sampling time will be less than the time above. Data Format 16-bit linear PCM (WAV/AIFF) Sampling Frequency 44.1 kHz Kits 100 Kit Chain 8 chains (20 steps per chain) Effects Master Effects (21 Types)
Equalizer
Kit Effect 1 (20 Types)
Kit Effect 2 (20 Types) Display Graphic LCD 128 x 64 dots Connectors PHONES jack (Stereo 1/4-inch phone type)
MASTER OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
AUDIO IN jacks (L/MONO, R) (1/4-inch phone type) (with LINE-MIC GAIN control)
TRIG IN jacks (1/2, 3/4) (1/4-inch TRS phone type)
FOOT SW jack (1/2) (1/4-inch TRS phone type)
MIDI connectors (IN, OUT)
DC IN jack
COMPUTER connector
USB MEMORY connector Interface Hi-Speed USB (USB-MIDI, USB-AUDIO, USB Mass Storage Class, USB Flash Drive) Power Supply DC 9 V (AC Adaptor) Current Draw 600 mA Accessories CD-ROM (SPD-SX Wave Manager, USB driver, preload wave data)
Owner's Manual
AC Adaptor Options (sold separately) Pads (PD series, PDX series)
Cymbals (CY series)
Kick Triggers (KD series)
Pad Stand (PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
Pedal Switch (DP-2)
Footswitch (BOSS FS-5U, BOSS FS-6)
Personal Drum Monitor (PM-10, PM-30)
USB Flash Memory

* Use USB Flash Memory sold by Roland. We cannot guarantee operation if other products are used. Size and Weight Width 364 mm
14-3/8 inches Depth 331 mm
13-1/16 inches Height 94 mm
3-3/4 inches Weight 2.5 kg
5 lbs. 9 oz. 0 dBu = 0.775 Vrms
