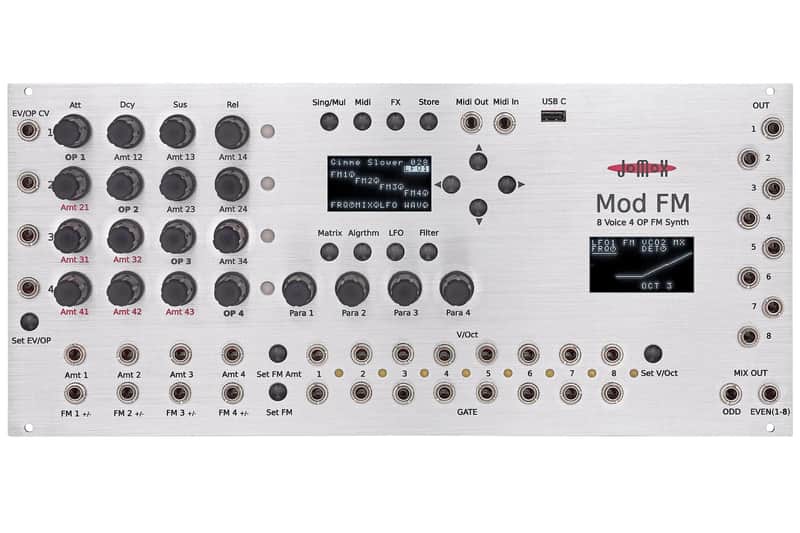

Jomox Mod FM – 8-Voice Eurorack FM Synthesizer
The Jomox Mod FM is a fully self-contained 8-voice FM synthesizer in Eurorack format. Combining a digital FM engine with true analog filters, VCAs, and modulation capabilities, the Mod FM bridges the gap between classic FM synthesis and analog warmth.
With 4 operators per voice, 2 LFOs/VCOs, and full multitimbrality, the Mod FM delivers everything from metallic FM tones to snappy techno percussion and lush, analog-style textures. Each voice is fully independent with its own CV/Gate inputs, dedicated output, analog filter, and VCA, making it one of the most flexible FM synths available in Eurorack.
Key Features
- 8 voices, each fully multitimbral
- 4 operators per voice with full modulation matrix (26 algorithms)
- ADSR envelopes per operator, frequency modes (key-tracked or fixed Hz)
- 2 LFOs per voice (64 waveforms), switchable into full audio-range VCOs
- Dedicated analog filters per voice (SSI2140 – modern SSM2040 design)
- 24 dB low-pass
- 12 dB multimode LP/BP/HP with continuous crossfade (shape)
- True analog VCAs per voice for snappy response
- Metal Noise generator for extra percussive/experimental textures
- FX engine: stereo reverb + 2x delay (syncable via MIDI clock; includes flanging-style micro delays)
- Matrix interface with 16 endless encoders + dual OLED displays for fast editing
Connectivity & Control
- CV/Gate per voice
- CV modulation inputs for each operator
- Dedicated outputs for each voice + stereo mix out (odd/even split)
- MIDI I/O (TRS Type A) and USB-C (MIDI over USB)
- Full storeability of sounds, including CV amounts
- 128 presets + 118 multi sets (multi mode = independent voices with individual sounds)
Specifications
- Sound Engine: Hybrid FM (digital operators + analog filters/VCAs)
- Operators: 4 per voice, arranged in full modulation matrix
- Algorithms: 26, derived from DX9 architecture
- LFOs/VCOs: 2 per voice, 64 waveforms, switchable to audio range
- Filters: SSI2140 per voice, 24 dB low-pass + 12 dB multimode
- Envelopes: ADSR for operators + filters
- FX: Stereo reverb, dual delay (MIDI-sync)
- Displays: 2× 128×64 OLED
- Presets: 128
- Multis: 118
- Power: +12V 370 mA / –12V 170 mA (≈ 6.5 W total)
Dimensions
- Width: 56 HP (≈ 284 mm)
- Height: 3U (≈ 129 mm)
- Depth: 40 mm
