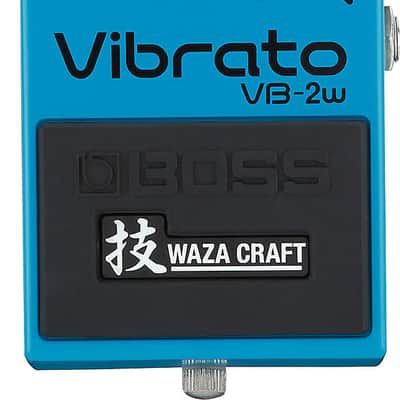

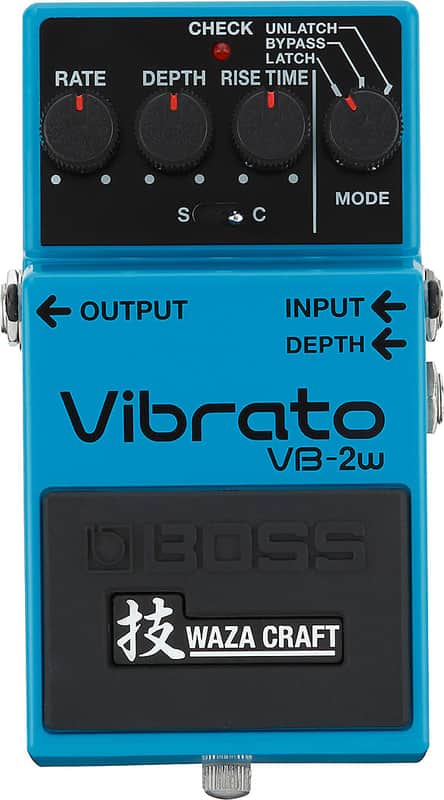

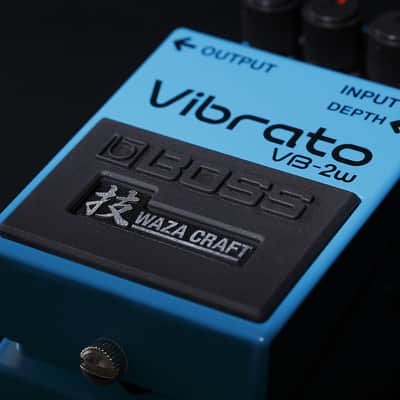

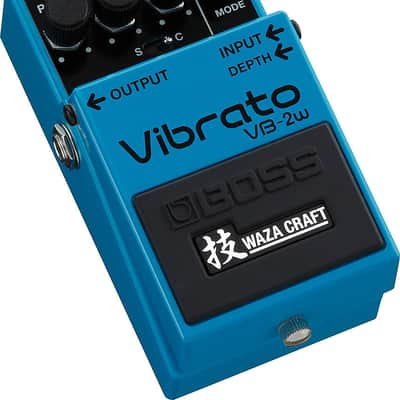

Boss VB-2W  Waza Craft Analog Vibrato Effect Pedal

True Vibrato Expression, Reborn with Waza Innovation

Ahead of its time when it debuted in 1982, the VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative mint vibrato mode and real-time control function for enhanced expression.

• Premium edition Waza Craft pedal delivers the ultimate BOSS tone experience
• Custom mode features a totally mint vibrato sound with unique filter wave
• Standard mode provides a true reproduction of the vintage VB-2 Vibrato sound
• All-analog circuit with BBD (bucket brigade) vibrato line
• Control the effect depth in real time with an optional expression pedal
• Rise Time knob to control the initial onset of the vibrato effect
• Unlatch mode activates the effect only while pressing the pedal, ideal for adding vibrato to specific notes and chords
• Bypass mode takes the BBD out of the signal path to eliminate latency when the effect is off
• BOSS five-year warranty

Waza Craft: The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the Waza Craft series. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. With final sound approval carried out by BOSS in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully selected analog components, refined circuitry, and meticulous attention to detail.

Specifications

Modes

    3 modes

    LATCH

    UNLATCH

    BYPASS

Nominal Input Level

    -20 dBu

Input Impedance

    1 M ohm

Nominal Output Level

    -20 dBu

Output Impedance

    1 k ohm

Recommended Load Impedance

    10 k ohms or greater

Bypass

    Buffered bypass

Controls

    Pedal switch

    Standard/Custom switch

    RATE knob

    DEPTH knob

    RISE TIME knob

    MODE knob

Indicator

    CHECK indicator (Serves also as battery check indicator)

Connectors

    INPUT jack

    OUTPUT jack

    DEPTH jack

    DC IN jack

Power Supply

    Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)

    AC adaptor (sold separately)

Current Draw

    35 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)

    Alkaline: Approx. 22 hours

    Carbon: Approx. 4 hours

Accessories

    Owner's Manual

    Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")

    Alkaline battery (9V, 6LR61)

Options (sold separately)

    AC adaptor: PSA series

    Expression Pedal: FV-500H, FV-500L, Roland EV-5

Size and Weight

Width

    73 mm

    2-7/8 inches

Depth

    129 mm

    5-1/8 inches

Height

    59 mm

    2-3/8 inches

Weight (including battery)

    450 g

    1 lb
