Mellotron Micro Module Ultra-Compact Digital Mellotron

Mellotron Micro Module Ultra-Compact Digital Mellotron

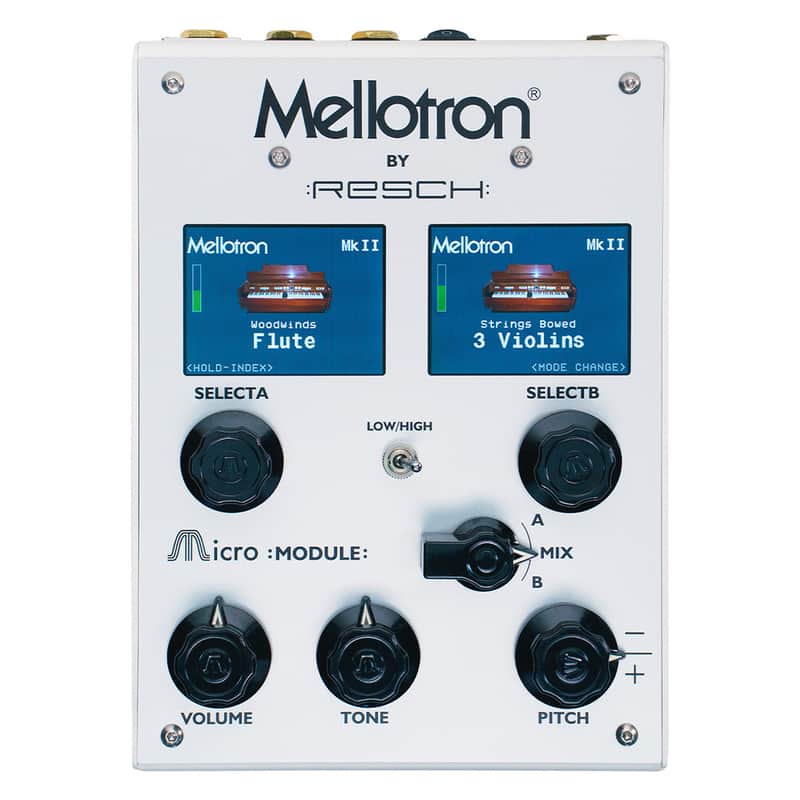

The Mellotron Micro Module is the smallest version available of the digital Mellotron, and includes many of the features of the Micro. It includes one hundred 24-bit uncompressed sounds sourced from original first-generation Mellotron and Chamberlin tape libraries. Sound Card 01 is the built-in library for the Micro and M4000D series of instruments. The Module includes a power supply, mains cable and a 3.5 mm to 5 pin male type "B" Midi cable.

The Micro Module basically is a Mellotron Micro without the keyboard. The only other differences are that the "Octave" switch is a High/Low switch on the Micro Module. It can be set to lower the playback speed of the samples by one or two octaves. Additionally the MIDI jacks are 3.5 mm, not 5-pin DIN (note: the "B" standard is used for the 3.5 mm jacks). It cannot be expanded with CF expansion cards, it is based on Micro SD storage.

MELLOTRON MICRO MODULE FEATURES:

• Sample playback engine with 24-bit audio data
• 100 Mellotron and Chamberlain sounds based on the original sound of the first generation from the 60s and 70s (Sound Card 01)
• Controller for high/low, volume, tone, pitch and A/B mix
• Two displays
• High/Low switch can be set to lower the playback speed of the samples by one or two octaves

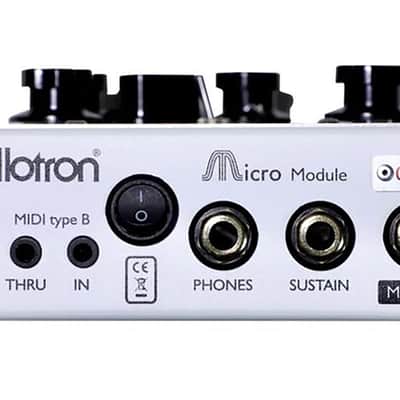

• 3.5 mm MIDI in and thru jacks
• MIDI mono aftertouch and polyphonic aftertouch
• Sustain pedal input
• 6.3 mm jack stereo headphone output 6.3 mm jack
• External power supply connection
• Updates via Updater app for iOS
