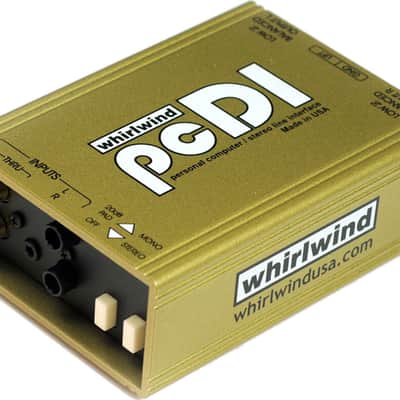

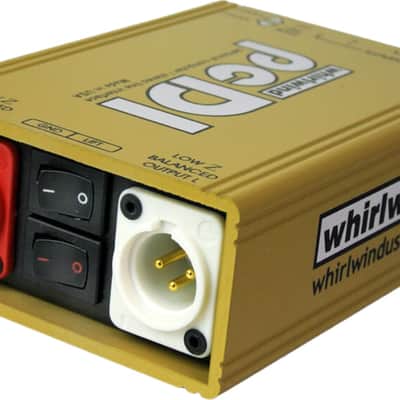

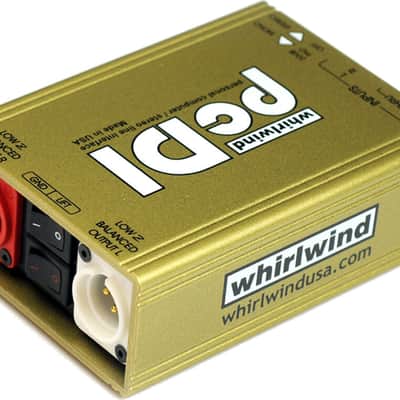

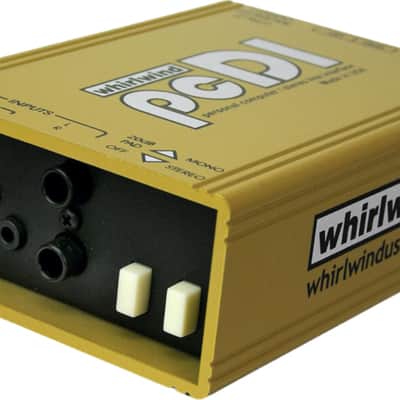

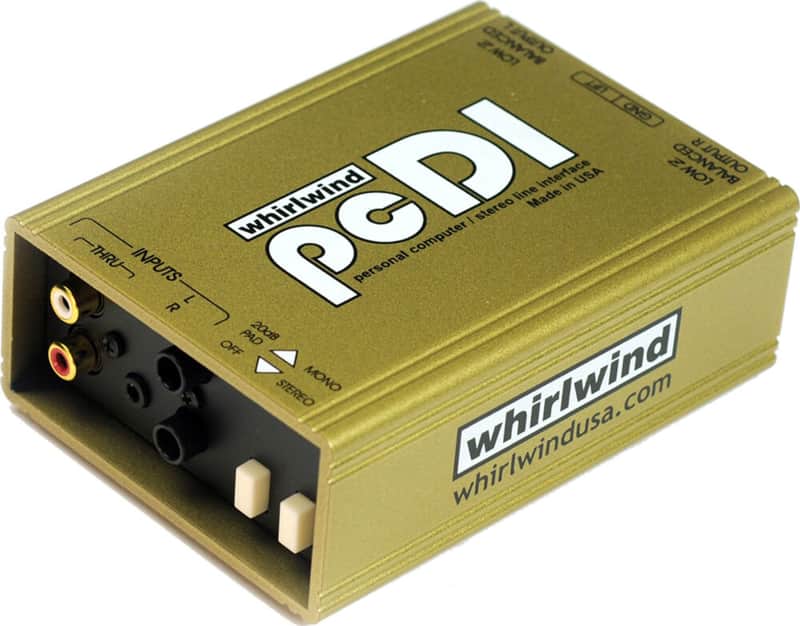

The pcDI from Whirlwind is a dual-channel direct box with RCA phono, 3.5mm TRS stereo, and 1/4" TS connectors, designed to interface unbalanced stereo line sources with professional, balanced low-impedance equipment. Output is via corresponding color-coded XLRs. The pcDI features a ground-lift switch per channel to help eliminate hum, a 20 dB pad switch for connecting "hot" signals and is perfect for interfacing the outputs of CD players, computer sound cards, MP3 players, etc. A stereo/mono switch allows for stereo operation or for combining both inputs into a mono signal that is sent to both outputs.

Product Features

• Color Coded RCA Phono In / Through Jacks
• Color Coded XLR Output Jacks
• Ground Lift Switch to Help Eliminate Hum and Buzz
• Stereo/Mono Switch for Stereo Operation or Safely Combine Both Inputs into a Mono Signal Sent to Both Outputs
• 20dB Pad Switch for Connection to "Hot" Input Signals
• Uses Whirlwind's TRHL-M Transformers with Metal Shield

Technical Specifications

• Features: Ground Lift
• Active/Passive: Passive
• # of Channels: 2
• Dimensions: 2" H x 6.9" W x 7.1" L
• Inputs: 2 x RCA, 1 x 1/8" TRS
• Outputs: 2 x XLR, 2 x RCA thru
• dB Pad: -20dB
