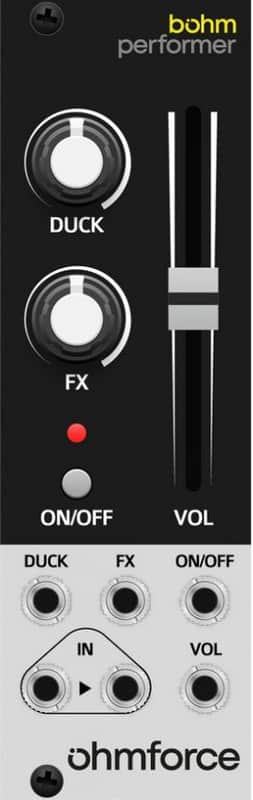

OHMFORCE BOHM PERFORMER : BRAND NEW : [DETROIT MODULAR]

Left expander

Bohm:Performer blends dual kick engines with external stereo input, offering precise side-chain ducking, intuitive one-touch DJ effects (filters, beat/slip rolls), and full CV assignability—empowering live performers with seamless, dynamic mix control.

One-Touch Performance Effects

FX - Selects and controls DJ-style processing—LP/HP filters, beat rolls, slip rolls—synced to your kick hits.

Routes effects to the kick only, the external input only, or both simultaneously.

ON/OFF - Toggles your chosen effect in perfect sync with each kick trigger.

Mix & Side-chain

IN - Feeds external stereo audio into the module for integrated processing with your kicks.

VOL - Balances the level of your dual kick voices against the incoming audio.

DUCK - Adjusts sidechain compression depth, letting your kicks cut through the mix.

Specifications: General

• Width: Performer 8HP
• Height: 3U
• Depth (including connectors): Performer 26mm

Power Consumption

• +12V: Performer 10mA
• -12V: Performer 5mA
• +5V: 0mA (unused)

Audio

• Sample rate: 48kHz
• Hardware audio converters bit-depth: 24-bit
• Internal processing bit-depth: 32-bit floating point
• True Stereo Audio
• High fidelity Texas Instruments Burr-Brown audio converters
• Latency: 0.33ms

Controls

• Knobs resolution: 16-bit (65536 distinct values)

CV Inputs

• Voltage: ±5V (0..5V compatible)
• Resolution: 16-bit (65536 distinct values)

Memory

• Current model, last model variations for up to 12 models
• 32 programs of 16 steps each
• Systems settings

SD Port

• Type: microSD, SDHC class 10 or greater
• Capacity: Up to 32GB
• Format: Only FAT32 with MBR (Master Boot Record) is supported

The SD port is used to update the module firmware, store the Bohm kick models as well as user-provided wavetables and samples.
