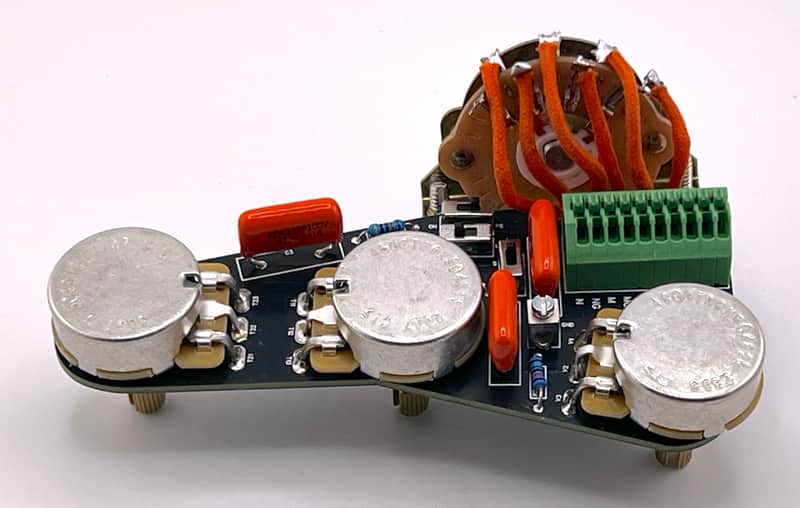

Calitone Strat HSS Solderless Wiring Harness with Auto Split and more

Unlock the full potential of your HSS Strat with this advanced solderless wiring harness. Designed specifically for humbucker–single–single configurations, this harness combines automatic coil-splitting, switchable treble-bleed circuits, tone control flexibility, and partial coil split options to give you a professional-grade tonal toolkit—without losing the classic Strat character.

** This harness requires humbucker to have 4-conductor wiring **

• 1 × 500k CTS Short Shaft Audio Taper Volume Pot

• 2 × 500k CTS Short Shaft Linear Taper Tone Pots

• Fender 5-Way Switch (with knob) – Reliable Strat-style pickup selection.

• Auto Coil Split:

  • Automatically splits the humbucker in position 2 for classic Strat “quack.”

• Balanced Split Coil

  • When the humbucker is autosplit, the single coil sees ~250k resistance for a warmer, not too harsh split tone.

• Switchable Treble Bleed Circuits (per pickup):

  • 1000pF / 150k Parallel Treble Bleed – smooth clarity.

  • 1000pF / 150k Series Treble Bleed – brighter, more pronounced response.

• Tone 1 Configuration Select:

  • Option 1

    • Tone 1: Neck & Middle, Tone 2: Bridge

  • Option 2

    • Tone 1: Neck, Tone 2: Middle

• Partial Coil Split Selection:

  • No Partial Split – standard coil split.

  • 7k Resistor Partial Split – retains more body and volume when splitting the bridge humbucker.

• Wiring: Vintage cloth push-back wire for authentic looks and durability.

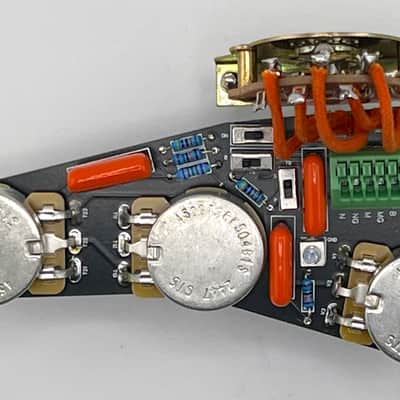

• Solderless PCB: Quick-connect board for pickups—no soldering required.

This harness is perfect for players who want their HSS Strat to cover everything from true single-coil sparkle to fat humbucker punch. With auto-split in position 2, you get classic Strat tones without volume drop, while the treble-bleed circuits and partial split options keep your sound balanced and versatile. Add in the flexible tone control switching, and you’ve got a Strat that adapts to any style—rock, blues, funk, or modern high-gain.

A complete modern upgrade for HSS players who demand both vintage feel and cutting-edge functionality.

Disclaimer: Some Stratocaster pickguards may require slight widening of the pot holes to fit full-size CTS pots. We recommend using a guitar tuner reamer for a clean and safe adjustment.

This product is a build-to-order product and can take 1 to 14 days to ship.
