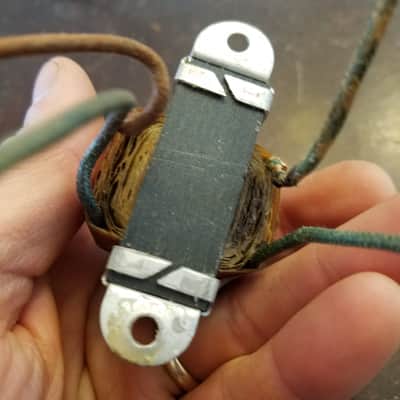

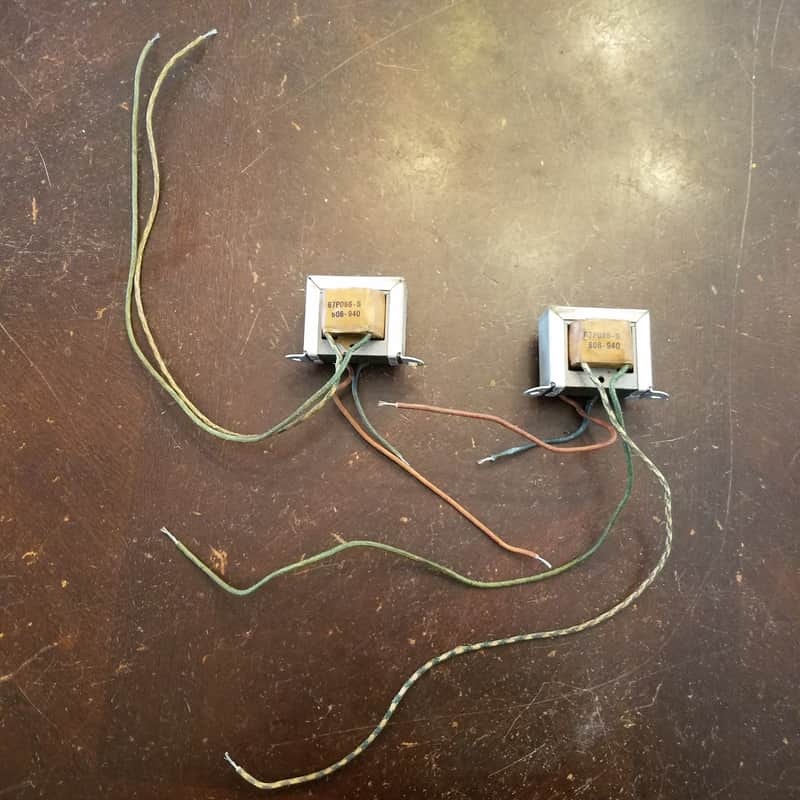

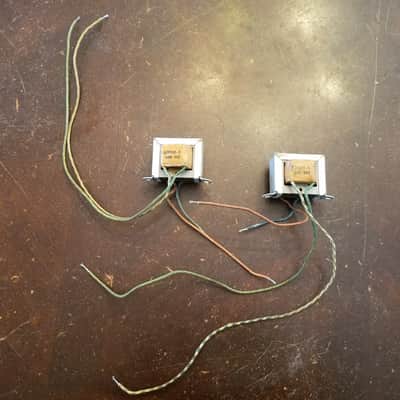

Woodward Schumacher 67P086-B EL84 3800 Ohm to 8 Ohm Webcor Vintage Output Transformer OT Tested 460:1 Tube Amp Audio 1959
Our users rate Reverb
One (1) fully 1.00 kHz AC tested and guaranteed vintage tube amp output transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in 1959 by Woodward-Schumacher for Webcor. IEA date code may vary, since this is a bulk listing of the OEM specification. Please offer $2 extra if you'd like us to poke through inventory to select a certain manufacturer or year. Otherwise, we'll grab the first one on the shelf. A typical IEA code for this model is 606940. Weighs 0 lbs 10 oz. Center-to-center bolt spacings 60 mm, and height of casing is 41 mm. Quantity sometimes available - please enquire.
This transformer was orignally used to connect a EL84 output tube to a 8 Ohm speaker.
Please see the image of an original schematic using this model, for one possible application!
Using a 12V_pp, 1.00 kHz input to the primary coil, we have verified these connections for this vintage transformer:
The turns ratio (pri:sec) is 21:1, leading to an impedance ratio for the main secondary coil of 460:1.
SKU O-W086B.
| Listed | 10 months ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Categories | |
| Year |
|
