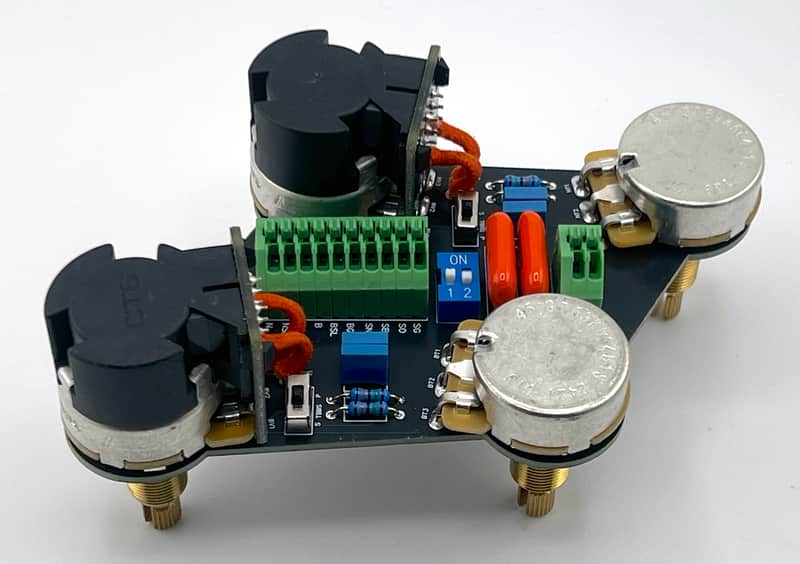

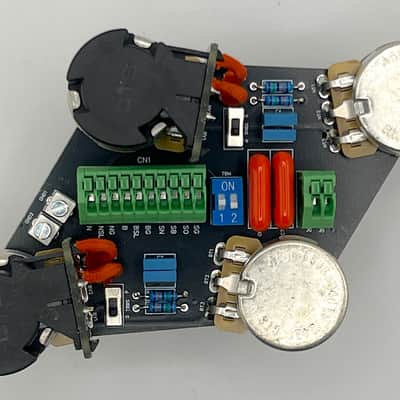

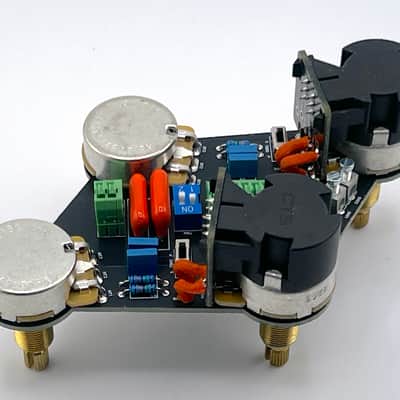

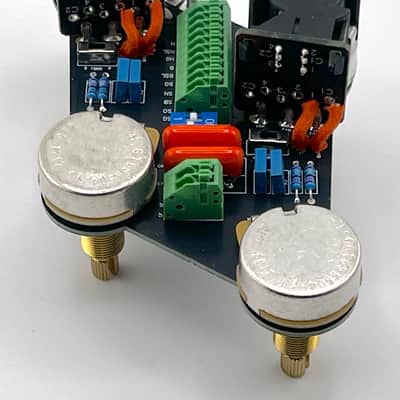

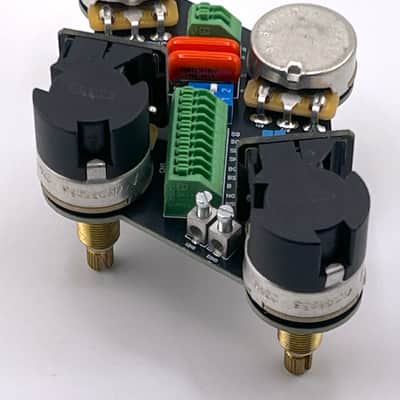

Les Paul Solderless with Volume Clarity Select & Coil Split

Upgrade your Les Paul with this solderless wiring harness featuring Volume Clarity controls, designed for players who want to maintain crisp highs and definition even as the volume rolls down. Built with premium CTS pots, Orange Drop capacitors, and vintage cloth wiring, this harness provides authentic Les Paul tone with added versatility—all in a solderless format for quick, clean installation.

• 2 × 500k CTS Long Shaft Audio Taper Push/Pull Volume Pots – Responsive, natural volume control with maximum clarity.

• • Bridge Volume (Pull): Splits the bridge humbucker.

  • Neck Volume (Pull): Splits the neck humbucker.

• 2 × 500k CTS Long Shaft Linear Taper Tone Pots – Authentic tonal sweep with precision response.

• Capacitors: 2 × 0.022µF Orange Drop (100V) – Warm, balanced vintage tone.

• Volume Clarity Select Per Pickup (Treble Bleed):

  • 1000pF / 150k Parallel – balanced, natural clarity. Volume taper is more gradual, like a linear pot.

  • 1000pF / 150k Series – brighter, cutting response. Volume Taper is more similar to an audio taper.

  • Off – pure vintage roll-off.

• Wiring: Vintage cloth push-back wire for durability and traditional aesthetics.

• Output Jack: CTS short mono jack for dependable performance.

• Basic Solderless PCB: Quick-connect design for pickups & switch—no soldering required.

• Fits Gibson or Epiphone Les Paul Only. For other imports, look at our flex fit harness.
• Pickups with 4-conductor wiring

• USA fine spline knobs.
• Toggle switch with 4 conductor wire. Vintage braided-wire switches may require soldering of the ground wire to the terminal block. We highly recommend purchasing our Switchcraft 3-way toggle.

This harness combines classic Les Paul tone with the flexibility of modern upgrades. The Volume Clarity feature ensures your guitar retains sparkle and definition at lower volume settings—perfect for players who ride the volume knob for dynamics. And with the ability to turn it on or off, you get the best of both worlds: vintage-correct wiring or enhanced clarity at the flip of a switch.

Disclaimer: Epiphone models may require widening the control holes to fit full-size CTS pots. We recommend using a guitar tuner reamer for a clean and safe modification.

This product is a build-to-order product and can take 1 to 14 days to ship.
