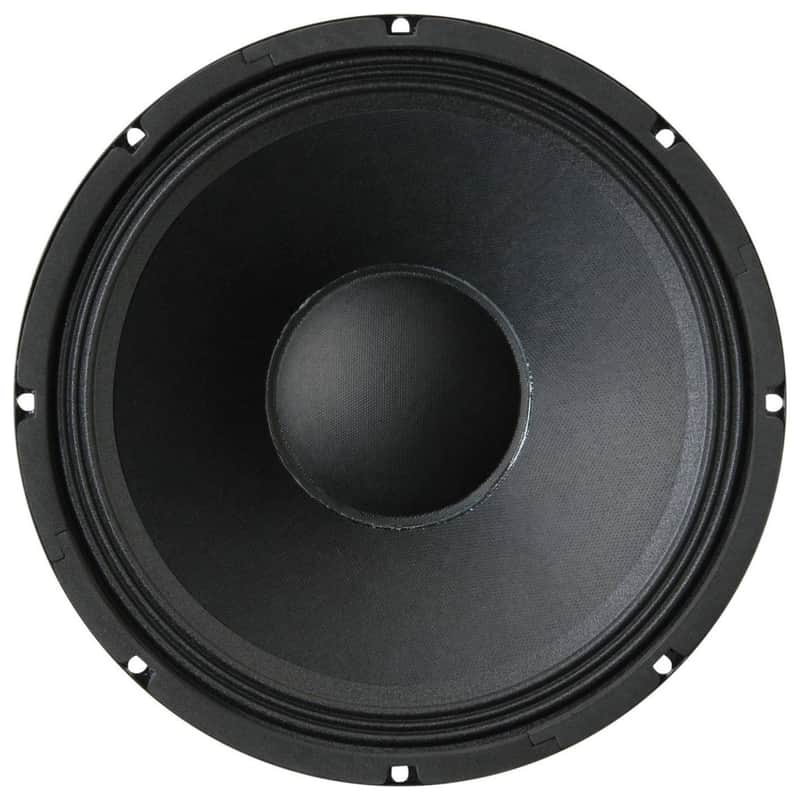

Peavey Pro 12 Low Frequency 12" Speaker Driver (8 Ohms)

Features

• Impedance: 8 Ohms
• Power capacity: 800 W Peak 400 W Program 200 W Continuous
• Sensitivity: 94.3 dB / 1 W 1 m
• Usable freq. range: 50 Hz ~ 4 kHz
• Cone: Kevlar® impregnated cellulose
• Voice coil diameter: 2.375" / 60.3 mm
• Voice coil material: 2 layers, thermally bonded copper wire Kapton former Nomex® stiffener
• Net weight lb. / kg: 9.7 lbs. / 4.4 kg
• Znom (ohms) 8
• Revc (ohms) 6.00
• Sd (Square Meters) 0.053
• BL (T/M) 12.36
• Fo (Hz) 48.4
• Vas (liters) 86.4
• Cms (uM/N) 219.7
• Mms (gm) 49.10
• Qms 3.84
• Qes 0.588
• Qts 0.510
• Xmax (mm) 2.5
• Le (mH) 0.72
• SPL (1W 1m) 94.3
• No (%) 1.73%
• Vd (cu. in. / ml) 16.2 / 266
• Pmax (Watts pgm.) 400
• Disp (cu. in. / ml) 73 / 1192
• 12"
• Packed Weight: 12.13 lb (5.5 kg)
• Packed Length: 14" (35.56 cm)
• Packed Width: 13.125" (33.34 cm)
• Packed Height: 6.75" (17.14 cm)
