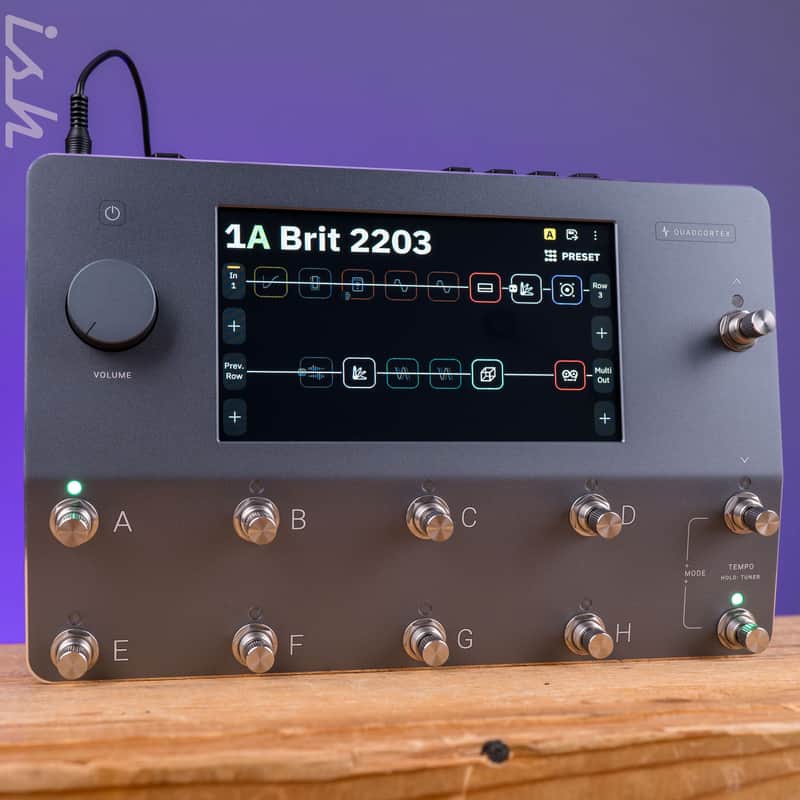

Neural DSP Quad Cortex Quad-Core Digital Effects Modeler

Neural DSP Quad Cortex Quad-Core Digital Effects Modeler

The Neural DSP Quad Cortex is the most powerful and versatile floorboard amp modeler available today. Powered by a 2 GHz Quad-Core SHARC DSP engine, it easily runs four independent amp chains, immersive stereo reverbs, and an array of effects without breaking a sweat. Packed with over 50 amp models, 70 effects, and 1,000+ IRs, you’ve got limitless tonal options at your fingertips. The 7″ multi-touch display and dual-mode rotary footswitches make signal path editing and performance control effortless, while the industry-leading Neural Capture™ profiling uses AI to recreate your favorite analog gear with sublime accuracy. Whether gigging or tracking, the Quad Cortex’s expansive I/O - including high-quality mic preamps, effects loops, balanced outputs, USB audio/MIDI, and Wi-Fi integration - offers impressive plug-and-play utility. Built rugged yet compact, in stamped aluminum with a reinforced glass touchscreen, this floorboard is engineered to travel and perform, establishing itself as a studio-grade tone machine in a road-ready package.

• Processing Power: 2 GHz Quad-Core SHARC DSP

• Amp Modeling & Effects:

  • 50+ amp models

  • 70+ effects

  • 1,000+ impulse responses (IRs)

• Neural Capture™: AI-powered profiling of amps, cabs, and pedals

• Display & Interface:

  • 7″ full-color multi-touch display

  • 11 rotary footswitches with LED rings (dual-function: stomp & parameter control)

• I/O Connectivity:

  • 2 × combo XLR/TRS inputs with mic preamps & phantom power

  • 2 × effects loops (send/return)

  • 2 × XLR main outputs

  • 2 × ¼″ TRS main outputs

  • 2 × ¼″ TRS monitor outputs

  • ¼″ headphone output

  • MIDI in/out/thru

  • 2 × expression pedal inputs

  • USB audio/MIDI interface (multi-channel)

• Wireless: Onboard Wi-Fi for updates, backups, and Cortex Cloud sharing

• Storage & Presets: Expandable preset storage with user IR support

• Construction: Rugged anodized aluminum chassis with 1.8 mm glass touchscreen cover

• Dimensions: 11.4″ × 6.5″ × 1.3″ (approx.)

• Weight: 4 lb (1.9 kg)
