Ecler WARM2 2-Channel Analog Rotary Mixer :121314108

The Ecler WARM2 2-channel analog rotary mixer is a meticulously crafted tool for DJs seeking a warm, rich sound and unparalleled control. Designed and manufactured in Barcelona, this mixer combines boutique analog circuitry with professional-grade features, making it ideal for nightclubs, DJ studios, and mobile performances. With its two phono/line channels, 3-band isolator EQ and Alps metal shaft potentiometers, the WARM2 delivers precise tonal sculpting and an elegant workflow. A standout feature is its analog subharmonic synthesizer, which reinforces ultralow frequencies for a powerful, immersive sound. Built with high-quality components and a sleek design, it's a reliable choice for discerning DJs.

3-Band Isolator EQ cor Precision Control

The WARM2's 3-band isolator EQ is engineered to offer DJs sharp, precise tonal shaping. With full-cut capabilities across 300Hz and 4kHz and a 4th-order 24dB/octave design, this EQ lets you seamlessly sculpt your mix. Whether you're enhancing bass frequencies for added depth or cutting mids for clarity, the isolator responds with accuracy and smooth transitions. This feature ensures DJs can craft dynamic mixes that resonate with power and clarity in any performance setting.

Analog Subharmonic Synthesizer for Ultralow Reinforcement

One of the WARM2's defining features is its analog subharmonic synthesizer. Selectable per channel, this tool generates and boosts ultralow frequencies, adding richness and impact to your mix. Perfect for DJs who want to emphasize bass-heavy genres or create immersive soundscapes, this synthesizer works seamlessly with the mixer's analog circuitry to deliver clean, powerful low-end tones. With this feature, DJs can command the room with deep, resonant bass that fills the space.

FX Routing and Monitoring

The WARM2 offers versatile FX routing and monitoring controls to integrate external effects into your mix. With FX send and return knobs, as well as pre/post fader selectors per channel, DJs can creatively manipulate their sound. Additionally, the mixer includes a headphone monitor output with both 6.3 mm and 3.5 mm connections, ensuring reliable cueing. These hands-on controls make it easy to add depth and dimension to your mix while maintaining precise monitoring.

Elegant Rotary DJ Mixer With Premium Components

Crafted for durability and aesthetic appeal, the WARM2 features an all-metal construction with machined aluminum knobs and wooden side panels. Alps metal shaft potentiometers provide smooth, reliable operation, while the mixer's deep black finish exudes sophistication. Designed for long-term performance, this mixer is ready to handle the rigors of regular use while maintaining its boutique quality. DJs can trust this model to perform consistently in both professional and mobile setups.

Built for DJs Seeking Warm Analog Sound

The Ecler WARM2 2-channel analog rotary mixer is tailored for DJs who value warm, rich tones and precise control. Its boutique analog circuitry, isolator EQ and subharmonic synthesizer make it a standout choice for crafting immersive performances. Whether you're spinning in a nightclub or setting up at a private event, this mixer delivers the sound quality and reliability you need to make an impact. Take your mixing to the next level with the Ecler WARM2.

Features

• Four mixing channels for versatile setups in DJ studios and performances
• Four phono inputs deliver rich analog sound for vinyl enthusiasts
• Master output on XLR and RCA ensures professional-grade audio connections
• 3-band isolator with full cut EQ offers precise sound sculpting
• Analog subharmonic synthesizer reinforces ultra-low frequencies for powerful bass
• FX send control with pre post fader selector adds creative flexibility
• Alps metal shaft potentiometers ensure durability for long-term use
• Headphone monitor output with dual jack options improves mixing convenience

SpecsType

• Professional Analog DJ Mixer

Inputs

• Line: 4 Stereo Unbalanced (RCA)
• Phono: 4 Stereo Unbalanced (RCA)
• Micro: 2 Mono Balanced (XLR3-F + Combo XLR3F/6.3mm TRS BAL)
• FX Return: 1 Stereo Unbalanced (RCA)

Input Sensitivity/Impedance

• Line: 0dBV/50 kohm
• Phono: –40dBV/50 kohm
• Micro: –50dBV/>1 kohm
• FX Return: 0dBV/>6 kohm

Audio Performance

Frequency Response

• Line: 10Hz–30kHz (–1dB)
• Micro: 10Hz–25kHz (–1dB)
• Phono: RIAA ±0.5dB
• FX Return: 10Hz–50kHz (–1dB)

THD+N

• Line:
  < 0.004%
  Micro: < 0.7%
  Phono: < 0.06%
  FX Return: < 0.001%
  CMRR (Micro): > 75dB @ 1kHz

Signal-to-Noise Ratio

• Line:
  >105dB
• Micro: >90dB
• Phono: >100dB
• FX Return: >110dB

Tone Controls

• Channels 1–4 Trim Control: ±15dB

3-band EQ

• Bass: +10/–30dB
• Mid: +10/–25dB
• Treble: +10/–30dB

Isolator EQ

• Bass: +12/–70dB
• Mid: +12/–40dB
• Treble: +12/–70dB

Filter Cutoff Points (–6dB @ 12dB/oct)

• Bass: 200Hz
• Mid: 200Hz–6.8kHz
• Treble: 6.8kHz

Isolator Cutoff (–6dB @ 24dB/oct)

• Bass: 300Hz
• Mid: 300Hz–4kHz
• Treble: 4kHz

Analog Subharmonic Synthesizer

• Input Filter: 50–120Hz
• Harmonics: 25–60Hz
• Max Output: +12dBV

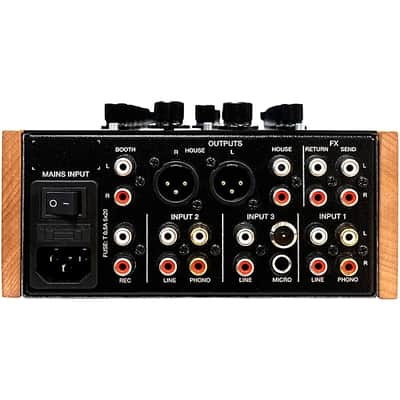

Outputs

• House: 1 Stereo Balanced (XLR), 1 Stereo Unbalanced (RCA)
• Booth: 1 Stereo Balanced (XLR), 1 Stereo Unbalanced (RCA)
• Headphones: 2 Stereo Unbalanced (6.3 mm & 3.5 mm jack)
• FX Send: 1 Stereo Unbalanced (RCA)
• REC: 1 Stereo Unbalanced (RCA)

Levels/Min Load

• House/Booth (BAL): 0dBV/600 ohm (max +12dB = 4 V)
• House/Booth (UNBAL): 0dBV/2.2 kohm (max +12dB = 4 V)
• REC: 0dBV/10 kohm
• Headphones: 200 mohm/200 ohm(THD 1%)
• FX Send: 0 dBV/2.2 kohm
• Max Undistorted Output (All Outs): 21dBV (23dBu)

Controls

• Mode: Rotary with Alps Blue Velvet & RK09L Potentiometers
• Phantom Power: 18 VDC/5 mA max (default ON)

Meters

• Input: 12-segment LED (–38dBV–+10dBV)
• House/Mix/Booth: 12-segment LED (–30dBV–+20dBV)
• Subharmonic: 3-segment LED (–20dBV/0dBV/+4dBV)

Power

• Power Supply: Internal
• Voltage: 90–264 VAC, 47–63Hz
• Connector: 15A IEC inlet
• Consumption: 39 VA

Construction

• Installation: Desktop or Rack-mount (optional accessories)
• Operating Temp: 23°F–113°F
• Humidity: 20%–90% RH (no condensation)
• Storage Temp: 14°F–122°F

Dimensions & Weight

• Dimensions: 13.39" x 3.19" x 14.65" (340 x 81 x 372 mm)
• Weight: 11.73 lb. (5.32 kg)
• Shipping Dimensions: 19.49" x 6.89" x 17.13" (495 x 175 x 435 mm)
• Shipping Weight: 14.86 lb. (6.74 kg)

Included Accessories

• EU IEC Cable
