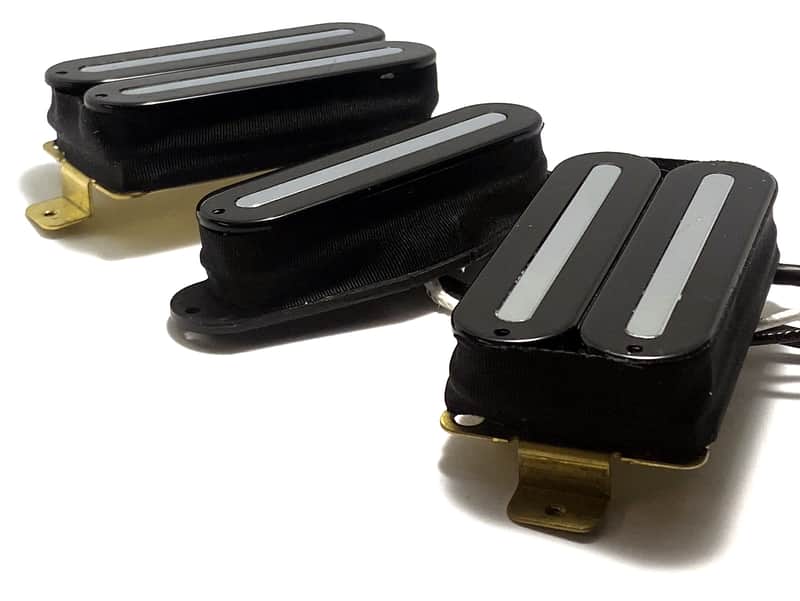

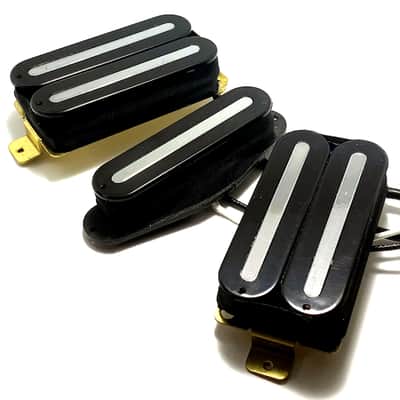

Dragonfire HSH Mixed Humbucker Single Humbucker Pickup Set ft. Phat Power Rails Bridge & Neck Humbuckers & Middle Single, Black with Chrome

Dragonfire Power Phat Rails HSH Set, Humbucker-Single-Humbucker Mixed Pickups Featuring Phat Power Rail Bridge & Neck Humbuckers + Phat Power Rail Single Middle Pickup ~ 6 String Passive Ceramic Pickup Set, Black with Chrome Rails

Check our Reverb Store for this set style in other configurations and colors. Contact us with any questions.

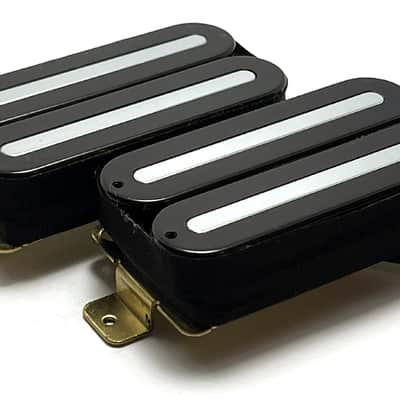

~~Bridge & Neck Pickup Information & Approximate Measurements~~

*Phat Power Rail Humbucker ft. Thick & Wide Double Power Rails

*Double Rails for Outstanding String Response

*4 Conductor Wiring (4 Wire Pickup Design)

*Output: Wound to ~15.8K (Bridge) & ~10.1K (Neck)

*Pickup Length: 68mm (84mm including mounting flanges)

*Rail Length: 55mm

*Pickup Width: 36mm

*Pickup Depth: 16mm (22mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Middle Pickup Information & Approximate Measurements~~

*Phat Power Rail Strat Single Coil Pickup

*Thick & Wide Rail Styling Response

*Wound for Modern Bass Response

*Great Mid-Range, Full & Authentic Sound

*2 Conductor Wiring (2 Wire Pickup Design)

*Output: Wound to ~8.1K

*56mm Rail Length

*Pickup Length: 68mm (81mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 18mm

*Mounting Screw Spacing: 76mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Pickups are wax potted for squeal reduction / avoidance – note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.

Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.
