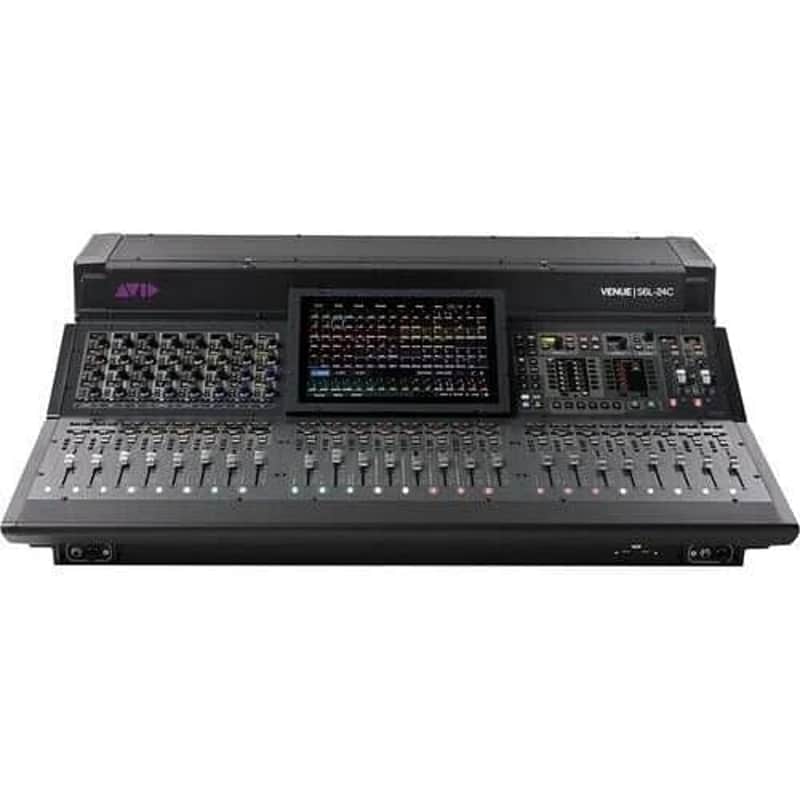

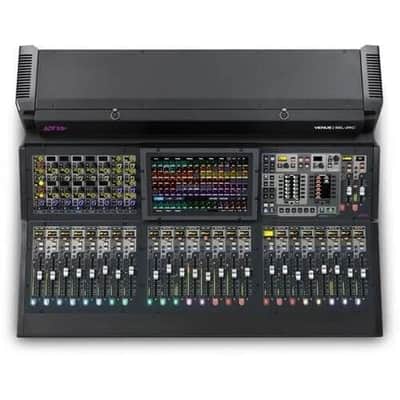

Avid S6L-24C CONTROL 24 Channel Control Surface Digital Mixing System

Avid S6L-24C CONTROL 24 Channel Control Surface Digital Mixing System

Get the same VENUE mixing efficiency in a more compact and affordable 24-fader control surface that’s ideal for tours, festivals, corporate events, and live sound installations. For smaller spaces and better portability, S6L-24C provides easy hands-on control and powerful performance in a more streamlined and affordable control surface.

Features:
24 channel faders across 3 Channel Fader Modules, plus 2 assignable faders in the Master Live Module
32 assignable channel knobs (encoders) across 1 Channel Knob Module
1 Master Touchscreen (central screen for quick navigation, parameter identification, and control, plus Channel and Meters view)
1 Master Live Module (provides control over global system parameters, such as channel banking, snapshots, and monitoring)
Local analog I/O, digital I/O, and ancillary I/O, including ECx for remote control and DVI for connecting an external monitor (sold separately) for VENUE software display

Specifications:
12-inch daylight-visible touchscreens: 1 Master Touchscreen
Faders: 24 + 2
Knob Modules with high-resolution OLEDs and tri-color function indicators: 32 assignable knobs across 1 Channel Knob Module
Master Live Module: Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons
Metering: 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters
Analog inputs: 8 XLR mic/line inputs with 48V and signal present LEDs
Analog outputs: 8 XLR outputs with mute and signal present LEDs
Digital inputs: 4 pairs of XLR stereo AES/EBU (8 channels total)
Digital outputs: 4 pairs of XLR stereo AES/EBU (8 channels total)
Headphone outputs: 2 independent 1/4" TRS stereo headphone jacks
Ancillary I/O: DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O
Ethernet AVB ports: 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration
Power supply: Dual redundant, internal
Height (front, rear): 3.6, 8 inches (91, 205 mm)
Width: 38.9 inches (989 mm)
Depth: 31 inches (787 mm)
Weight: 84 lbs (38 kg)
