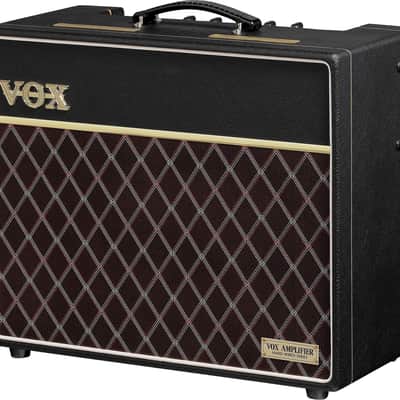

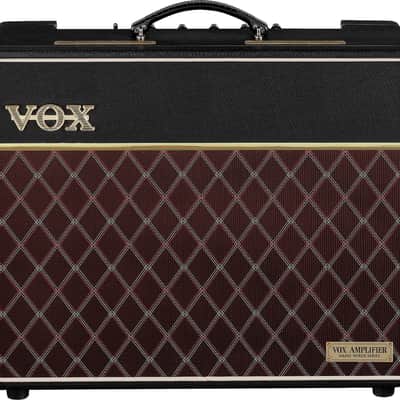

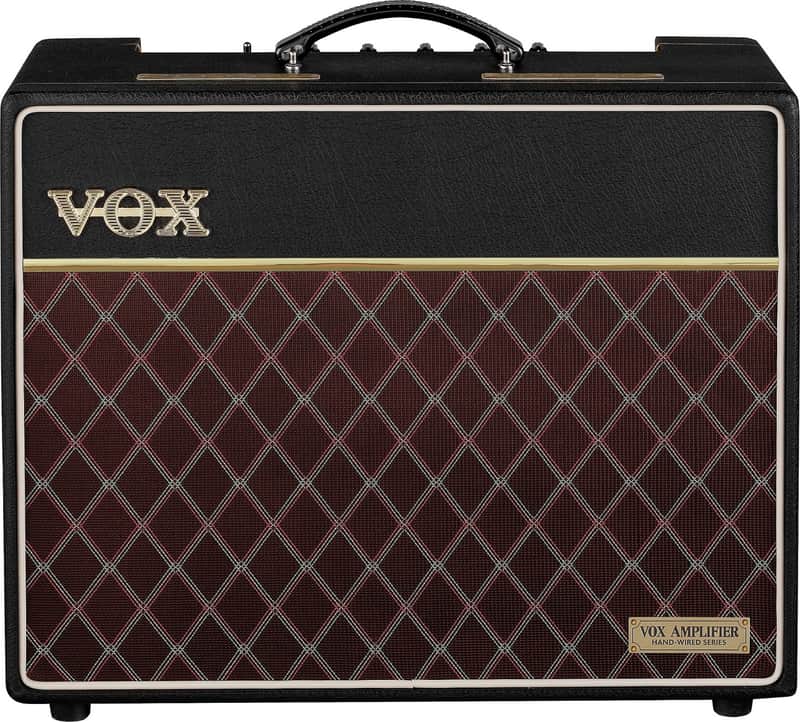

In the search for the essence of the classic vintage AC30 amp sound, VOX conducted a detailed analysis and study on mint condition AC15 and AC30s from the 1960s to truly uncover and understand the inner workings of these legendary amplifiers. The culmination of these efforts has resulted in the emergence of the new VOX AC Hand-Wired Range of amplifiers: the greatest VOX amps we have ever produced. The rarity of vintage amplifiers contributes significantly to their high value, but equally impactful is the distinctive sound inherent in vintage amps. Despite the AC30 being manufactured with nearly identical circuitry since the 1960s, the character of vintage units is often described as being almost beyond description, possessing a rich and musical quality that is equally unmistakable and mysterious. They aimed to unravel the secrets of this sound, bringing the vintage magic to the musicians of today. The AC-HWR series reproduces the vintage VOX tone through meticulous research. A diverse lineup caters to the individual preferences and needs of discerning guitarists. The series includes the AC10HWR1 compact combo amp, designed for lower output use.

Product Features

• Handwired in the Vintage Vox Tradition Utilizing Turret Board Wiring and Top-Quality Components
• Custom Output Transformer Ensures Rich Harmonics and Classic VOX Saturation
• 12" Celestion G12M Greenback Speaker Offers Legendary Tone and Clarity
• Vintage-Style Power Supply Recreates Iconic Compression and Sag Characteristics
• Integrated FX Loop Ensures Pristine Signal for Modulation and Spatial Effects
• High-Quality Spring Reverb Adds Immersive Depth and Vintage Amp Ambiance
• Thinner Cabinet Materials Enhance Midrange Richness for Expansive Tonal Response
• Hand-Wired Construction Provides Unmatched Precision and Timeless Sound Quality

Attributes

• Color: Black
• Power Tube: EL84
• Total Power: Up to 20W

Technical Specifications

• Type: Tube
• Amp Type: Combo Amp
• # of Channels: 1
• Wattage: 10W
• Dimensions: 21.61" H x 24.02" W x 14.96" D
• Weight: 44.66lbs
• Power Tubes: 2 x EL84
• Preamp Tubes: 2 x 12AX7

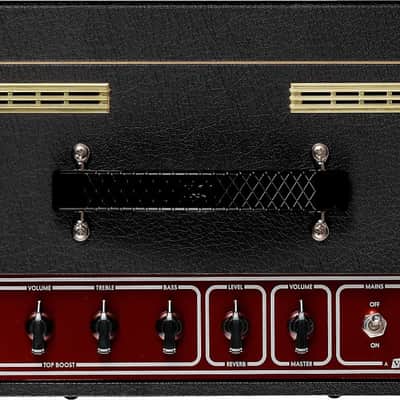

• EQ: 2-Band EQ
• Inputs: 2 x 1/4" (High, Low)
• Power Source: Standard IEC AC Cable
• Construction Material: Vintage-Inspired Thin Wood Design
• Speaker Configuration: 1x12"
• Speakers: 1 x 12" Celestion G12M Greenback Speaker
• Effects: Reverb
