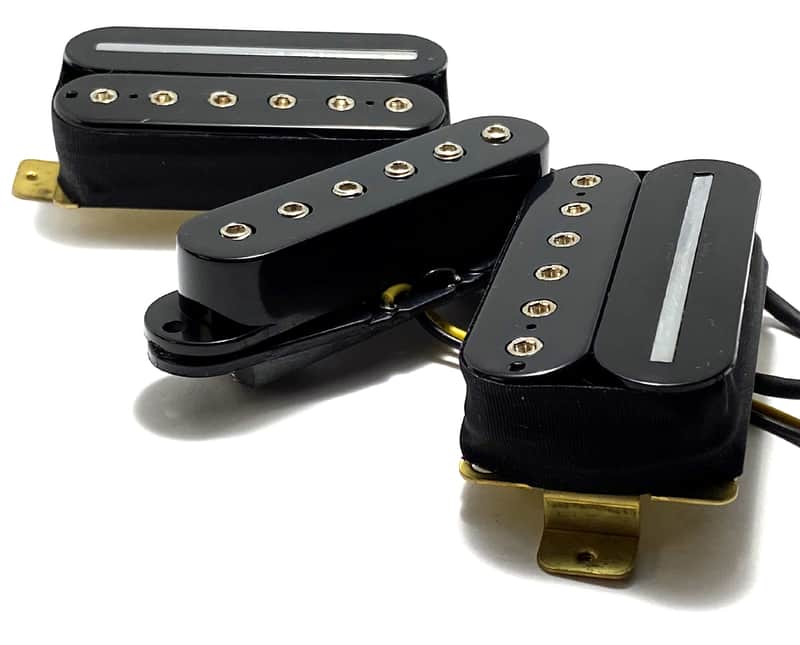

Dragonfire Hex Rail HSH Pickup Set, Hex Rail Humbucker Bridge & Neck + Hex Single Middle

Dragonfire Hex Rail HSH Set, Humbucker-Single-Humbucker Mixed Pickups Featuring Hex Rail Bridge & Neck Humbuckers + Hex Single Coil Middle Pickup ~ 6 String Passive Ceramic Set ~ Black with Chrome

Check our Reverb Store for this pickup style available in other set styles and colors. Contact us if you have any questions.

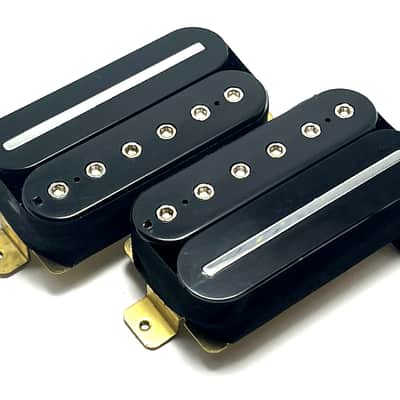

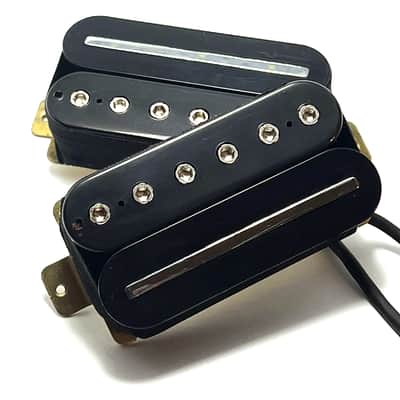

~~Bridge & Neck Pickup Information & Approximate Measurements~~

*Hex Rail Humbucker Half Rail + Half Hex Screw Poles

*4 Conductor Wiring (4 Wire Pickup Design)

*Unique Appearance w/ Dynamic Modern Performance

*Approximate Output: Wound to ~14.8K (Bridge) & ~9.2K (Neck)

*Pickup Length: 68mm (85mm including mounting flanges)

*Rail Length: 57mm

*Pickup Width: 36mm

*Pickup Depth: 18mm (22mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Middle Pickup Information & Approximate Measurements~~

*Hex Single Featuring Hex Screw Poles

*Dual Ceramic Bar Magnet Strat Single Coil Styling for Enhanced Response

*2 Conductor Wiring (2 Wire Pickup Design)

*Output: Wound to ~5.3K

*52mm Standard String Spacing

*Pickup Length: 69mm (82mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 24mm

*Mounting Screw Spacing: 76mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Dragonfire pickups are wax potted for squeal reduction / avoidance. Note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.

Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.
