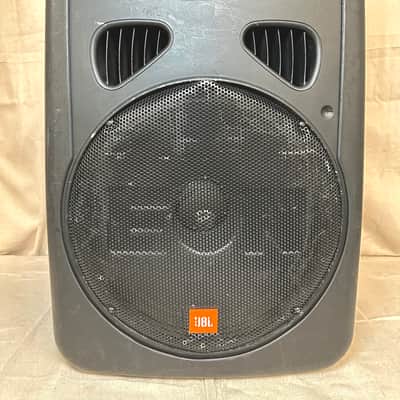

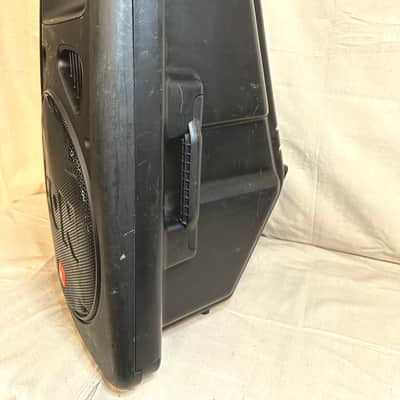

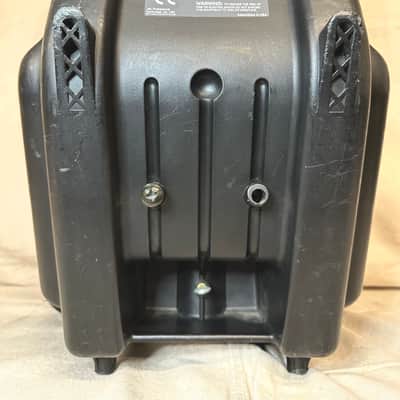

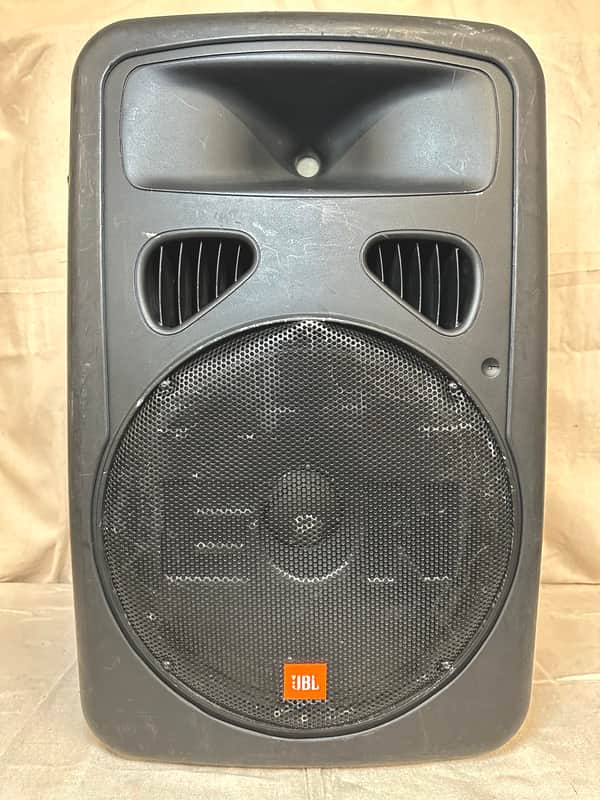

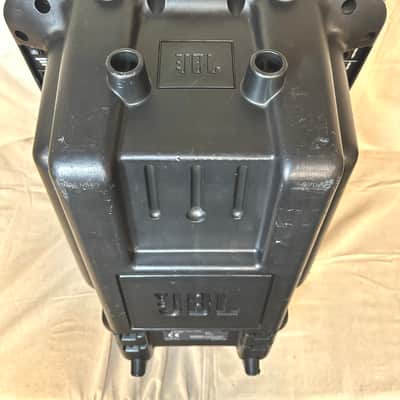

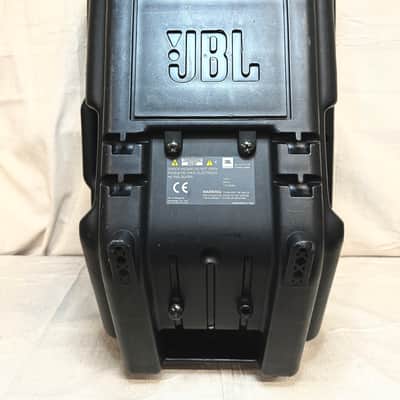

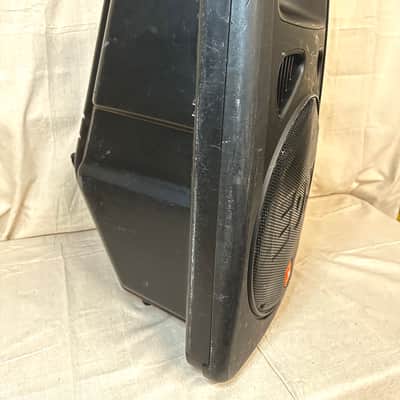

JBL EON 15 G2 2008 Black

*fully refurbished and tested*

The flagship of the new series is the JBL EON15 G2, delivering 300 watts of power to a 15" neodymium Differential Drive LF driver. The driver boasts a dual neodymium magnet and dual voice coil motor that efficiently delivers high output from a lightweight woofer. Meanwhile, the HF amplifier delivers 100 watts of power to a 1.75" titanium diaphragm compression driver with Ferro-fluid cooling.

Specifications

• Frequency Range (-10 dB): 39 Hz - 18 kHz
• Frequency Response: 42 Hz - 17 kHz
• Dimensions (H x W x D): 686 mm x 430 mm x 444 mm (27 in x 17 in x 17.5 in.)
• Net Weight: 21 kg (46 lbs.)
• LF Driver: Integral frame with one 15" (380 mm) driver, dual neodymium magnet, 2" differential drive voice-coil.
• HF Driver: JBL 2418H-1 1" (throat diameter) compression driver with 1.75" diameter titanium diaphragm. Ferro-fluid cooled.
• Amplifier Power LF: 300 watts @ low-frequency driver impedance.
• Amplifier Power HF: 100 watts @ high-frequency driver impedance.

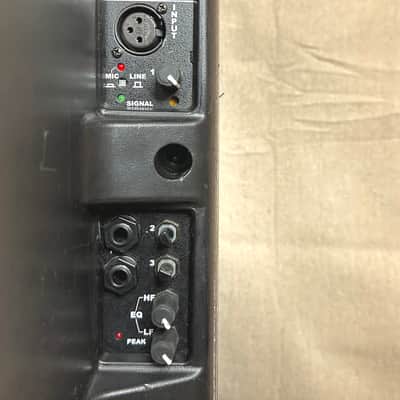

• Input 1 Sensitivity: -44 dBu to -22 dBu for rated output (Mic/Line switch in MIC position). -12 dBu to 20 dBu for rated output (Mic/Line switch in LINE position).
• Input 2 & 3 Sensitivity: -18 dBu to 20 dBu for rated output.
• Output Level: 20 dBu (peak), Loop/Mix switch in MIX position.
• Connectors: XLR/F, balanced, ¼" Phone, balanced (TRS).
• Crossover Frequency: 1.5 kHz
• Limiting: Low frequency amplifier controlled by dynamic filter.
• Loop/Mix Out: XLR/M, balanced
• EQ: High Frequency Shelving, +-15 dB @ 5 kHz Low Frequency Shelving, +-15 dB @ 120 Hz

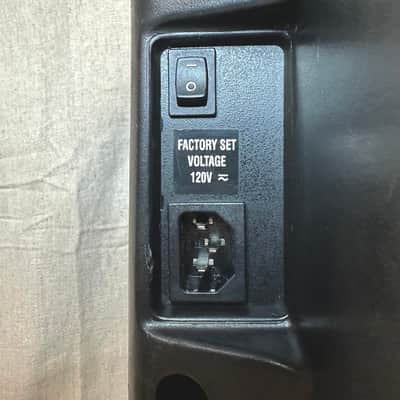

• AC Input: 110 - 230 VAC, 50 - 60 Hz., 175 watts rating per UL, detachable IEC power cable.
