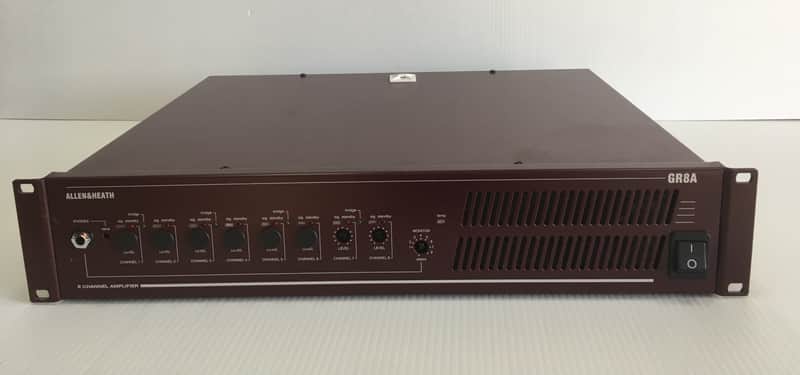

ALLEN & HEATH MODEL GR8A 8 CHANNEL AMPLIFIER 8 X 60 WATTS MADE IN UK

->This GR8A has been tested in our workshops
->Includes Owner’s manual
->Includes Power Cord
->Of course, due to their age, there are scratches here and there, See the photos
->Shipping prices can vary depending on where you are in America
->All our equipment is shipped in boxes with double protection

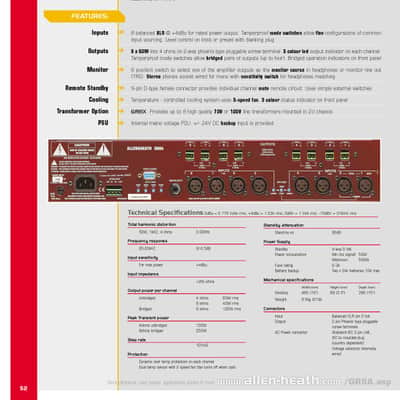

TECHNICAL SPECIFICATION;

Inputs – Inputs 8 balanced XLR @ +4dBu for rated power output. Tamperproof mode switches allow five configurations of common input sourcing. Level control on knob or preset with blanking plug

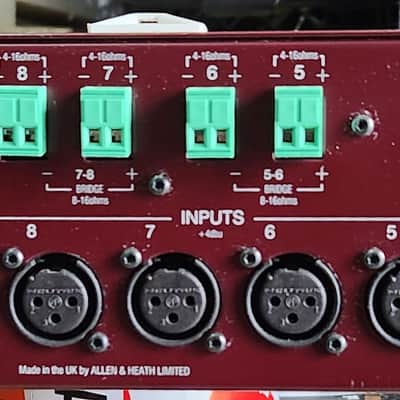

Outputs – 8 x 60W into 4 ohms on 2-way phoenix type pluggable screw terminal. 3 colour led output indicator on each channel. Tamperproof mode switches allow bridged pairs of outputs [up to four]. Bridged operation indicators on front panel

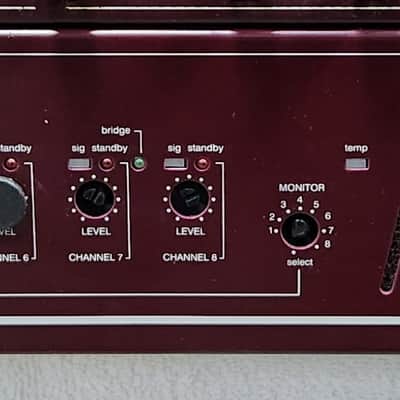

Monitor – 8 position switch to select one of the amplifier outputs as the monitor source in headphones or monitor line out [TRS]. Stereo phones socket wired for mono with sensitivity switch for headphones matching

Remote Standby – 9-pin D-type female connector provides individual channel mute remote circuit. Uses simple external switches

Cooling – Temperature – controlled cooling system uses 3-speed fan. 3 colour status indicator on front panel

Transformer Option – GR8X. Provides up to 8 high quality 70V or 100V line transformers mounted in 2U chassis

PSU – Internal mains voltage PSU. +/- 24V DC backup input is provided
