Pye PX2 Transformer Interface DI Box 2025

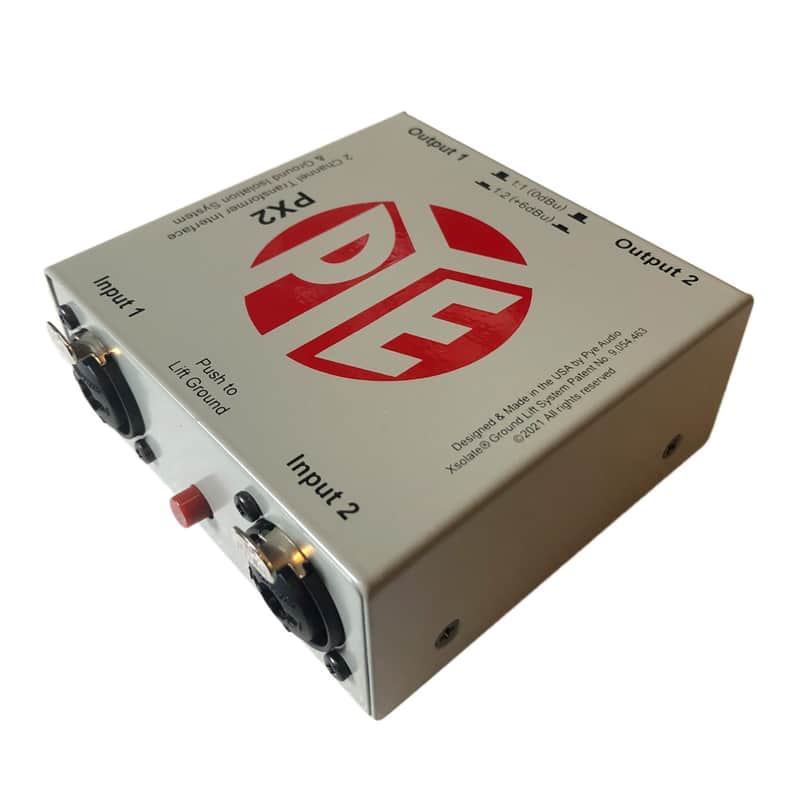

The PYE PX2 is a 2-channel transformer interface and ground isolation system. It provides transformer isolation between two grounded systems and safely breaks potential ground loops. Selectable ratio for either zero gain or +6dBu of passive gain to improve signal-to-noise and impart a touch of transformer coloration.

FEATURES:

– Balanced Neturik XLR / TRS combo inputs, and XLR output
– Can be used balanced or unbalanced

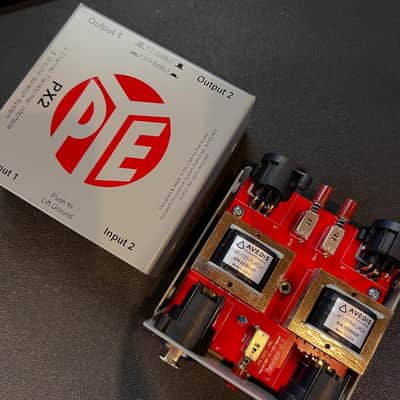

– Uses two individual high quality audio transformers with outstanding specifications
– Patented Xsolate® ground lift system breaks ground loop noise (Pat.#9,054,463)
– Ratio selectable for 1:1 (0dBu) or step-up 1:2 (+6dBu)
– A necessity for recording studios, outdoor venues, sound stages, and multimedia conferences
– Steel construction
– Lower bolt attachment (4-40 size) for rack shelf mount

USES:

– Balance any unbalanced electronic instrument, like the output of a keyboard or synth. Run a short unbalanced TS cable into the PX2 from the instrument, and take the XLR balanced output into live sound mixer or studio equipment

– Great for amp-less digital electric guitar pedalboard system.(ToneX, UAFX Amp simulator pedals, Walrus Audio)

– Protect multi-effects unit from the phantom power and add transformer coloration(Quad Cortex, Fractal Audio, Headrush, Line6)

– Safely break ground loop noise between two systems
– Use it for transformer coloration

SPECIFICATIONS:

Frequency response – 1Hz to 100kHz (+/-1dB)
Distortion (THD) – 0.025% at 20Hz +4dBu
Maximum output level – +20dBu at 20Hz with 1% THD
Input Impedance – Reflective of secondary load
Deviation of Linear Phase – Less than 1 degree from 20Hz – 20Khz
Common-mode rejection ration (CMRR) – 105dB at 60Hz
Breakdown voltages – 250V RMS winding to winding at 60Hz
Dimensions – 3.6” x 4” x 1.5″
Weight – 1lb 3oz
