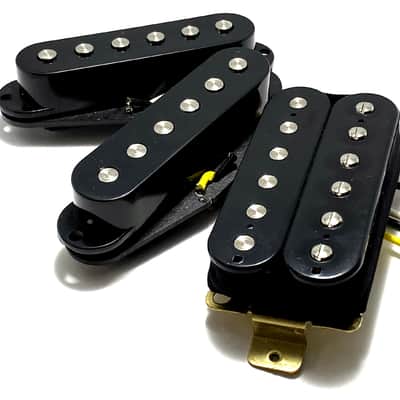

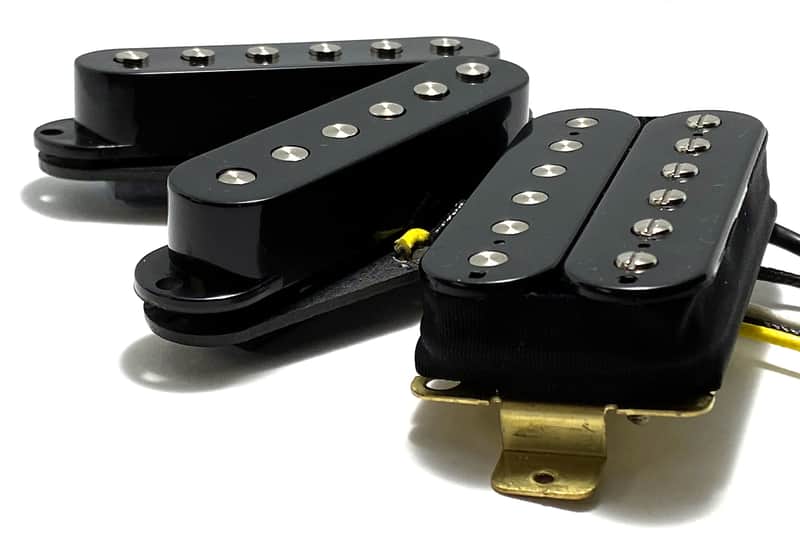

Mod Noiseless HSS Pickup Set, Passive Ceramic Modern Humbucker Bridge + Noiseless Strat Middle & Neck Pickups

Dragonfire Mod Noiseless HSS Mixed Set, Humbucker-Single-Single Pickups Featuring Mod Bucker Bridge Humbucker + Mod Noiseless Strat Single Middle & Neck Pickups, Modern Performance 6 String Passive Ceramic Set ~ Black

Check our Reverb Store for this pickup style available in other sets and colors including green, orange, pink, purple, red, teal, white, zebra and other options. Contact us if you have any questions.

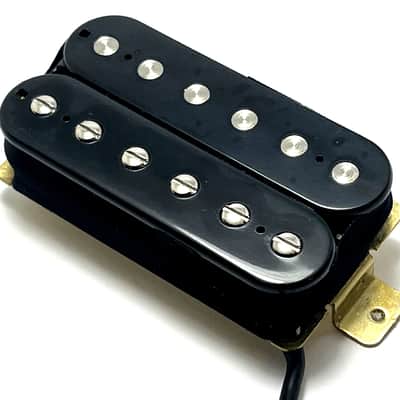

~~Bridge Pickup Information & Approximate Measurements~~

*Mod Bucker w/ Exposed Polepieces (1/2 Slug & ½ Screw Style)

*Classic Appearance w/ Updated Modern Performance

*4 Conductor Wiring (4 Wire Pickup Design)

*Polepiece Spacing: 52mm

*Output: Wound to ~11.2K

*Pickup Length: 68mm (84mm including mounting flanges)

*Pickup Width: 36mm

*Pickup Depth: 18mm (22mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Middle & Neck Pickup Information & Approximate Measurements~~

*Mod Noiseless Flat Top Slug Style Non-Staggered Poles

*Single Coil Noise Free Performance

*Modern Tone Play & No 60-Cycle Hum

*2 Conductor Wiring (2 Wire Pickup Design)

*52mm Standard Pole Spacing

*Pickup Length: 69mm (82mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 17mm (22mm including mounting flanges)

*Mounting Screw Spacing: 76mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Along with the specialized noiseless design for these pickups, Dragonfire Pickups are also wax potted for squeal reduction / avoidance. Note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.
