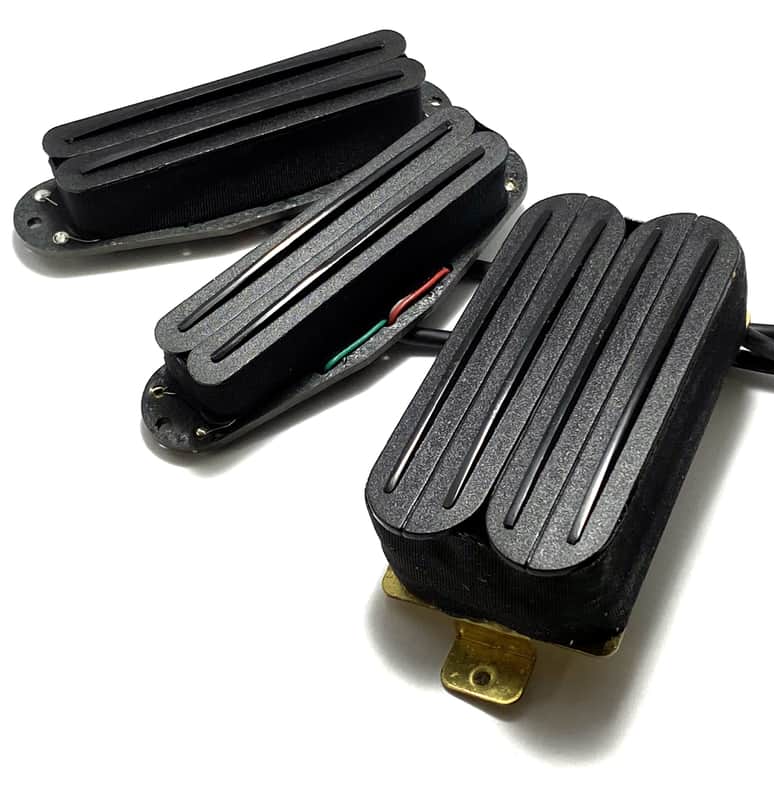

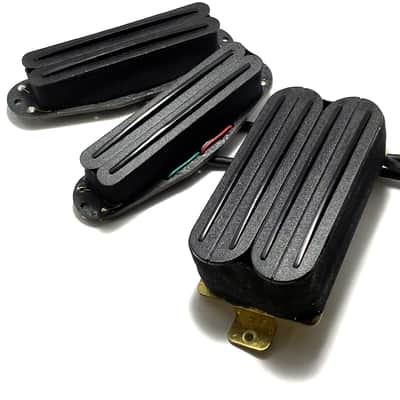

DFHR Rails HSS Pickup Set, Super-Hot Humbucker Rail Bridge Middle & Neck SH Set, Black

Dragonfire DFHR Rails HSS Set, Humbucker-Single-Single Mixed Pickups Featuring Quad Rails Bridge Humbucker + Duo Rail Strat Sized Middle Humbucker + Duo Rail Strat Sized Neck Humbucker ~ 6 String Passive Ceramic Set, Black with Black Rails

Check our Reverb Store for this pickup set style available in other pickup & rail colors including black with black, black with chrome, black with gold, blue with black, green with black, orange with black, pink with black, purple with black, red with black, teal with black, white with black, white with chrome, yellow with black, zebra cream black and zebra white black with black. Contact us if you have any questions.

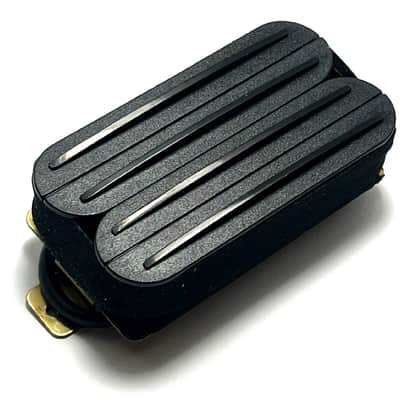

~~Bridge Pickup Information & Approximate Measurements~~

*Quad Rails Four Blade Rail Humbucker

*Overwound Hot Performance to Outperform, Dominate & Deliver

*Thin / Blade Duo Rail Style (Two Raised Profile Rails Per Bobbin, Four Total)

*4 Conductor Wiring (4 Wire Pickup Design)

*Output: Wound to ~23K

*Pickup Length: 68mm (84mm including mounting flanges)

*Rail Length: 58mm

*Pickup Width: 37mm

*Pickup Depth (incl. rails): 22mm (28mm incl. flanges)

*Mounting Screw Spacing: 78mm

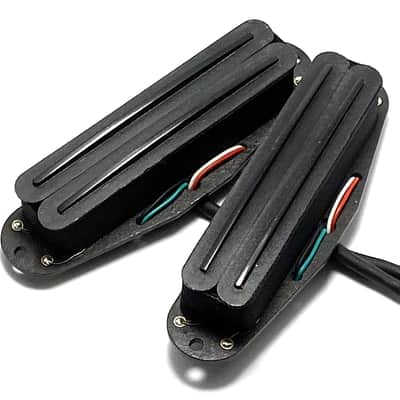

~~Middle & Neck Pickup Information & Approximate Measurements~~

*Duo Rail Strat Sized Humbuckers ~ Full Coverage Playing Response

*Humbucking Performance in Strat Single Coil Size

*Thin Dual Blade Rails, Raised Profile Rail Style (Two Rails Per Pickup)

*Hot Wound with Dynamic Bass Response & Clear Highs

*4 Conductor Wiring (4 Wire Pickup Design)

*Output: Wound to ~12.0K

*Rail Length: 58mm

*Pickup Length: 67mm (82mm including mounting flanges)

*Pickup Width: 17mm

*Pickup Depth: 19mm (21mm including rail)

*Mounting Screw Spacing: 76mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Note that noise and interference can come from sources other than your pickup. Dragonfire pickups are wax potted for squeal reduction / avoidance.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Please ask any questions prior to purchase. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.
