Light-weight Strat-Arctic White Solid Mahogany+ Matched Custom Pickups + Working Bridge Tone+Treble Bleed+Low Action+ Ebony Neck+Low Wide Jumbo Dressed and Polished Frets +Full Low Action Setup!

Haywire Custom Guitars X-light guitar. It's a very light guitar for musicians with long gigs requiring constant stage presence. This guitar will be a comfort because it's so light. Haywire Custom Guitars builds very light guitars for musicians. As a musician you need this guitar for long gigs requiring constant stage presence for hours. Haywire Custom Guitars super-light guitar, feather light, and X-Light guitars will be a comfort in that they are so super-light it will help eliminate back and shoulder pain. It makes it a pleasure for musicians to work all night on the job playing guitar pain-free. The weight is 7 lbs.

Strat-Arctic White Solid Mahogany Lightweight+ Matched Custom Pickups + Working Bridge Tone +Treble Bleed +Low Action+ Ebony Neck +Low Wide Jumbo Dressed and Polished Frets +Full Low Action Setup!

Guitar Description:

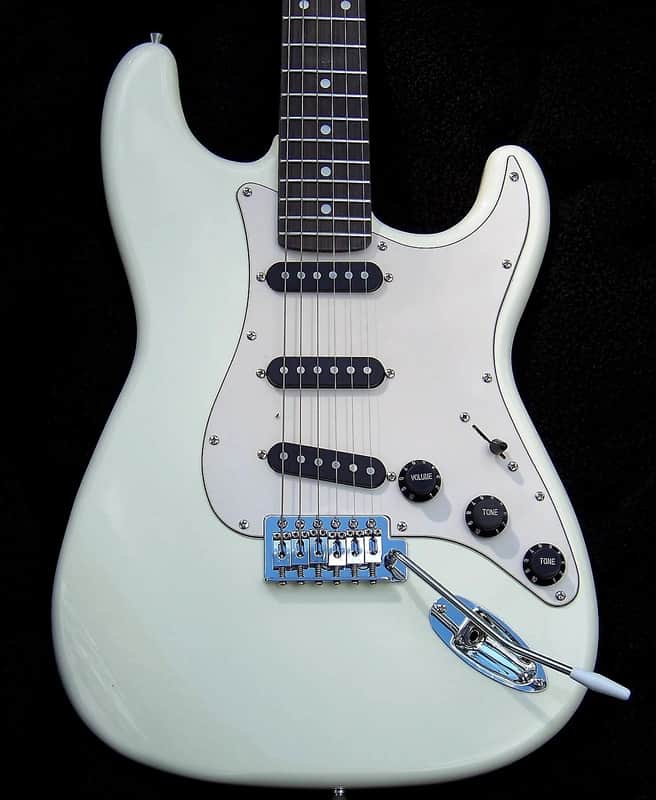

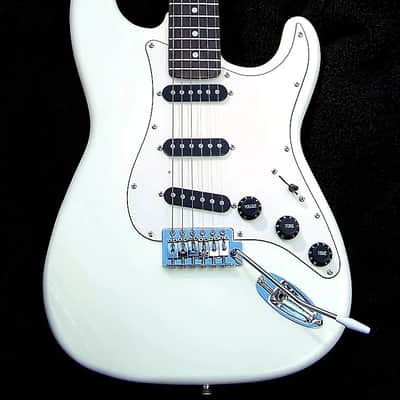

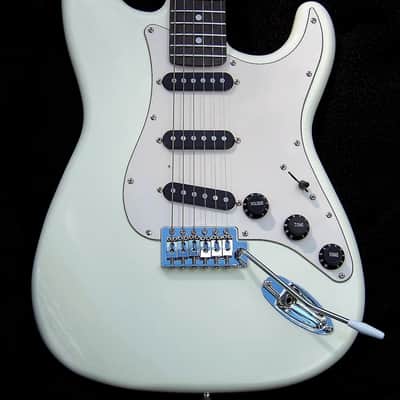

Solid "Mahogany" Strat with lots of resonance. Completed this year by Haywire Custom Shop USA-South Carolina. Matched Custom Pickups on the bridge, middle and neck positions and Aged Parchment guard. The weight of the guitar only is 6.9lbs.
 Custom Neck Profile: Low Wide Jumbo Frets

• Thickness at 1st Fret: .850"
• Thickness at 12th Fret: .90"
• Nut width 1.65 inches (42 mm)

Includes all NEW: Hardware, Parchment Guard, New Jack, Knobs + New electronics, Neck plate and Strap Knobs and Screws included.

5-Way Switch pickup selections:
position 1 pickup on the Bridge pickup alone

position 2 bridge + middle pickup in parallel

position 3 middle pickup alone
position 4 middle + neck pickup in parallel
position 5 neck pickup alone
              Buyers please note: All new electronics and hardware including Parchment guard, SRV Pickups, Tremolo bridge + 1 Vol +2 Tone Controls, strap knobs, screws, input jack, all wiring and back plate have been added free of charge.

We hear you.

                                    THIS GUITAR HAS A WORKING BRIDGE TONE CONTROL!

In 99% of Fender Stratocaster guitars the tone control doesn't work for the bridge-only pickup selection of the Stratocaster.

It works on a few, approximately 1% of Stratocaster guitars whether made by Fender or by Squier, or Affinity, Fender Japan, Fender Taiwan, Fender Mexico, American (circa 1991) or Fender China and more have no tone control on the bridge pickup. The tone controls do work for the other four switch positions.

                                                          Why?

It was just a design that was only meant to please the inventor, Mr. Leo Fender. Leo wanted a pickup position that sounded similar to a steel guitar. So now in Fender guitars the bridge pickup selection has no tone control wired to it whatsoever and no one at Fender Corp. has seemed to notice. They have failed for years to hear what guitarists have been asking for.

Can we simply have a tone control on our bridge pickup?
YES-Your Bridge tone control is now here.

From the Haywire Custom Guitars-Custom Shop

Why is the Treble Bleed Circuit included?

Turning the volume control applies varying amounts of a specially tuned high frequency filter to the pickups. Now each pickup has the ability to produce a stronger, fuller tone and 50% less noise. This variable treble bleed circuit is preinstalled. The variable treble bleed/bypass circuit corrects the problem of high frequency losses common in Strats and Teles. It provides auto-adjustment of tone at reduced volumes and improves audio taper between 3 and 10. Now the tone is crisp, clear and articulate all the way down to 1.

                                                                                 Question?
                                                    With The Treble Bleed modification installed:
                                                                           How does it work?

Answer-It allows you to roll off your volume without losing the highs.
Would you like being able to use the volume control... without sacrificing tone?
Now You Can... with a Treble Bleed Circuit Mod added on this guitar!

As you turn your guitar's volume down, the pot allows some of the current to go to ground as opposed to the output.

The frequencies that leave first are the highs, which leave the tone muddy and obscured without an "edge" on it to a discerning ear.

                                So....., you can now avoid this problem with the installed: Haywire Treble Bleed Circuit

                     NOW......When you lower your guitar's Volume control take notice if you lose your tone's clarity.

If your tone is now muddy & with too much bass, adding a Treble Bleed Circuit to your Volume Control Pot, your guitar will "Bleed" in more Treble as you turn your volume down.  Now you have much cleaner, articulate tones when rolling down the volume control.

This feature allows the treble frequencies to be re-introduced into the output for clarity and improved timbre and no loss of highs for you. At Haywire we simply install a TB Circuit capacitor. We build them in our custom guitars for a better Low and High sound spectrum:

1-error-correction of signals with enhanced clarity

2- preserve high end frequencies

3-improved taper when rolling back your volume control

Note: More about this Treble Bleed Circuit Mod on the Haywire Custom Guitars Website
Specifications:

• THIS Body routed for HSH configuration, which is able to accept universal pickup settings and various pick guard styles with different cutouts.
• The body underneath the pick guard is the part of the guitar that is routed. this body is routed for HSH configuration, and able to accept universal pickup choices and various pick guard styles with different cutouts. For example, if you want a S-S-H, or H-S-S, S-S-S, H-H and S-H configurations. The body rout already cut, will accommodate all of these configs. All that is necessary is to decide which pickup configuration, then add the pickups to a guard to accommodate the pickup selection YOU need. Then drop back into your guitar with 3 perfectly fitting pickup slots.
• (Haywire Custom Guitars offers custom guitars made to their customer's specifications. The guitars are made with upgraded components at a reasonable price. They also offer custom guitar neck replacements, installations and custom guitar neck contours.) "Building satisfied players one Haywire Custom guitar at a time!" Great Tone and Sustain with lots of resonance.
• Body Wood: Solid Mahogany

• Finish: Artic White
• Scale Length: 25-1/2" (648mm)
• Neck Pocket Size: 2-3/16" (55.55mm) Width x 3"(76.2mm) Length x 5/8"(15.88mm) Depth
• Neck Mounting Hole Dimension: standard 51mm x 38mm
• Neck mounting holes and wire path are drilled already.
• Routed for HSH pickup configuration, which is able to accept universal pickup settings.
• For Pick-Ups the ohms are:
  DC Resistance: 8.10K - Special Strat Bridge Pickup
  DC Resistance: 7.58K Special Strat Neck Pickup
  DC Resistance: 7.04K    Special Strat middle Pickup
• Buyers please note: All electronics and hardware including Pick guard, SRV Pickups, Tremolo bridge + 1 Vol +2 Tone Controls, strap knobs, screws, input jack, all wiring and back plate have been added free of charge.
• Buyers please note: Haywire Custom Guitars offers custom guitars made to their customer's specifications if you have any questions, concerns or special requests then please ask before purchase. We are a Custom Shop featuring many custom options for players. Haywire guitars are made in South Carolina at a reasonable price just for players. We also offer custom guitar neck replacements, installations and custom guitar neck shaving. "Building satisfied players one Haywire Custom guitar at a time!" Great Tone and Sustain with lots of resonance.
• Our electronics, pickguards and pilot holes are added free of charge on used bodies, however if you have any specific electronic requirements, please ask prior to purchase.
• We have our own house brand SRV pickups, but we have access to anything our customers need. We want you to be happy so please let us know exactly what you want before buying.
