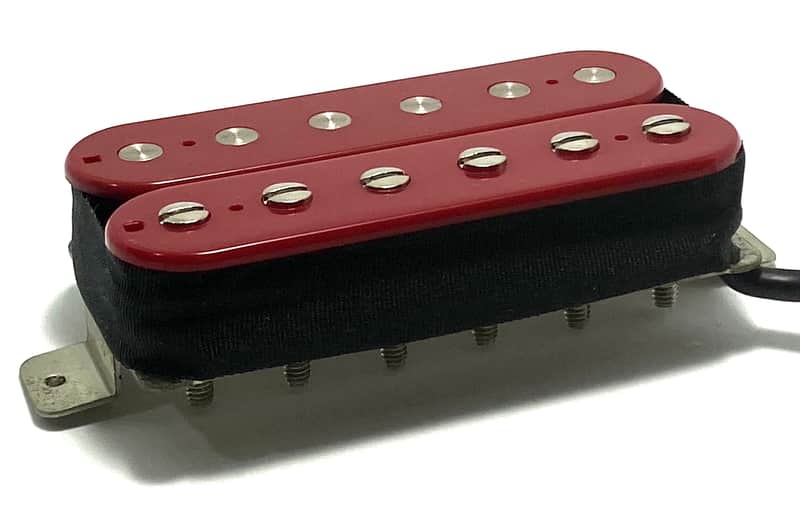

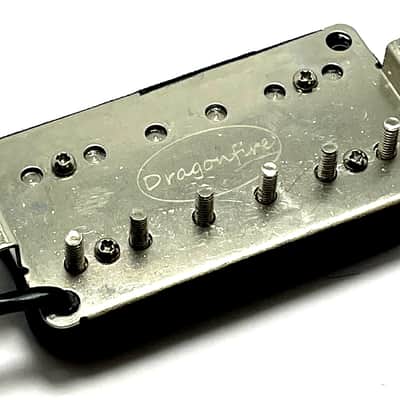

A5 Bucker ~ Bridge Position AlNiCo V Pickup, Classic Feel, Fresh Modern Hot Performance ~ Red

Dragonfire A5 Bucker, Bridge Pickup AlNiCo V Passive Style ~ Red, 1 qty Bridge Position Humbucker Pickup

Dragonfire A5 Buckers are passive pickups offering a classic look with modern hot performance. With AlNiCo warmth and attitude, A5 Buckers can provide you with strong bass along with sturdy highs for plenty of attack and coherence in everything from Blues to Classic Rock. These humbuckers are an excellent choice for an LP tone style with a bit more bite.

Check our Reverb Store for this pickup style available as a set for savings and convenience or for other individual bridge or neck pickup colors including black, blue, green, orange, pink, purple, red, teal, white, zebra cream black and zebra white black. Contact us if you have any questions.

~~Product Highlights~~
*6 String Passive A5 Humbucker Pickup Style
*6 Flat Top / Slug Style Exposed Polepieces
*6 Adjustable Screw Exposed Polepieces
*Uncovered Open Coil Bobbin Style
*Alnico 5 / Alnico V Bar Magnet Type
*4 Conductor Wiring (4 Wire Pickup Design)
*Coil Split Capable & Phase Reversible
*Hot Wound for Classic Performance
*Wax Potted for Squeal Reduction
*Standard Style Short Mounting Legs
*Standard Insulated Lead Wire (Modern Stranded Style)
*Pickup Mounting Screws & Springs Included
*500K Pots & 0.047 Tone Caps Recommended

~~Approximate Measurements~~
*Polepiece Spacing: 52mm
*Approximate Output: Wound to ~16.9K
*Pickup Length: 68mm (84mm including mounting flanges)
*Pickup Width: 37mm
*Pickup Depth: 16mm (22mm including mounting flanges)
*Mounting Screw Spacing: 78mm

~~Installation Information~~

The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these 4-wire pickups. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Dragonfire pickups are wax potted for squeal reduction / avoidance – note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.

Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.
