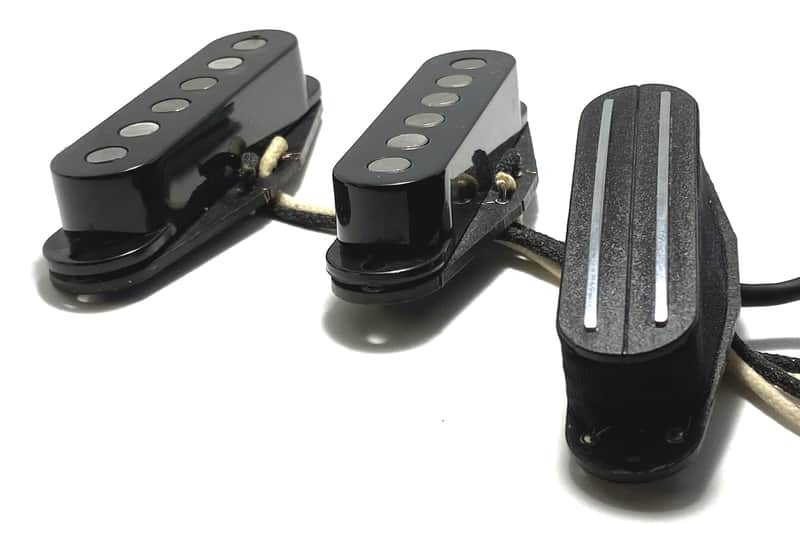

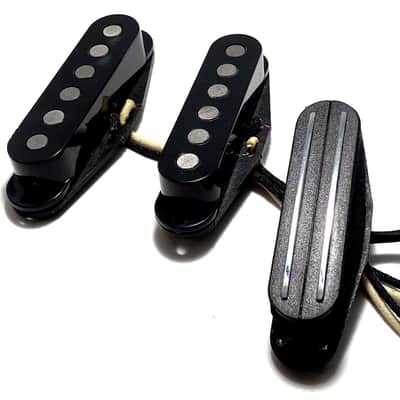

AlNiCo Phat Single + AlNiCo Rail SSS Bridge, Middle & Neck Pickup Set, AR5 Rail Strat Sized Humbucker + Middle & Neck Phat Strat Single Coils

Dragonfire Phat AlNiCo Rails SSS Mixed Set Featuring AlNiCo V (A5) Magnet Style, 6 String Passive Strat Pickup Set ~ Black with Chrome

Bridge: AR5 Strat Sized Humbucker + Middle & Neck: Phat AlNiCo Strat Single Coils

Wax Potted for Squeal Reduction / Avoidance ~ Pickup Mounting Screws & Springs Included

Check our Reverb Store for this set style in other colors ~ Contact us with any questions ~ Thanks for shopping!

~~AR5 Strat Sized Humbucker Pickup Information~~

*AlNiCo 5 Double Rail Strat Sized Humbucker

*Steady Dynamic & Enhanced Presentation

*Humbucking Performance in Strat Single Coil Size

*Dual Blade Rails ~ Full Coverage Playing Response

*AlNiCo V (A5) Magnet Style ~ Quality Sound Execution

*4 Conductor Wiring (4 Wire Pickup Design)

*Full Encompassing Bobbin ~ Tighter Fit Slot Style

*Output: Wound to ~11.8K

*Rail Length: 59mm

*Pickup Length: 70mm (83mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 19mm (22mm including rail)

*Mounting Screw Spacing: 76mm

These pickups are on the beefy side for Strat sizing and might provide a tight fit for import guards. Check the measurements provided; some light filing and careful installation may be required depending on your guard. Let us know if you have any questions.

~~Phat AlNiCo Single Pickup Information~~

*Strat Singles, Passive AlNiCo 5 Single Coil Strat Pickup

*Flat Top Oversized 6.5mm Slug Style Non-Staggered Poles

*Modern A5 Wound for Great Mid-Range & Warmth

*Matched 52mm Pole Spacing

*2 Conductor Wiring (2 Wire Pickup Design)

*Output: Wound to ~5.3K

*52mm Standard String Spacing

*Pickup Length: 69mm (81mm including mounting flanges)

*Pickup Width: 17mm

*Pickup Depth: 17mm

*Mounting Screw Spacing: 76mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Dragonfire pickups are wax potted for squeal reduction / avoidance – note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.

Please contact us with any questions regarding additional color or other pickup options, measurements, installation requirements, special requests, or anything else prior to purchase. Thanks for shopping!
