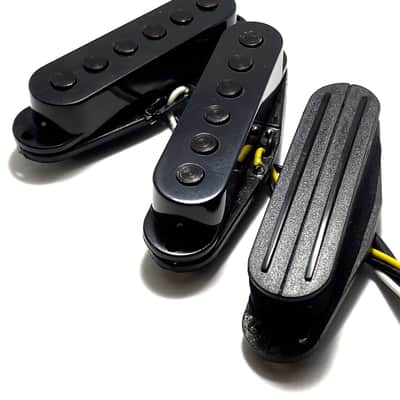

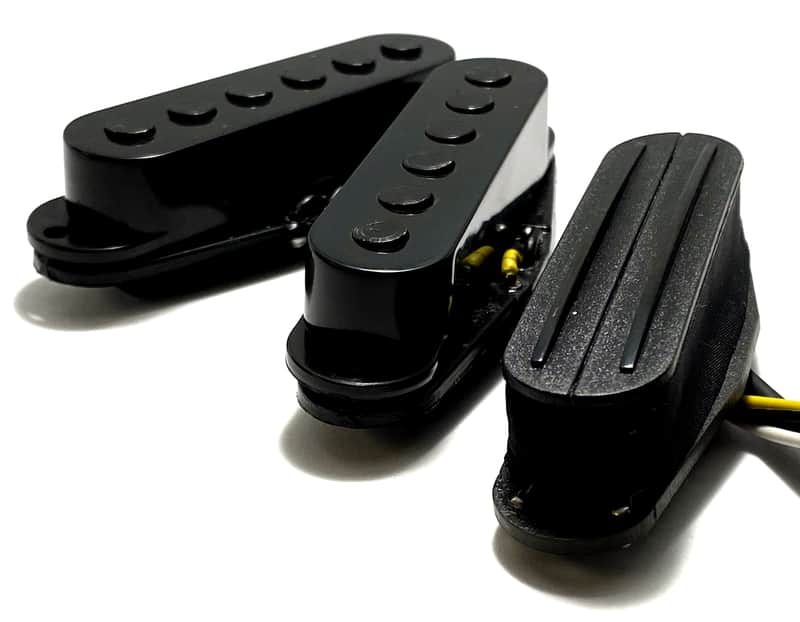

Onyx AR5 SSS Bridge, Middle & Neck Pickup Set, Bridge AlNiCo V Rail Strat Sized Humbucker + Modern Ceramic Middle & Neck Onyx Strat Single Coils

Dragonfire Onyx AR5 Mixed SSS Set Featuring Bridge AR5 Strat Sized AlNiCo Rails Humbucker + Middle & Neck Onyx Single Modern Ceramic Pickups ~ Black with Black

6 String Passive Pickup Set ~ Pickup Mounting Screws & Springs Included ~ Check our Reverb Store for this set style in other colors ~ Contact us with any questions ~ Thanks for shopping!

~~AR5 Strat Sized Humbucker Pickup Information~~

*AlNiCo 5 Double Rail Strat Sized Humbucker

*Steady Dynamic & Enhanced Presentation

*Humbucking Performance in Strat Single Coil Size

*Dual Blade Rails ~ Full Coverage Playing Response

*AlNiCo V (A5) Magnet Style ~ Quality Sound Execution

*4 Conductor Wiring (4 Wire Pickup Design)

*Full Encompassing Bobbin ~ Tighter Fit Slot Style

*Output: Wound to ~11.8K

*Rail Length: 59mm

*Pickup Length: 70mm (83mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 19mm (22mm including rail)

*Mounting Screw Spacing: 76mm

These pickups are on the beefy side for Strat sizing and might provide a tight fit for import guards. Check the measurements provided; some light filing and careful installation may be required depending on your guard. Let us know if you have any questions.

~~Onyx Single Coil Pickup Information~~

*Onyx Singles ft. Oversized 6.5mm Slug Non-Staggered Black Poles

*Enhanced Articulation, String Response and Modern Performance

*Flat Top Oversized 6.5mm Slug Style Black Non-Staggered Poles

*Matched 52mm Strat Single Coil Pole Spacing

*2 Conductor Wiring (2 Wire Pickup Design)

*Output: Wound to ~8K (Middle) & ~7.5K (Neck)

*52mm Matched Standard String Spacing

*Pickup Length: 69mm (82mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 17mm (22mm including mounting flanges)

*Mounting Screw Spacing: 76mm

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Dragonfire pickups are wax potted for squeal reduction / avoidance – note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.
