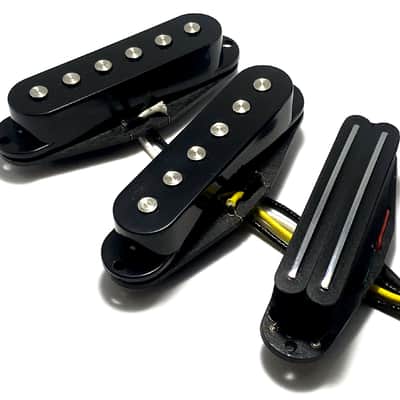

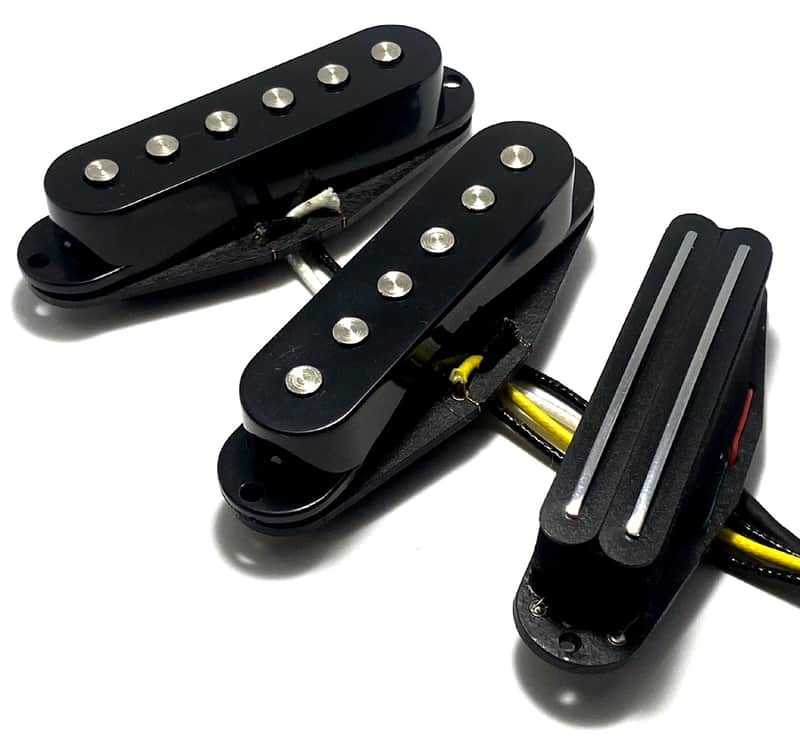

Duo Noiseless Bridge Middle & Neck Pickup Set, Duo Rail Strat Sized Humbucker + Mod Noiseless Strat Pickups

Dragonfire Duo Noiseless SSS Style Set, Mixed Single Style Pickups ~ Black with Chrome

Bridge: Duo Rail Humbucker (Strat Sized) + Middle & Neck: Mod Noiseless Strat Pickups

Designed for Matched 52mm String Spacing (all positions) ~ 6 String Passive Ceramic Pickup Set ~ Pickup Mounting Screws & Springs Included ~ Check our Reverb Store for this set style in other colors ~ Contact us with any questions ~ Thanks for shopping!

~~Duo Rail Pickup Information~~

*Duo Rail Strat Sized Humbucker

*Dual Blade Rails ~ Full Coverage Playing Response

*Humbucking Performance in Strat Single Coil Size

*Hot Wound w/ Dynamic Bass Response & Clear Highs

*4 Conductor Wiring (4 Wire Pickup Design)

*Output: Wound to ~12K

*Rail Length: 58mm

*Pickup Length: 67mm (82mm including mounting flanges)

*Pickup Width: 17mm

*Pickup Depth: 19mm (21mm including rail)

*Mounting Screw Spacing: 76mm

~~Mod Noiseless Pickup Information~~

*Flat Top Slug Style Non-Staggered Poles

*Single Coil Noise Free Performance

*Modern Tone Play & No 60-Cycle Hum

*2 Conductor Wiring (2 Wire Pickup Design)

*52mm Standard Pole Spacing

*Pickup Length: 69mm (82mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 17mm (22mm including mounting flanges)

*Mounting Screw Spacing: 76mm

*Note that noise and interference can come from sources other than your pickups.

~~Installation Information~~

Pickup wire color code information will be included with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

Dragonfire pickups are wax potted for squeal reduction / avoidance – note that noise and interference can come from sources other than your pickup.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.
