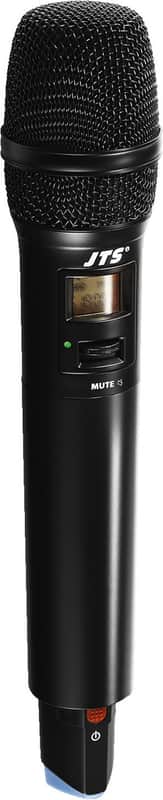

JTS R-4THA PLL Handheld Transmitter

Hand-held UHF PLL transmitter, with condenser cartridge.

• Condenser microphone cartridge (cardioid polar pattern)
• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• REMOSET technology for receiver/transmitter synchronisation
• Adjustable sensitivity (±15 dB)
• Lock function/mute function
• 4-level display for indicating battery status and low battery alert, backlit LCD
• Switchable transmitting power

There are restrictions or requirements within the EU!Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!tools4music 02/2019“It also features top-quality workmanship. However, in my opinion, it is visually less appealing than the JSS-4B. Nevertheless, it provides a pleasant sound.”How many wireless systems can be operated simultaneously?With optimum local conditions, it is possible to operate up to 18 wireless systems R-4/5, R-4THA/5, JSS-4B/5, R-4TBM/5 simultaneously.Manufacturer information:JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan

EU-Representative:MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
Notes and Warning MessagesThe unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.Supplies R-4THA/5850CH-2

Order No. : 0259370

Charging station, 2 slots, for RU-850LTH/5, RU-850...

View detailsR-4/5

Order No. : 0259400

4-channel diversity UHF PLL wideband receiver

View details Technical specifications R-4THA/5R-4THA/5Descriptionhand-held microphoneTransmission methodwirelessPolar patterncardioidSystemcondenserCarrier frequency range506-542 MHzTransmitting power10/50 mWPower supply2 x batt. AA size,

alkaline (not supplied)

Operating time> 20 hAudio frequency range50-18,000 HzMax. sound pressure140 dBAdmiss. ambient temp.0-40 °CDimensionsØ 50 mm x 253 mmWeight260 gPackaging dimensions (W x H x L)0.1 x 0.08 x 0.295 mGross weight0.545 kgNet weight0.306 kgR-4THA/5EAN code4007754268690Net weight0.306 kg
