Schertler Magnetico AG6 Acoustic Guitar Pickup

We are an authorized Schertler dealer and we can attest to the quality of these pickups because we use them in the real world not just the showroom. Check our video demo to hear this pickup in action and check our other listings for the S-MIC-M. In stock ships within 1 day.

Schertler's MAGNETICO AG6 pickup for acoustic guitar is the first model in a range of specially developed, affordable fretted instrument pickups that uniquely combine high-end Schertler electronics with active multiple coil technology. Benefits include a fast transient behaviour, flat frequency response and a full rich sound across the entire range of the instrument.

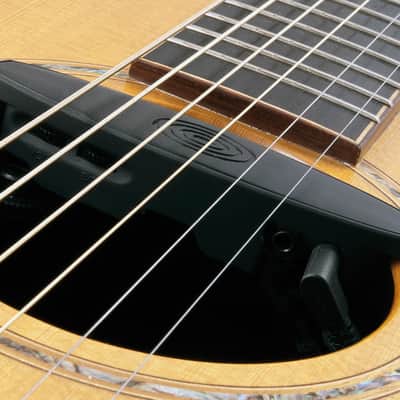

The compact pickup fits inside the guitar’s sound hole. It is equipped with volume control and external input (also with separate volume control) for connecting a second pickup. Sound from both pickups can be blended to create exactly the right effect for each individual performance or recording. The MAGNETICO AG6 is supplied with an internal Jack cable for fixed installation on the instrument. An external Jack cable is available separately.

Battery typeLithium 3V CR2032Playing hours120 hoursCurrent consumption1.84 mAFrequency rangefrom 0 Hz to 40 kHz (+/- 3dB)Dynamic range68 dBSNRMax output voltage4 VPPEXT IN impedanceca. 10k ohmOutput level-5 dBu / 1.23 VPPOutput impedance

5 kOhm

Minimum sound-hole dimension 95 mm.
