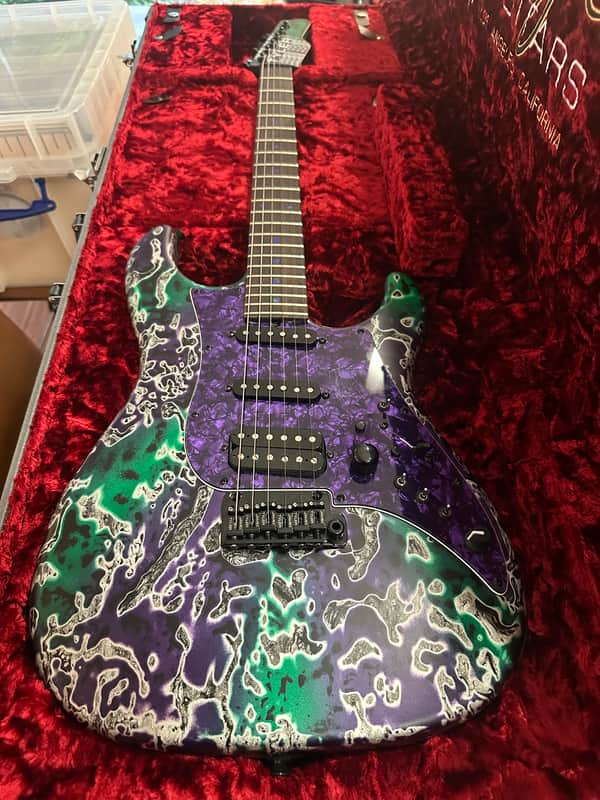

James Tyler Studio Elite 2025 - Alien Guano

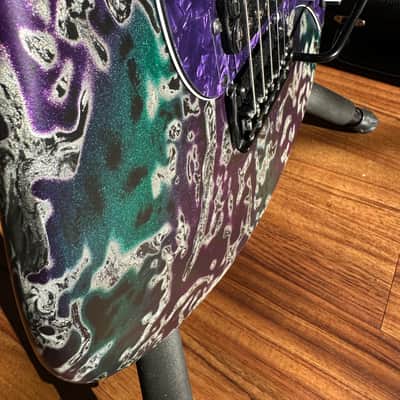

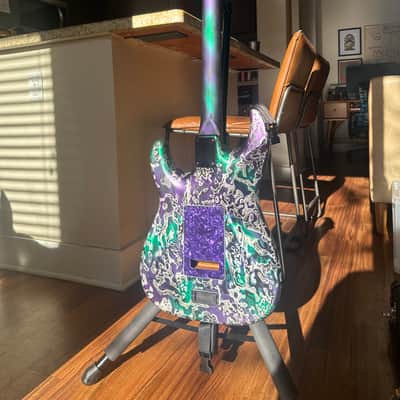

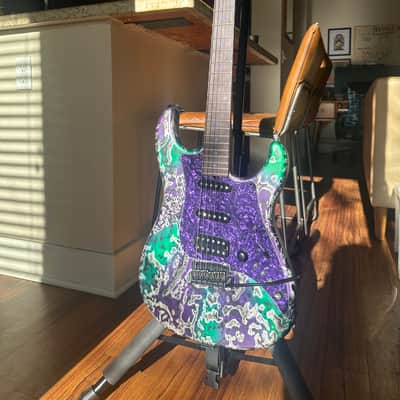

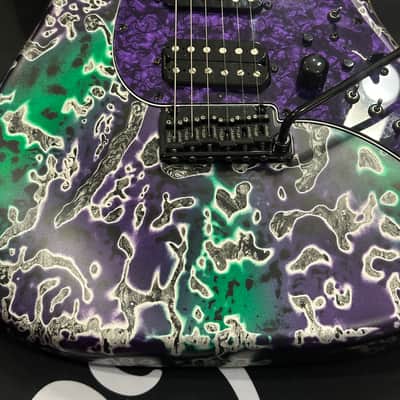

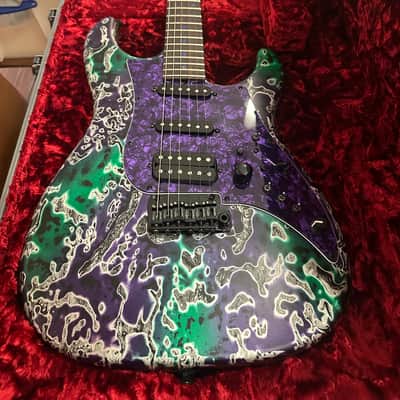

1/10/2026 - I added some photos in some better lighting. There is a sparkle to the Alien Guano finish that should be showcased.

Model James Tyler USA Studio Elite James Tyler Serial#: 25032

Builder James Tyler Guitars

Year 2025

Body Type Solid Body

Body Wood Alder

Finish Type Semi-Gloss

Finish Color Alien Guano

Neck Wood Quartersawn Maple

Fingerboard Indian Rosewood

Neck Carve Standard ’59

Scale Length 25.5”

Neck Dimensions .845” 1st – .975” 12th

Neck Radius Standard ’59

Frets 22 – .110′ x .055′

Nut Width 1 5/8″ / 41.3mm

Nut Material Tusq

Neck Finish Satin

Inlays Lapis Gold Dots

Side Dots Lapis Gold Dots

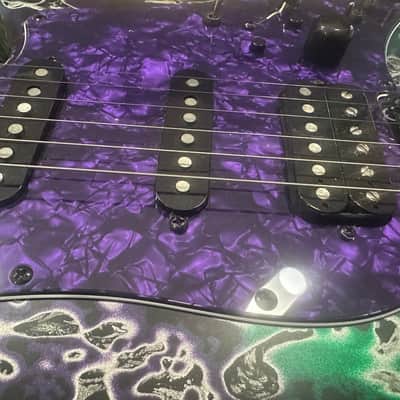

Neck Pickup Duncan Classic Stack(Slanted)

Middle Pickup Duncan Classic Stack(Slanted)

Bridge Pickup Supercharged Studebaker Humbucker (Slanted)

Pickguard Purple Pearliod

Hardware Black

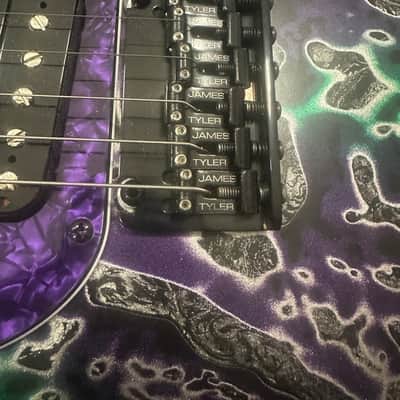

Bridge G2TS

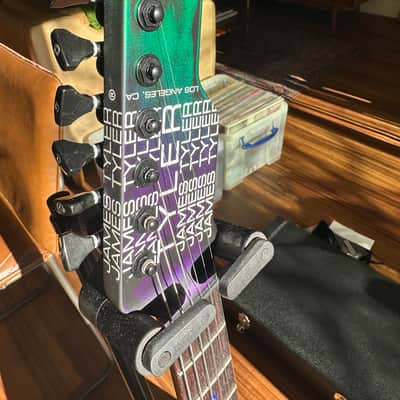

Tuners Hipshot Locking

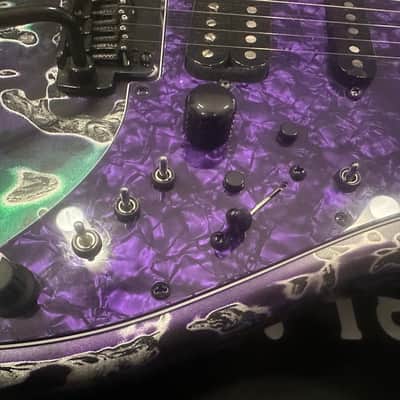

Electronics 3x3-way mini-toggle(Series/Split/Parallel) for each pickup / Lead/Rhythm Circuit 2-way toggle switch / Add Neck & Bridge Button

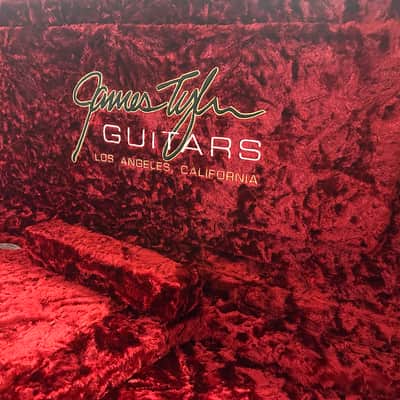

Case James Tyler G&G Deluxe Grey Tolex Hardshell Case

Weight 7.55 Pounds (7 lbs 9 oz)

JAMES TYLER USA STUDIO ELITE ALDER BODY INDIAN ROSEWOOD FINGERBOARD ALIEN GUANO 7.55 LBS

STUDIO ELITE SERIES

The Studio Elite models of James Tyler Guitars are the pinnacle of form, function, and sound. Years of feedback from revered studio and gigging guitarists culminated into the ultimate in electric guitars.

Supercharged Studebaker (Medium Output Humbucker)

Growl for days with tight lows and more mid punch. Great overdrive with good balance. The Supercharged Studebaker still has the clarity and versatility of the Studebaker with good dynamics and flexibility. Cleans up well.

Seymour Duncan Classic Stack Plus (Neck/Middle)Vintage Voiced Noiseless ST Pickup

The Classic Stack Plus neck pickup looks and sounds like a true Stratocaster single coil but none of the traditional single coil hum. It’s got all of the sparkle and the chime that you would expect from a vintage Strat pickup. Like its neck counterpart, the Classic Stack Plus middle pickup provides all of the classic Strat chime. However, we build it RWRP to give you that perfect in-between sound of positions 2 & 4 when split to keep the set completely hum-free in all selector positions.

Complete the set with the Classic Stack Plus bridge pickup, which is wound slightly hotter than the neck and middle models to provide an even balance and output between positions. Back in the 80s we patented a special bottom coil that actually injects negative hum into the pickup circuit and at the end of the production process, we fine tune each pickup for maximum noise cancelation. You get all the great qualities of a classic Strat pickup, and none of the hum.

Hand built in Santa Barbara, CA, the Classic Stack Plus Stratocaster pickups use hand ground alnico 5 rod magnets and comes with a splittable 3-conductor lead wire to give you access to true single coil operation. Each pickup wax potted for squeal free performance.

Rhythm/ Lead Circuit

Each pickups has own 3 way mini toggle switch for Series/ Split/ Parallel function and 1 master bypass toggle for Lead sound (series bridge pickup) with 5 ways pickups selector.

1) Pickup 5 way selector

Position 1: Neck
Position 2: Neck & Middle
Position 3: Middle
Position 4: Middle & Bridge
Position 5: Bridge

2) Mini Toggle Switch for each pickups

Up: Series Coils (Standard Humbucker or Hum canceling)

Middle: Split Coils (True Single with 60Hz noise *Hum canceling Pickup selector position 2 & 4)

Down: Parallel Coils (Parallel Humbucker or Hum Canceling- Weaker & Cooler tone than Series)
