Blower switch It’s a switching system that allows you to switch between any pickup and volume/tone setting straight to the bridge pickup, bypassing all controls.

SUHR V63+ PICKUPS(Middle Single Coil)（ML Standard） The V63+ started with John’s V63 design and he overwound it, creating a hotter pickup with more output and incredibly rich tone. Previously referred to as the ‘ML’, we’ve updated the name to help players better understand the tonal response and sound. The V63+ pickups offer a balance of tight lows, focused midrange and smooth top-end sparkle. V63+ pickups incorporate a modified staggered pole piece design to provide an even magnetic field needed to accommodate instruments with flatter neck radiuses and today’s string gauges.

Specifications:

V63+ MIDDLE
DC RESISTANCE: ~ 6.5KΩ Reverse Wind/Reverse Polarity

MAGNET TYPE: Alnico V



HOOK UP WIRE: Braided Cloth

SUHR ALDRICH PICKUPS(Neck & Bridge Humbucker) The result of collaboration between John Suhr and rock guitarist extraordinaire Doug Aldrich, the Aldrich humbuckers are the ultimate high-output pickups for aggressive rock style of playing. The Aldrich bridge humbucker is now our highest output pickup but it oozes tone across its sound spectrum.

It’s big sounding yet focused and punchy in the mids and tight in the lows. You will never hear this pickup get flubby and undefined in the highest gain settings. The high-mids will cut through like the sharpest knife but the treble will be sweet and never grating on the ears. From chunky low-string metal riffing to screaming string bends in the high register, the Aldrich bridge humbucker covers them all while retaining the dynamics of your picking attack.

ALDRICH BRIDGE

DC RESISTANCE: ~ 17.5KΩ
ALDRICH NECK
DC RESISTANCE: ~ 9.0KΩ

MAGNET TYPE: Alnico V Special



HOOK UP WIRE: 4-Conductor

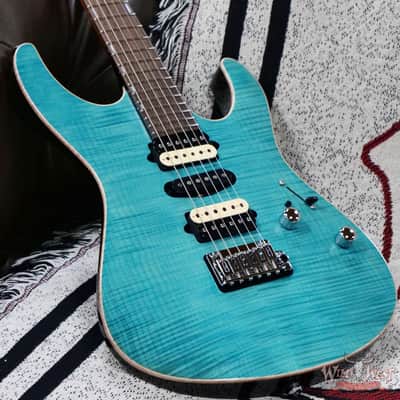

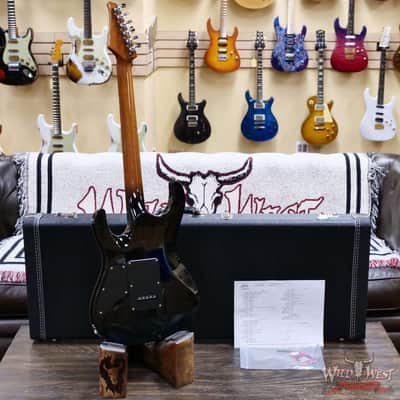

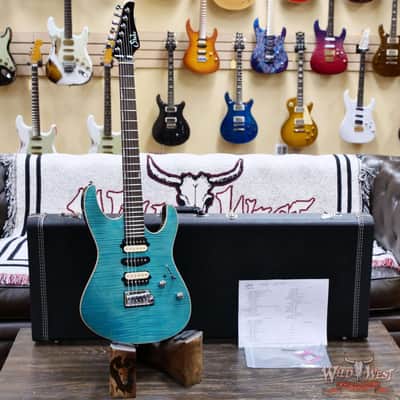

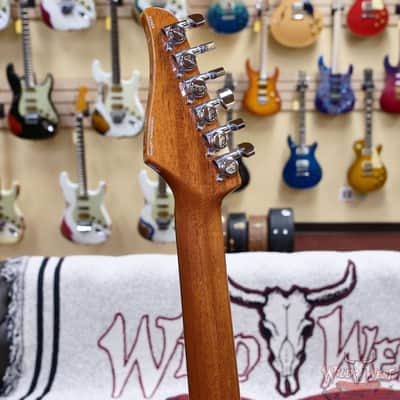

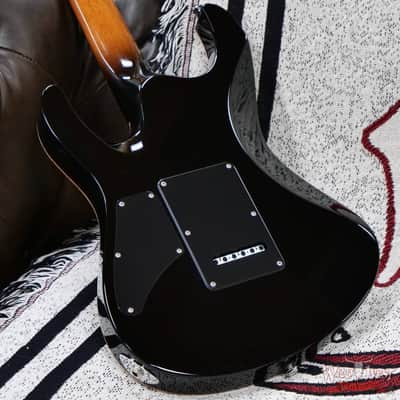

• Model: Suhr Custom Set Neck Modern HSS
• Builder: Suhr
• Year: 2025
• Body Type: Solid Body (Set-Neck)
• Top Wood: Flame Maple
• Body Wood: Genuine Mahogany (Chambered)
• Finish Type: Gloss
• Finish Color: Bahama Blue
• Back Finish: Black on Body / Natural on Neck
• Binding: Scraped Maple Binding
• Neck Wood: Solid Mahogany
• Fingerboard: Indian Rosewood
• Neck Carve: Modern Elliptical
• Scale Length: 25.5''
• Neck Dimensions: .800' - .850''
• Neck Radius: 10'' - 14'' Standard Roll
• Frets: 24 - Stainless Steel - Jumbo
• Nut Width: 1.650''
• Nut Material: Tusq
• Neck Finish: Gloss
• Inlays: Offset Blocks - Low E Side - White MOP
• Side Dots: White MOP Dots

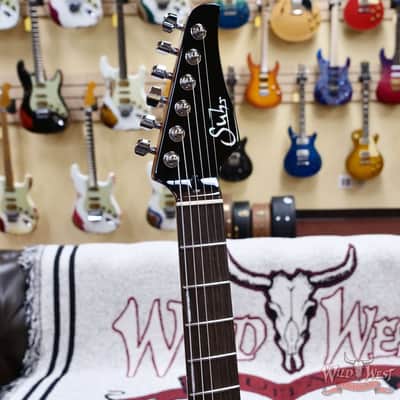

• Headstock: Black Face with MOP Suhr Logo Inlay
• Neck Pickup: Aldrich - Neck- Zebra
• Middle Pickup: V63+ PICKUP (ML Standard)
• Bridge Pickup: Aldrich - Bridge- Zebra
• Hardware: Chrome
• Bridge: Suhr 2-Post Bridge with Steel Block Saddles
• Tuners: Suhr Locking Tuners
• Controls: Volume, Tone(Push-Pull for Neck Humbucker Coil Split), 5-Way Blade Switch, Blower Switch
• Case: Suhr G&G Black Tolex Hardshell Case
• Weight: 6.95 Pounds (6 lbs 15 oz)
