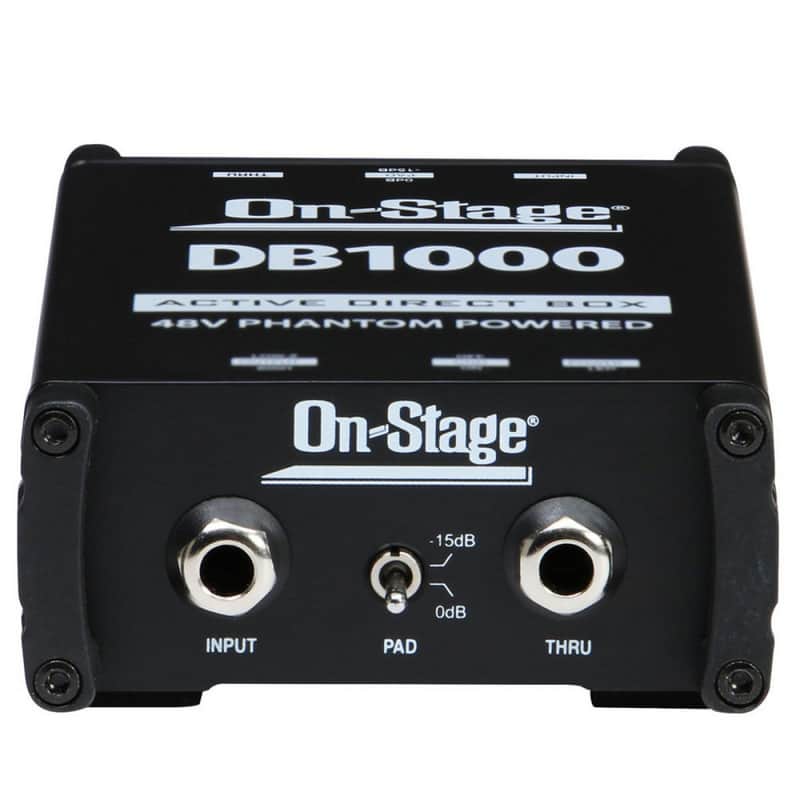

On Stage DB1000 Active DI Box

The DB1000 Active DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include a -15 dB pad switch to prevent clipping, a throughput connector to pass unaltered signal to a stage amp, and a ground-lift switch to defeat ground-loop hum. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

• Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
• Output signal can be sent via a long cable to a mixer or PA system without frequency loss
• Active circuit features a high-quality transformer for low distortion and an isolated signal path
• -15 dB pad switch prevents clipping

Product Attributes

• Application Acoustic guitars, bass guitars, keyboards, and more
• Inputs 1/4"
• Output XLR
• Power Phantom
• Pad 15dB
• Ground Lift Yes
• Input Resistance 220K Ohms
• Frequency Response 10Hz - 40kHz
• Construction Metal w/ nylon bumpers
• Dimensions 6" x 3.5" x 1.5"
• Weight 0.70 lbs.
