Replacement Model Switch, Variax 500/700 Electric

57RBS1

Replacement Switch for the OEM Line6© Variax™ 500/700 Model Bank Select Switch

For the “Gen 1” Variax™ Models 500/700e, any of the 12 Model Banks (10 default models and 2 custom banks) are selected using the Rotary “Model Bank” switch (consult the appropriate models’ “Pilot’s Guide” for specific details). Unlike a mechanical switch, this is a B50K potentiometer with ‘detents’ in the knob mechanism, providing a programmed voltage for each “switch” position.

The 57RBS1 will replace the OEM Variax™ switch with identical functionality (which is vastly different from other Industry-Standard configurations) and will supply the necessary voltages to the Main Printed-Circuit Board (MPCB) in the guitar.

NOTE: Replacement of this switch is simple and easy; soldering skills or disassembly and reassembly of the guitar are not required. It does, however, require attention to details and reprogramming of the MPCB, using an included procedure.

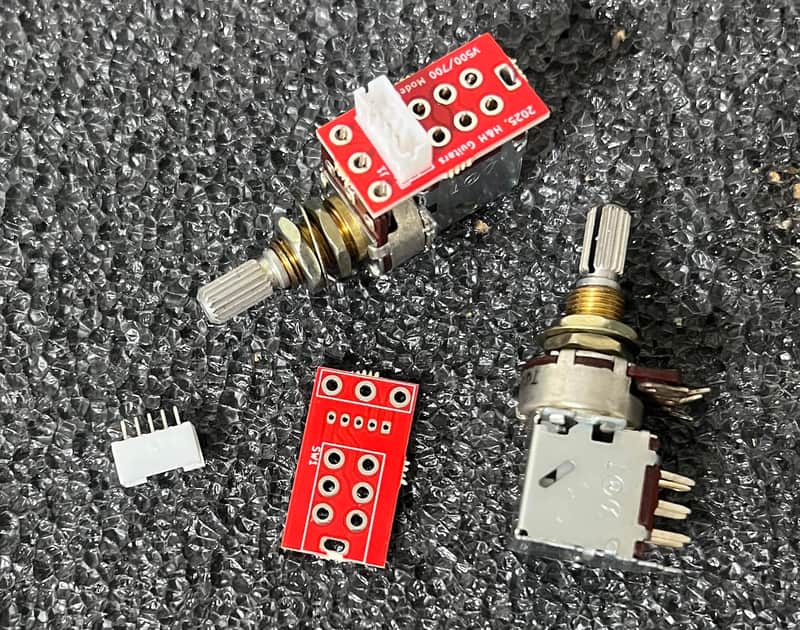

Package Contents: 1x-57RBS1 switch (potentiometer), 1x-mounting nut/washer, 1x-instructions, and 1x-certification of R values. The mechanical "Detent" mechanism is NOT INCLUDED.

Shipping is free in the continental US only. Message me to get a quote for shipping to other regions (on a per-region basis).
