Yamaha's new Revstar Standard line features chambered mahogany bodies with maple tops, a Focus Switch - the push/pull tone control which activates a passive boost with an effect similar to overwound pickups, and a choice of pickups.

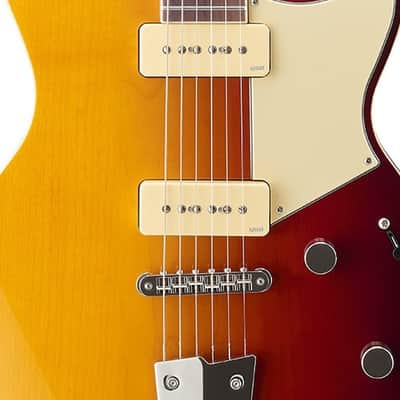

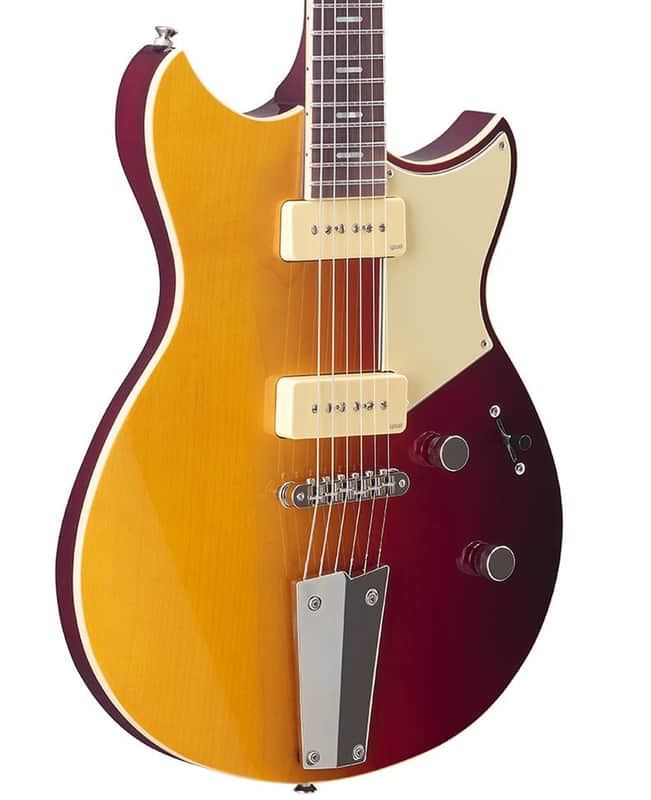

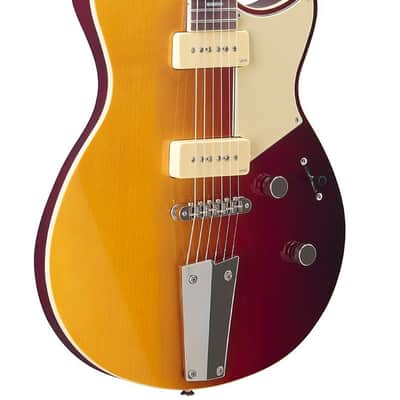

This guitar, the RSS02T, has two P90-style single-coil pickups with 5-way switching, and a custom racing tailpiece.
Pittsburgh Guitars is an authorized Yamaha dealer! Here are more specs from the Yamaha website:
Scale Length - 24 - 3/4” (628.6mm)
Body
Top – Maple
Back - Chambered Mahogany
Body Finish - Gloss Polyurethane
Neck
Neck Materials - 3-Piece Mahogany, Carbon Reinforcement
Neck Finish - Satin Polyurethane
Fingerboard Materials - Rosewood
Fingerboard Radius - 12" (304.8mm)
Fret Wire - Jumbo Stainless steel
Number of Frets - 22
Nut Materials - PPS
Neck Width @ 0 Fret / 12th Fret - 41.9 / 52.0 mm
Thickness @1st Fret / 12th Fret - 21.0 / 23.9 mm
Electronics
Neck Pickup - VP5n: P90 type Single coil / Alnico V
Middle Pickup - none
Bridge Pickup - VP5b: P90 type Single coil / Alnico V
Controls - Master Volume, Master Tone (Push - Pull "Focus Switch")
Pickup Switch - 5 - Position Lever Switch
Hardware
Bridge - Tune - O - Matic
Tremolo Arm - none
String Spacing - 10.5mm
Tailpiece - Racing Tailpiece
Tuning Machines – Die-Cast
Pickguard – 3-Ply Cream
String Gauge - Elixir Nanoweb
Case - Gig Bag
Feel free to message us with any questions. Thanks!
