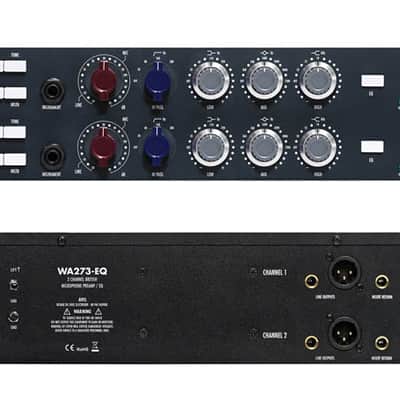

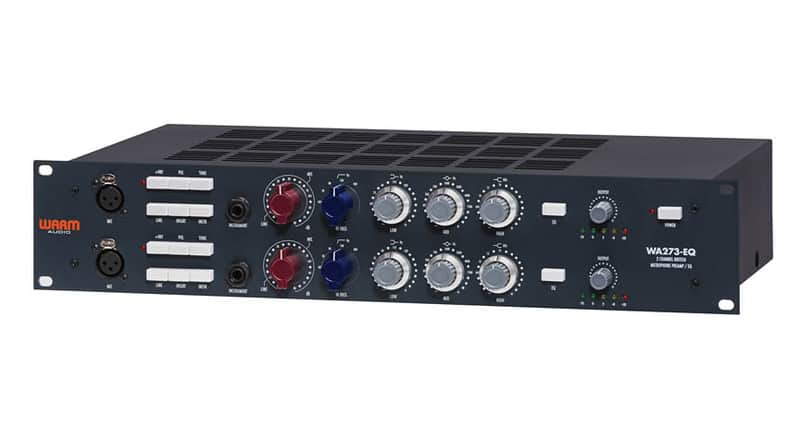

Warm Audio WA273-EQ 2-Channel British Microphone Preamp / EQ
This seller has not set a shipping cost for Denmark. Please contact them to ask about shipping.
Our users rate Reverb
Free ground shipping only applies to 48 Continental US. We will gladly ship to Alaska, Hawaii, Puerto Rico and other US territories for a freight surge charge. Please reach out for freight payment if you live outside of the 48 continental states.
The WA273-EQ recreate the most iconic British console channel strip sound made famous by legendary recordings from the 60s and beyond. Known for delivering rich, full analog warmth with frequency control, the original became the foundation of classic rock and was the centerpiece of countless timeless hits. The sound of those famed console preamps can be heard on recordings by The Beatles, U2, Kendrick Lamar, Led Zeppelin, and many more.
WA273-EQ deliver the perfect balance of “unmistakably analog” tone & clarity with added frequency sculpting that every engineer is chasing. With 80 dB of gain, a discrete Carnhill Transformer balanced signal path, and onboard 3-band EQ, the 73-EQ series is perfect for any recording, mixing, or engineering task. Using hand-wired construction featuring premium components and individually testing every single unit, the 73-EQ series preamps are the ideal choice to upgrade your sound to studio-grade.
Specifications:
- Dual-Channel, Class A, '73-Style British Console Microphone Preamp With EQ
- UK-Made - Blore-Edwards EQ Dual-Concentric Switch Potentiometers
- Polarity Switch
- 48v Phantom Power
- 4 Position Inductor Based High Pass Filter - 50, 80, 160, 300 Hz
- XLR Mic Input
- Line Level TRS Input
- TS (Unbalanced) Send/Receive Insert Jacks
- XLR & TRS Line Level Outputs
- Direct In, Instrument Input
- Output Control
- LED Level Indication
- 19" Rack-Mountable
- Ground Lift Switch
- Internal IEC 115v/230v Power Inlet
- Single Chassis Depth: 9.5” | 23.75 cm
- Dual Chassis Depth: 11” | 27.5 cm
- 5-Year Warranty
- Components & Internal Specs (Per Channel)
- UK-Made Carnhill Transformers

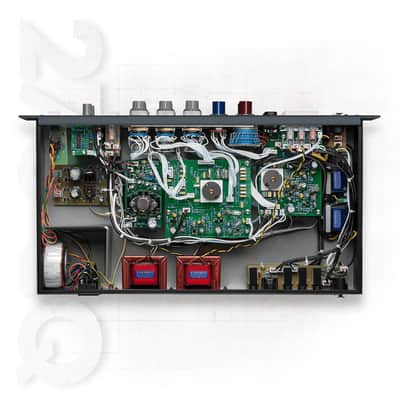

- Hand-Wired, Hand-Assembled, Fully Discrete
- Inductor-Based 3-Band EQ
- Low-Band Boost/Cut - 35, 60, 110, 220 Hz
- Mid-Band Boost/Cut - 360, 700, 1600, 3200, 4800, 7200 Hz
- High-Band Boost/Cut - 10, 12, 16 kHz
- Performance Specs (Per Channel)
- 80 dB Of Gain - Resistor Stepped Gain Switch
- Frequency Response 20 Hz - 20 kHz +/-.5 dB
- Tone Button - Changes Input Transformer Impedance For Varying Tone
- Polarity Switch
- Additional High-Band Frequency Eq Points Added (Compared To Vintage 1073)
