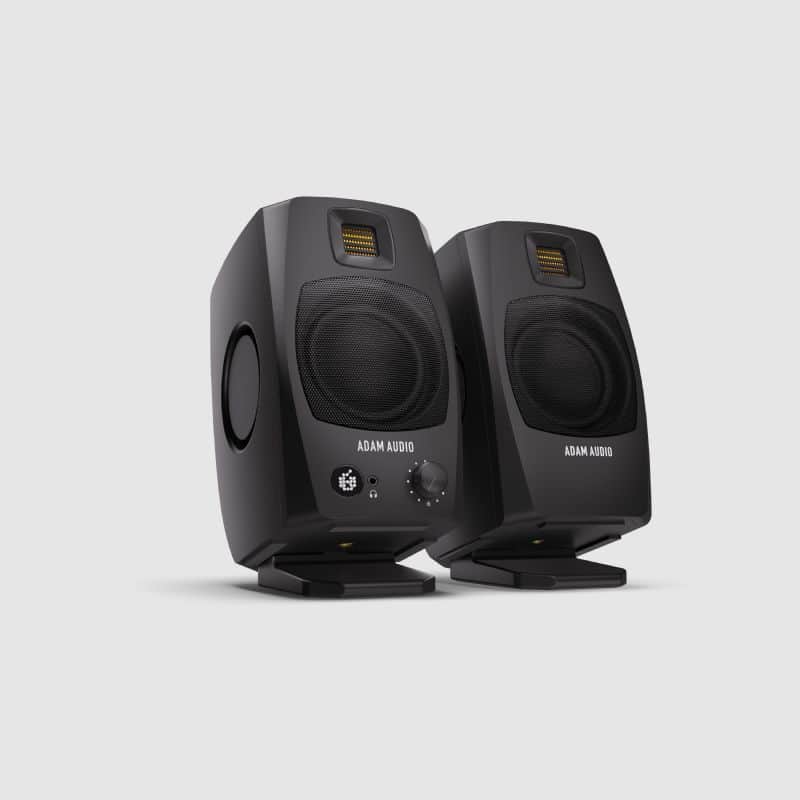

Designed for songwriters, producers, and music lovers, the D3V monitors can be directly connected to computers and mobile devices via USB-C and offer a wealth of features, plus incredible audio performance in a remarkably compact form.

The D3V is a fully active desktop monitoring system that stays true to ADAM Audio’s industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5” aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5” passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.

Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points (3/8″) for perfect positioning in any environment.

Available in black or white editions, the D3V’s finish can be chosen to match your taste and compliment your environment.

Main Features:

• Handmade Precision D-ART Tweeters
• 5'' Aluminum Woofers plus dual-sided 3.5" passive radiators
• Total Peak Amp. Power: 240 W
• Frequency Response @ -6 dB: 45 Hz – 23.2 kHz
• SPL per speaker at 1 m (Peak): 97 dB SPL

EXPLORE THE TECHNOLOGY

ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the D3V.

D-ART 1.5" HAND-FOLDED TWEETER

The D3V utilizes a 1.5” D-ART tweeter so that customers can enjoy precise and unfatiguing high frequency reproduction.

USB-C & BALANCED ANALOG INPUTS

The D3V offers a direct plug’n’play USB-C connection to computers, mobiles, and tablets. Traditional ¼” TRS inputs are also included.

DSP ROOM ADAPTION

The D3V features DSP-powered 3-way switches to address common acoustical issues arising from speaker placement.

3.5” WOOFERS & DUAL-SIDED PASSIVE RADIATORS

Partnering with the D-ART system, the D3V utilizes 3.5” woofers, a ferrite magnet system and passive radiators for the low frequencies.

ONE BUTTON CONTROL

The D3V’s multi-function volume control allows users to quickly access the common functions that make life that little bit easier ...

MONITOR STANDS & MOUNTING OPTIONS

Detachable feet are included as standard, plus users will find a 3/8” mic stand mounting point on the underside.

Specifications:

• Display: Front panel multi-color LED
• Cabinet Design: Dual passive radiator
• Cabinet Material: PC-ABS
• Frequency Response @ -3 dB: 48 – 22.6 kHz
• Frequency Response @ -6 dB: 45 – 23.2 kHz
• Crossover Frequencies: 4.0 kHz
• Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 94 dB SPL
• Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 97 dB SPL
• Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 80 dB SPL
• Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 84 dB SPL
• Max peak SPL in full space at 1 m with IEC-weighted noise (full range / 80 Hz bass managed): 98 dB SPL
• Dolby DARDT max SPL in full space: 103 dB SPL
• Dolby DARDT max SPL in full space (bass managed): 106 dB SPL
• AD converter: 24-bit
• Internal sample rate: 48 kHz
• Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
• Input sensitivity: 0 dBu = 88 dB SPL at 1 m @ 0 dB level setting
• Level: Front panel knob controls loudspeaker and headphone outputs over the range -∞ dB to +6 dB
• Front panel knob press functions: Mute, standby, input select, channel swap, firmware update mode
• Input selection: Analog, USB-C
• Channel order: Normal, L/R swapped
• Backplate Room Adaption: Yes
• Position (Bass): 0, -3, -6 dB
• Desk (Low-mid and Mid): 0, -3, -6 dB and 0, -2, -4 dB
• Room Acoustics (Treble): 0, -1.5, -3 dB

Amplifier Type: PWM

• Peak (10% THD, limiter deactivated): 2 x 40 W
• RMS (1% THD, limiter deactivated): 2 x 30 W

Mounting options:

• Flat on desk or loudspeaker stand (angled 15 degrees upwards on desk using supplied foot),
• threaded insert (3/8″) on the bottom of the cabinet for microphone stand

Power consumption (max, idle, sleep): 60 W, 5 W, 0.3 W

• AC Input Voltage: 100 – 240 V, 50/60 Hz
• Power Rating: 60 W max.
• Operating Conditions: -10° C to +45° C (+14° F to +113° F); <70% RH, non-condensing

Weight & Dimensions

• 3.58 kg total (7 lbs 14 oz total)
• Dimensions (Height x Width x Depth): 200 mm (Height with stand: 240 mm) x 115 mm x 150
• (7 7/8″” (Height with stand: 9 1/2″”) x 4 1/2″” x 5 7/8″”, 9 1/2″”)”

• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: D3V primary loudspeaker, D3V secondary loudspeaker, USB-C cable with USB-A adpater, Power cable, Power block, Quick Start Guide
