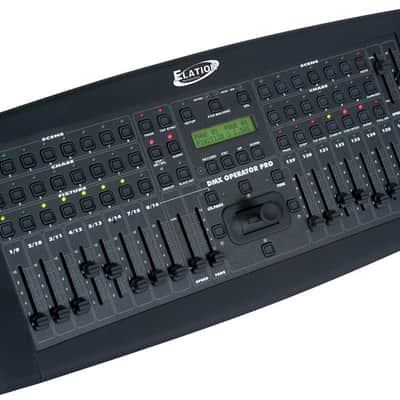

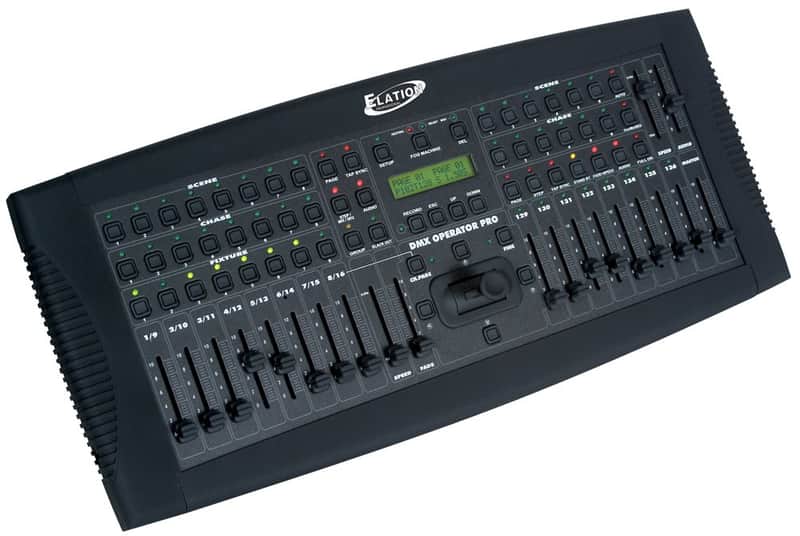

DMX Operator Pro

ADJ's DMX Operator Pro controls up to 136DMX channels. Its is MIDI controllable and has a built-in microphone. Also it records up to 8 programmable chases with fade times and different speeds. The 8 individual faders provide easy programmability for intelligent lighting or dimmer packs.

ADJ's DMX Operator Pro is a 136 channel hybrid lighting control device designed for DJ’s, clubs and small touring applications. This controller allows operators to easily manipulate conventional and moving lights via simple to use buttons and faders. The DMX Operator Pro puts programming, playback and live manipulation of Scenes and Chases at your fingertips. The DMX Operator Pro can control up to 8 moving lights, each consisting up to 16 channels with a max of 128 channels. Up to 96 programmable Scenes and 8 programmable Chases can be recorded for the moving light section. Other features include a Tap Sync button for manual Chase override, Step/Mix/Sequence button for Chase playback, Audio button for music trigger (via internal microphone or line level input), Group button to control more than 1 fixture at a time and four speed and fade faders for manual override of Chases

Specifications

DMX Channels

• 136 Total. 128 channels for Intelligent 8 Channels for Par Cans

Intelligent (128 channels)

• 8 individual fixtures each with 16 DMX channels
• 96 programmable scenes
• 8 programmable chases with fade and speed control

DIMMER / ON/OFF (8 channels)

• 8 individual channels
• 96 programmable scenes
• 6 programmable chases with fade and speed control
• Back-up memory using a 32 MB Compact Flash Card
• Fog Machine trigger button
• DMX Patching
• Tap Sync
• Fixture Group function
• Step/Mix Sequence function: automatically sequences your chases
