Palmer PWT 06 - Universal 19" Rack Power Supply with 6 Outputs

PALMER PWT 06 - Universal 19" Rack Power Supply with 6 Outputs

Item highlights:

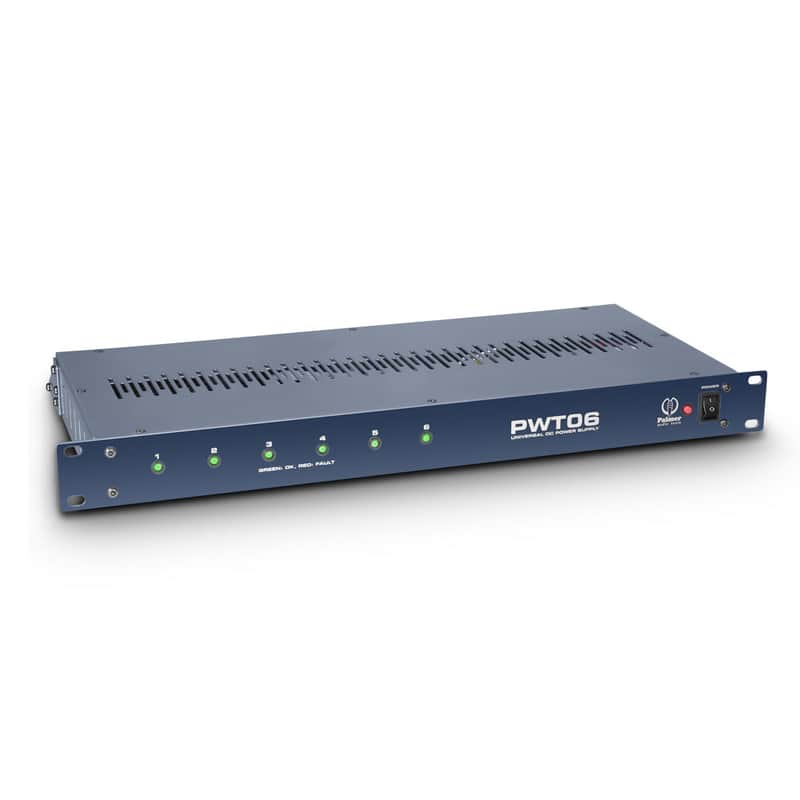

Palmer PWT 06 19" Multiple Power Supply

The Palmer PWT 06 is an extremely high-performance multiple power supply in 19" rack format with 6 isolated outputs, each of which delivers a maximum current of 1,000 mA (1A). It is the convenient and practical solution for powering wireless systems and eliminates the need for individual power adapters in power strips. The PWT 06 can power up to 12 wireless systems with DC current simultaneously, e.g., Sennheiser EM100G3, AKG 4500SET, Shure ULXP4, Line6 XDV75 or LD Systems products ranging from the LDMEI1000 to the LDWS1000R2 dual receiver.

The polarity is individually adjustable for each of the rear panel outputs, as is the output voltage of 9, 12 or 18 VDC; connections are made via 5.5 x 2.1 mm power sockets and 6 included DC cables. The PWT 06 package includes six Y-cables for supplying power to two devices via one output as well as a strain relief bar that can be used to secure the cables. Two-coloured indicator LEDs on the front panel of the PWT 06 for all outputs clearly show correct functioning or a possible malfunction.

Specifications

General

Product type

Power Supplies

Mains connector

IEC mains cord

Input voltage

115 - 250 V

Outputs

6

Output connectors

2.1 x 5.5 mm

Output voltage

12 V, 18 V, 9 V

Max. output current

1000mA per output A

Isolated outputs

Yes

Polarity

Switchable

Cord length

100 cm

Indicators

6 x status LED, Power

Controls

voltage selector switch, Voltage, Polarity

Width

480 mm

Depth

210 mm

Height

45 mm

Weight

4,7 kg

Features

6x long DC cable and 6x Y cable included
