3x3 Humbucker Set, 4 Wire Bridge + Neck Pickups, AlNiCo 5 Split Humbuckers, Covered Chrome

Dragonfire 3x3 Covered Humbuckers ~ AlNiCo V Passive Hot Wound w/ Split Exposed Poles ~ Covered Chrome, Humbucker Pickup Set (Bridge + Neck) ~ Collaborative HH Set Style, 1 qty Bridge Position Humbucker Pickup + 1 qty Neck Position Humbucker Pickup

Dragonfire 3x3 Humbuckers offer great output with clean tone, warm, smooth presentation and distinct 3x3 construction in a standard covered humbucker size. These split humbuckers execute with unique styling while granting slightly overwound but not-too-hot performance. 3x3s deliver specialized humbucker character and AlNiCo 5 bar magnet quality. With a deluxe covered pickup and 3x3 style exposed poles, these humbuckers provide a striking look to complement your playing.

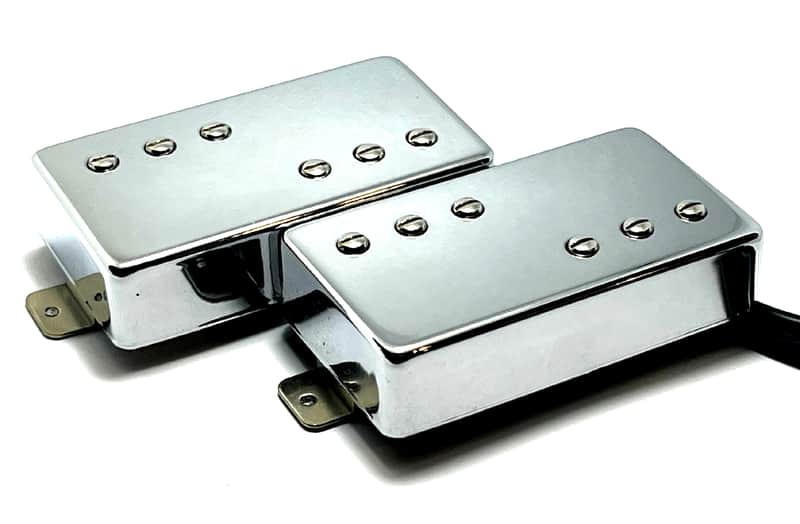

These humbuckers showcase two rows of three exposed regulating screw adjustable polepieces in each row for a total of six split exposed poles on each pickup. Please note that standard covered humbucker pickups in this style require “square-corner” style humbucker routs if using a pickguard. These Dragonfire 3x3 Humbuckers are not direct replacements for Fender © Wide Range style pickups and will not fit routs designed for that pickup type. Check your measurements prior to purchase and contact us if you have any questions.

~~Product Highlights~~
*6 String Passive Humbucker Pickup Set
*Covered 3x3 Split Exposed Pole Style
*6 Adjustable Screw Exposed Polepieces
*AlNiCo V / AlNiCo 5 Bar Magnet Presentation
*Hot Wound Passive Performance Split Pickup
*Wax Potted for Squeal Avoidance
*52/50 Standard String Spacing
*Short Style Mounting Legs (Standard Style)
*Standard Insulated Lead Wire (Modern Stranded Style)
*Pickup Mounting Screws & Springs Included
*500K Pots & 0.047 Tone Caps Recommended

~~Approximate Measurements~~
*Bridge Polepiece Spacing: 52mm
*Neck Polepiece Spacing: 50mm
*Approximate Bridge Output: Wound to ~16K
*Approximate Neck Output: Wound to ~8K
*Pickup Length: 70mm (84mm including mounting flanges)
*Pickup Width: 38mm
*Pickup Depth: 18mm (21mm including mounting flanges)
*Mounting Screw Spacing: 78mm

~~Installation Information~~
Wire color codes and basic instructions for a sample standard installation are included. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

These humbuckers are 4-wire so you can add series-parallel or phase reverse functionality for expanded wiring and playing options (instructions not included). If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~
Please ask any questions prior to purchase.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. We will address any issues prior to installation. If everything is in order, simply install carefully to enjoy.
