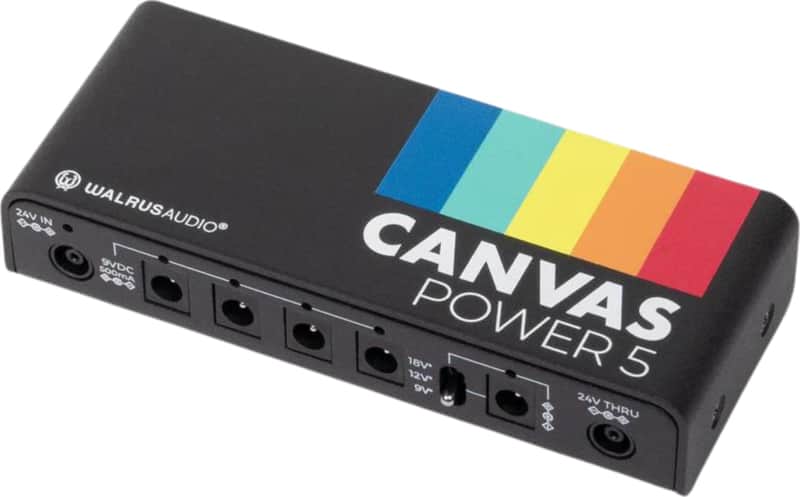

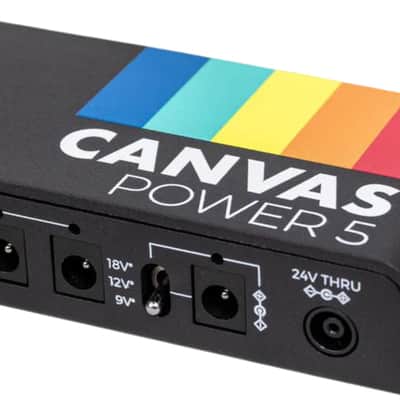

The Canvas Power 5 has 5 isolated power outputs delivering up to 500mA of clean power at 9v. One of the outlets is variable voltage, letting you switch between 9v, 12v, and 18v for powering high-voltage pedals. Canvas Power Supplies bring simplicity and modularity to powering your pedalboard. Delivering up to 500mA of silent, isolated, and clean 9V power to each output, these power supplies are perfect for the modern pedalboard. The Canvas Power series is built using modern switch mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered ensuring they supply plenty of power with incredibly low noise. The super slim design allows Canvas Power Supplies to fit under nearly any pedalboard, and the included universal mounting brackets mean you don’t have to worry about your power supply staying put when you’re hustling to your next gig. Walrus have also developed custom 2.1mm barrel cables with a 90-degree plug on one end, and our all-new super short straight plug on the other, giving you the maximum flexibility for fitting these power supplies into tight spaces. Of course, they all accept standard 2.1mm barrel cables as well, but they won’t be nearly as cool.

Product Features

• Supplies Clean, Quiet and Isolated Power for Your Favorite Pedals/Effects
• 4 x 9V Outlets and 1 Variable 9V/12V/18V Outlet - 500mA Per
• Small, Slim Design for Mounting Under Most Popular Pedalboards
• Includes Mounting Brackets For Pedalboards w/ Elevated Surfaces

Attributes

• Voltage Output: 18V, 12V, 9V

Technical Specifications

• Dimensions: 1.24" H x 3.93" W x 2.24" D
• Outputs: 4 x 9V DC 500mA, 1 x 9V/12V/18V DC 500ma, 1 x 24V DC pass thru
• # of Outlets: 5
• Polarity: Center Negative
• Current Output: 500mA total
• Connectivity: 2.1mm Barrel, 1 x USB-C (5V, 1.5A out)
