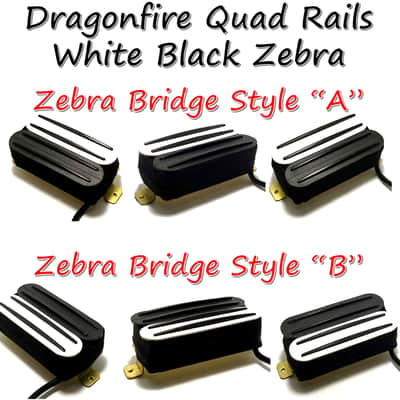

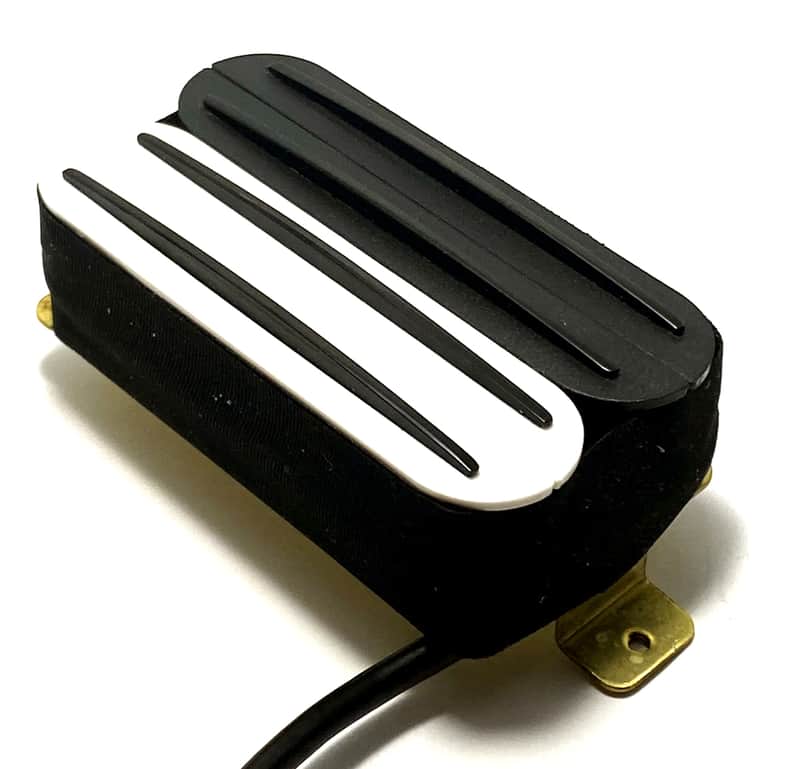

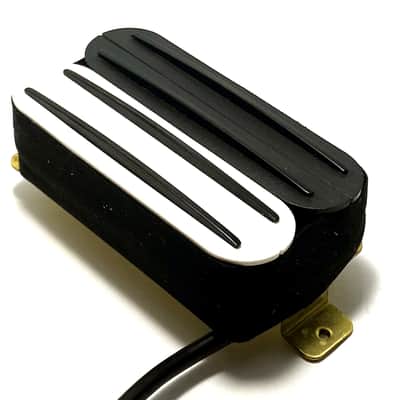

Quad Rails White Black Zebra Bridge Humbucker, 4 Black Blade Rails, Passive 23K Guitar Pickup ~ Style B

Dragonfire Quad Rails Bridge Humbucker ~ White Black Zebra Style "B" with Black Rails ~ Ceramic Overwound Hot Performance Four Blade Rail Passive Pickup

These Quad Rails are the full-size mega humbucker version of the super popular Dragonfire Duo Rails. Designed to outperform, dominate and deliver in a wide variety of genres and playing styles, Quad Rails excel when hot presentation is not only a bonus, but an execution expectation.

Dragonfire Quad Rails can help you avoid string-to-string definition loss and provide enhanced response so you can explore and discover new dimension and results from your playing. These humbuckers provide a steady dynamic for sweep picking, bends, vibratos and other intense performance styles.

Wound to a staggering 23K output around ceramic bar magnets, these Quad Rails are the hottest passives we offer. They are sizzling hot for sure and offer superior coil split results, but these pickups also deliver some nice clean tones when you back down for a new playing profile.

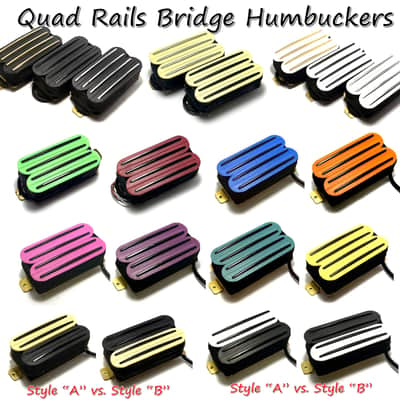

We offer a variety of colors in this pickup style as well as matching Strat single-coil sized rail humbuckers. Check our Reverb Store for pickup sets, related styles, and other colors including black, blue, cream, green, orange, pink, purple, red, teal, white, yellow, cream-black and white-black zebra. Contact us if you have any questions.

Product Highlights

*6 String Passive Humbucker Pickup

*Quad Rails ~ Thin / Blade Rail Style

*4 Rails/Pickup (2 Rails/Bobbin) for Full Coverage Play

*Hot Wound / Overwound Pickup @ ~ 23K

*Rail Humbucker Style for Outstanding String Response

*Uncovered Open Coil Bobbin Construction

*Modern Ceramic Bar Magnet Type

*Four Conductor Wiring (4 Wire Pickup Design)

*Coil Split Capable for Expanded Play Options with Superb Results

*Wax Potted for Squeal Reduction / Avoidance

*Position Interchangeable ~ Flexible Installation Options

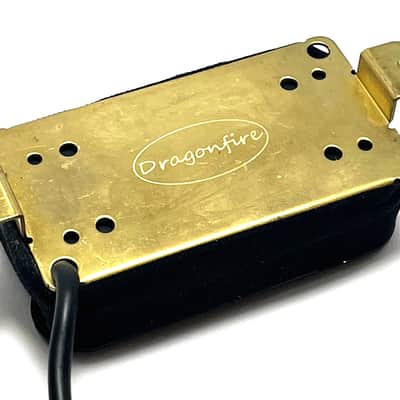

*Standard Style Short Mounting Legs

*Standard Insulated Lead Wire (Modern Stranded Style)

*Pickup Mounting Screws & Springs Included (Screw Color Matches Rail Color Unless Otherwise Requested)

*500K Pots & 0.047 Tone Caps Recommended (Available Separately)

Approximate Measurements

*Output: Wound to ~23K

*Pickup Length: 68mm (84mm including mounting flanges)

*Rail Length: 58mm

*Pickup Width: 37mm

*Pickup Depth: 22mm (28mm including flanges)

*Mounting Screw Spacing: 78mm

Installation Information

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations. The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these four-wire Dragonfire pickups. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic wire color code information we provide with purchase to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order. If you incorporate one of our Quad Rail humbuckers into an existing system or in a set with a different brand of pickup, optimal system performance may require phasing adjustment.

These humbuckers allow coil-splitting functionality for expanded wiring and playing options (pickup wire color codes provided, instructions not included). Overall build details and wiring will determine how these pickups will perform in your system. Please be aware that we do not provide information or comment regarding any diagrams/instructions, components or pickups other than our own. If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses or contact us for details and a quote.

Purchase Notes

Please ask any questions prior to purchase. Color indicates color, not material, and may be subjective. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Our colors may be specific to our brand; please do not purchase if you are trying to color-match or looking for a specific appearance.
