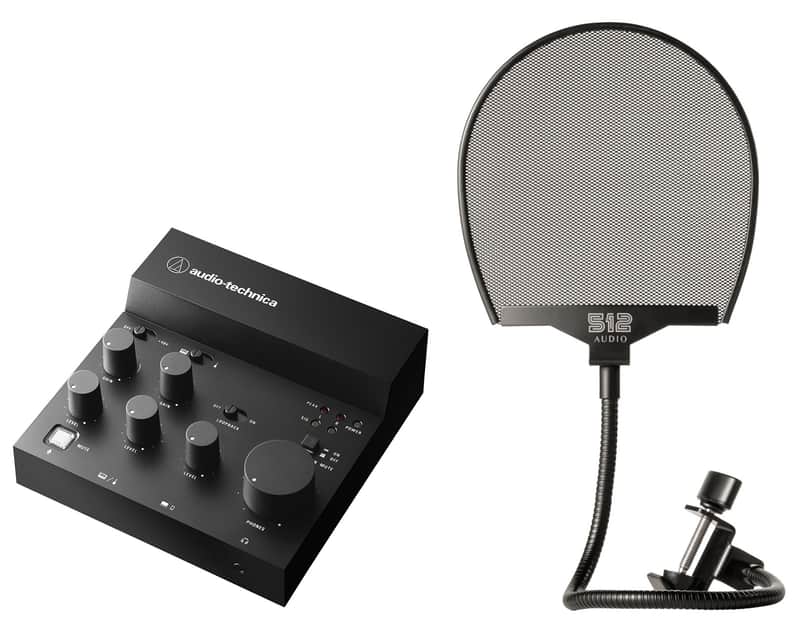

Audio Technica AT-UMX3 USB Live Stream Recording Mixer+Warm Audio Pop Filter

Package Includes:

• (1) Audio Technica AT-UMX3 USB Audio Mixer - Plug-and-Play, Live Streaming Ready
• (1) 512 Audio Warm Audio 512-POP Professional Metal Pop Filter w Gooseneck Clamp

Description:

The perfect desktop audio mixer for novices and experienced users alike, the AT-UMX3 is a compact, feature-rich USB mixer that delivers high-quality sound for livestreams and other applications. Featuring a high-performance A/D converter (up to 24-bit/192 kHz) and plug-and-play operation, the AT-UMX3 lets you connect to your computer or mobile device to easily produce professional-quality mixes.

The AT-UMX3 is the simple solution for feeding multiple audio sources into a stream. Connect a condenser or dynamic microphone (with XLR or ¼" plug), guitar, and keyboard into this handy, all-in-one interface, then use the intuitive controls and a pair of connected headphones to mix the audio from the mic and one instrument into a single stream. Your mix will be sent to your stream audience exactly as you hear it.

If you’re looking to incorporate background music, game sounds, or other audio into your stream, you’ll appreciate the mixer’s loopback switch, which automatically mixes sound from your computer with the live mic and instrument audio – and outputs the complete stereo mix back to the computer for streaming.

Designed and tested by Audio-Technica’s pro audio engineers, the AT-UMX3 USB mixer comes with a USB-C to USB-A cable and USB-A to USB-C adapter for hassle-free connectivity, and features an advanced noise-resistant design to prevent the pickup of unwanted electronic noise from smartphones, Wi-Fi routers, and other sources.

Hear What Your Audience Hears
The feature-rich AT-UMX3 makes it easy to mix all your livestreaming audio elements and monitor the results – so you can be confident the mix is right.

Craft the Perfect Mix
The loopback function gives you the power to combine mic, instrument and computer audio into a single mix that’s automatically sent back to your computer for streaming. It couldn’t be easier to add background music, game sounds or other computer audio for a professional-quality stream.

Microphone

• Phantom Power Switch
• Input peak indicator lamp
• Gain control knob
• Level control knob
• Microphone mute button

Line/Instrument

• Line input selector switch
• Gain control knob
• Level control knob

PC Loopback

• Loopback switch
• level control knob

Monitoring

• Power indicator lamp
• Output peak indicator lamp
• Signal indicator lamp
• Monitor mute
• Headphone volume knob
• Headphone output jack

Inputs

• USB port
• USB power port
• Line input jack
• Microphone input jack

Simple Setup
The mixer comes with a USB-C to USB-A cable and USB-A to USB-C adapter for easy connection to your computer or mobile device. No drivers or software required. Simply plug your computer, mic, and instrument (if desired) into the mixer and start to create.

Get Connected
Start with a condenser XLR microphone like the AT2020 or a dynamic XLR microphone like the AT2040. Next, connect a guitar or keyboard. Then use the intuitive controls and your favorite ATH-M50x headphones to mix the audio from the mic and one instrument into a single stream. Your mix will be sent to your stream audience exactly as you hear it.

Features:

• Compact, feature-rich livestreaming USB audio mixer provides high-quality sound for desktop audio production
• Plug-and-play connectivity to computer or mobile device (no special drivers required)
• High-performance A/D converter with resolution up to 24-bit/192 kHz provides crystal-clear output for voice and instruments
• Loopback function makes it easy to mix mic and instrument inputs with background music, game sounds, or other audio input from a computer – and send the stereo mix back to the computer for streaming
• Equipped with a single mic input (XLR or ¼"), two LINE inputs for guitar and keyboard, and USB-C input for connecting to a computer
• The XLR input provides power for condenser microphones, such as the legendary AT2020, and is compatible with all dynamic microphones, such as the AT2040
• Simple, intuitive controls for independent, real-time volume adjustment of each input
• Mute button enables quick muting of microphone without disrupting other audio inputs
• Headphone jack with volume control lets you monitor the mix
• Microphone monitor mute button allows mic audio to be muted only in the mix sent to connected headphones
• Advanced noise-resistant design helps deliver clean streaming audio
• Equipped with output peak, SIG, and power indicator lights
• Includes a USB-C to USB-A cable and a USB-A to USB-C adapter

Specifications:

• Input Terminals: MIC - XLR/TRS combo jack LINE (GUITAR): 6.3 mm (1/4”) standard jack (Hi-Z) LINE (KEYBOARD): 6.3 mm (1/4”) standard jack, L/MONO and R USB STEREO INPUT
• Output Terminals: HEADPHONE OUT: 3.5 mm (1/8”) stereo mini jack USB STEREO OUTPUT
• USB: USB 2.0, High Speed
• Sampling Frequency: Max. 192 kHz
• Bit Rate: 16 bit / 24 bit
• Frequency Response: USB input to monitor output: ±1.5 dB (20 Hz to 20 kHz) (with loopback ON, max. USB input level, and medium monitoring volume (at 1 kHz))
• Phantom Power: +48 V
• Power Supply: USB-C bus power: 5 V, 500 mA; USB-C (power supply only): 5 V, 500 mA
• Power Consumption: Max. 2.5 W
• Dimensions: 127 mm (5”) × 131 mm (5.2”) × 44 mm (1.7”) (W × D × H), including protrusions
• Weight: 334 g (12 oz)
• Finish: Matte
• Supported OS: Windows - Windows 10, Windows 11 macOS: macOS Catalina, macOS Big Sur, macOS Monterey, macOS Ventura iOS: 16.4.1 iPad OS: 16.4.1 Android OS: 10, 11, 12, 13
• Accessories Included: USB cable (1.5 m (4.9'), USB Type-C to USB Type-A), USB conversion adapter (USB Type-A to USB Type-C)

Description:

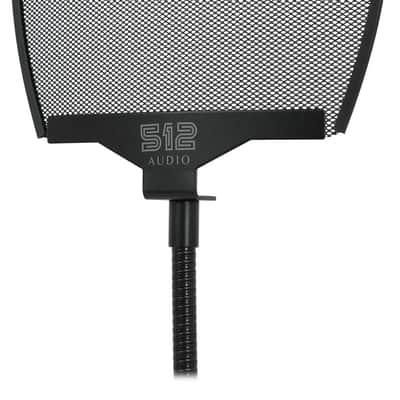

The 512-Pop professional pop filter makes it easy to achieve clear, natural audio. With its superior metal mesh design, the 512-Pop prevents unwanted pops and plosives from speech and vocals. Deliver clearer sound for recordings and livestreams without the hassle of editing in post-production. And with the flexible gooseneck and adjustable swivel c-clamp, you’ll easily find the perfect placement every time.

Cleaner Sound

• The 512-Pop prevents intrusive pops and plosives caused by bursts of air from “ppp”, “fff”, and “sss” sounds.
• You’ll save time and energy by avoiding post-production hassles and livestream concerns to deliver clearer sound.

Superior Protection

• The 512-Pop features an elegant metal mesh filter that more effectively disperses pops and plosives from speech and vocals compared to ordinary nylon pop filters.
• And with its flexible yet sturdy gooseneck, you’ll easily find the perfect placement that reliably stays in place.

Features:

• Prevents plosives or “pop” sounds
• Metal mesh design
• Flexible, sturdy gooseneck
• Adjustable swivel c-clamp
• Perfect for close-range speech or singing
• Fits any boom arm or desk stand
• Attaches easily. Adjustable swivel c-clamp ensures a secure grip and attaches securely to any mic stand, boom arm, or custom desk stand.
• Perfect placement. Flexible gooseneck enables easy set-and-forget placement.
