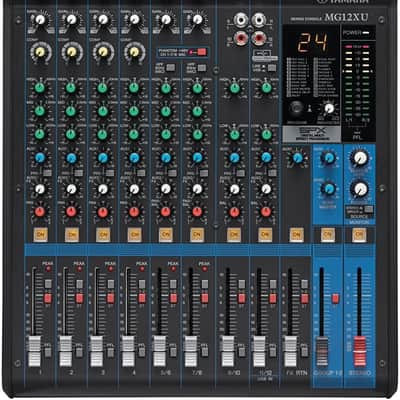

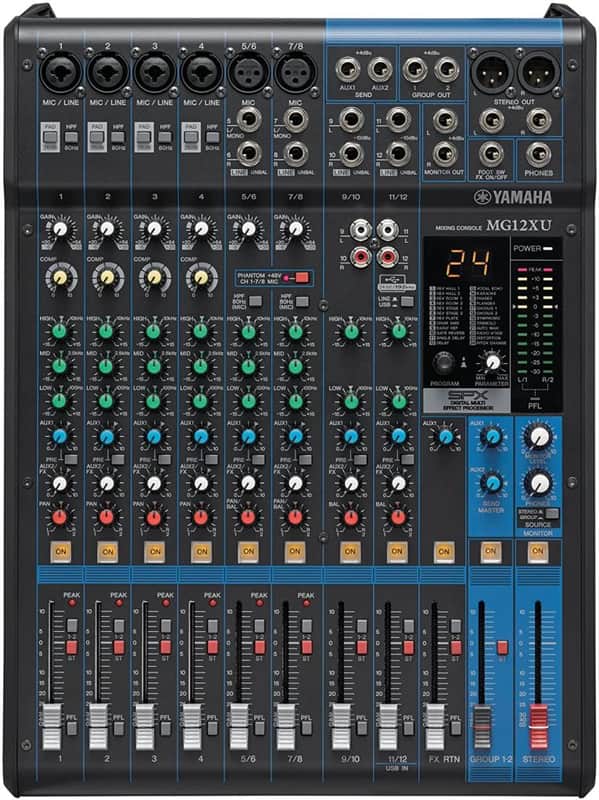

12-Channel Analog Mixer: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)

Order the Yamaha MG12XU mixer from KPODJ today.

Yamaha MG12XU Features:

12-Channel Analog Mixer
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Optional Rack Mount Kit RK-MG12 Available
Metal chassis
Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6")
Net Weight: 4.2 kg (9.3 lbs.)

Specifications:

Built-in Effects SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
Phantom Power +48 V switchable, channels 1 - 4
Digital I/O USB: USB Audio Class 2.0 compliant
Sampling frequency: max 192 kHz
Bit depth: 24-bit
Input Channels 4x mono [mic/line]
2x mono/stereo [mic/line]
2x stereo [line]
Output Channels 2x stereo out
1x monitor out
1x headphone out
2x aux out
2x group out
Bus Stereo: 1
AUX: 2
GROUP: 2
Pad 26 dB (mono)
HPF 80 Hz, 12 dB/oct (mono/stereo: MIC only)
Compressor Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec
Equalizer EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
LED Peak LED turns on when post EQ signal reaches 3 dB below clipping
Level Metering 2 x 12-segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total Harmonic Distortion 0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min
Frequency Response +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise -128 dBu (mono input channel, Rs: 150 ?, GAIN knob: max)
Residual Output Noise -102 dBu (STEREO OUT, STEREO master fader: min)
Crosstalk -78 dB
Power Requirement AC 100 - 240 V, 50 / 60 Hz
Power Consumption 22 W
Dimensions 12.1 x 4.6 x 16.6"
Net Weight 9.3 lb
