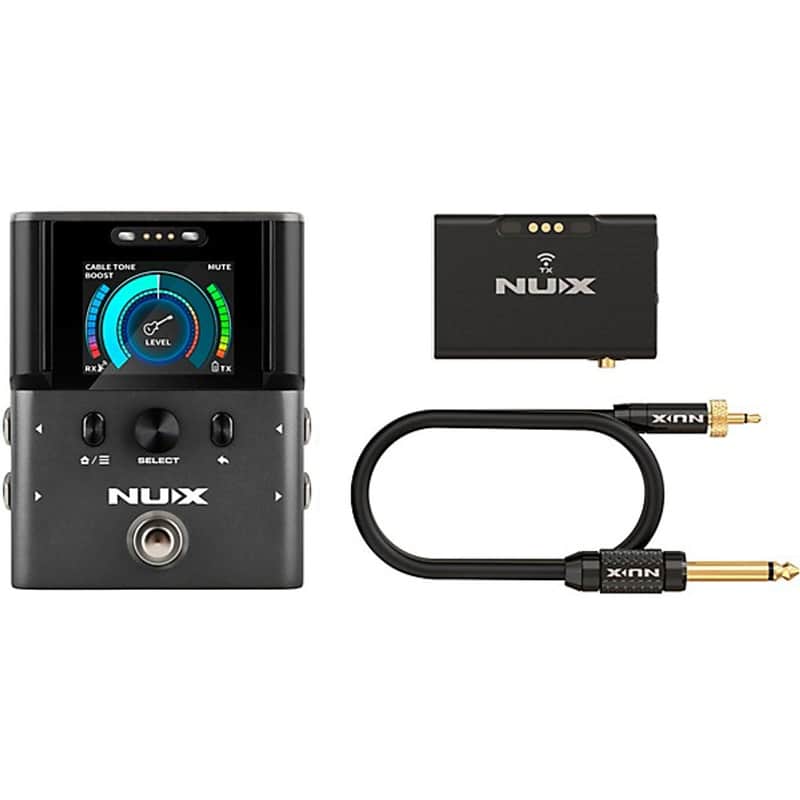

The NUX B-8 is a professional-grade wireless system that integrates multiple essential tools into a single, compact pedalboard unit. Operating on the 2.4GHz frequency band, it delivers high-fidelity 24-bit/48kHz audio with ultra-low latency, ensuring a stable and interference-free connection. Designed for electric guitars, basses, and various instruments with electronic pickups, the B-8 offers unparalleled convenience and performance for both live and studio settings.

Key Features:

• High-Quality Wireless Audio: 24-bit/48kHz digital transmission over 2.4GHz frequency band.

• Ultra-Low Latency: As low as 2.5ms in low-latency mode; up to 8.7ms in stable mode.

• Built-In Tuner: Multiple tuning modes including Chromatic, Guitar Standard, Guitar Compensated, and Bass.

• Adjustable Boost Function: Provides up to +12dB gain, ideal for solos or driving amplifiers harder.

• Cable Tone Simulation: Optional feature to emulate the warmer sound of a traditional cable.

• Effects Loop Integration: 1/4” SEND and RETURN jacks allow seamless integration of effect pedals.

• Balanced XLR DI Output: Direct connection to mixers or audio interfaces with optimal signal integrity.

• Automatic Pairing: Transmitter and receiver pair within seconds for quick setup.

• Customizable Boot-Up Screen: Personalize the receiver's display with a custom GIF.

• Operating Frequency Band: 2400–2483.5MHz

• Audio Quality: 24-bit / 48kHz

• Frequency Response: 20Hz–20kHz

• Latency: 2.5ms (low-latency mode), up to 8.7ms (stable mode)

• Input Impedance: 1 MΩ

• Maximum Input Level: +6.2 dBV (5.78 Vp-p) at 1kHz, 1% THD

• THD+N: 0.01% at 1kHz (typical)

• Dynamic Range: 122dB, A-weighted (OUTPUT/SEND)

• Output Level Adjustment Range: Mute to 0dB

• Transmitter Battery: 3.7V/500mAh Rechargeable Li-polymer

• Transmitter Battery Life: Up to 6.5 hours

• Receiver Power Requirements: 7V to 12V DC, 500mA min (negative tip)

• Operating Range: Up to 50 meters (165 feet) line-of-sight

• Transmitter Dimensions: 72.5mm x 49.3mm x 23mm

• Transmitter Weight: 63g

• Receiver Dimensions: 122mm x 95mm x 60mm

• Receiver Weight: 500g

Included Accessories:

• Transmitter

• Receiver

• USB-C Cable (for charging and firmware updates)

• 1/4” to 1/8” Audio Cable
