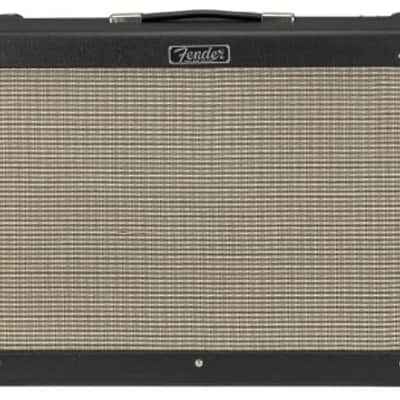

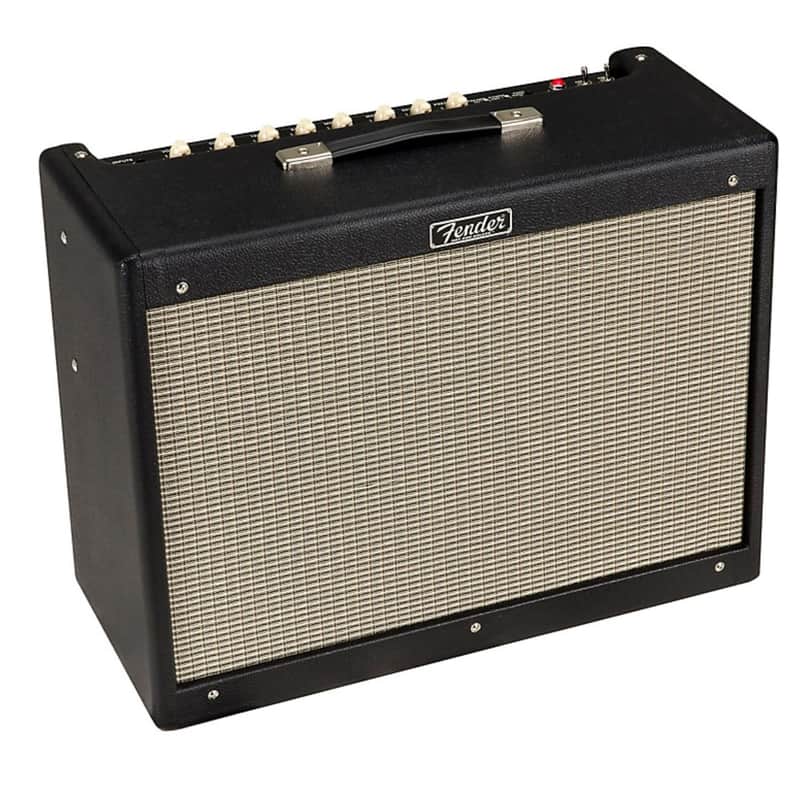

An updated version of the legendary amplifier
that’s been the heart of many guitarists’ rigs, the
Hot Rod Deluxe IV features modified preamp
circuitry, smoother-sounding spring reverb and
updated aesthetics that any player is sure to
appreciate. A supercharged amp decked out with
player-requested features, this scorching 40-watt
1x12" combo is ideal for guitarists who need hot-
rodded power with performance to spare.
The Hot Rod Deluxe IV includes a 12" Celestion®
A-Type speaker for well-balanced output with
smooth highs, laid-back midrange and full, round
lows. The modified preamp circuitry improves
overdriven note definition, so you'll have articulate
sound no matter how hard you push this amp. The
onboard spring reverb has been modified to add
smoothness, so you still get rich, shimmering tone,
no matter how much reverb you use. The updated
aesthetics include a lightweight pine cabinet,
improved control panel texture and graphics, ivory
pointer knobs, steel-reinforced strap handle and
lightly-aged silver grille cloth, giving it the
unmistakable look and vibe you can only get from
a Fender amp. Reliable, flexible and pedal-
friendly, the Hot Rod Deluxe IV is an ideal addition
to any electric guitarist’s amp collection.

Series: Hot Rod
Amplifier Type: Tube
Height: 18.75” (47.6 cm)
Width: 23.5” (59.7 cm)
Depth: 10.5” (26.7 cm)
Weight: 41 lbs. (18.59 kg)
Speaker: One - 12” Celestion® A-Type
Inputs: Two - (1/4”, Input 2 operates at -6dB)
Channels: Three - Selectable (Normal, Drive and More Drive)
Controls: Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive
Select Switch, Drive Volume, Bright Switch
Effects: Reverb
Speaker Jack: Two 1/4” Parallel (Internal and External)
Wattage: 40 Watts
Preamp Tubes: 3 x 12AX7
Power Tubes: 2 x 6L6
Rectifier: Solid State
Cabinet Material: Lightweight Solid Pine
Covering: Black Textured Vinyl
Grille Cloth: Lightly-Aged Silver
Handle: Molded Plastic Strap with Nickel-Plated Caps
Knobs: Chicken-Head Style Pointer - Ivory
Black Black
Pilot Light Jewel: Red Jewel
Footswitch: 2-Button Footswitch Included
Cover: Included
