Serial Number: S65027924

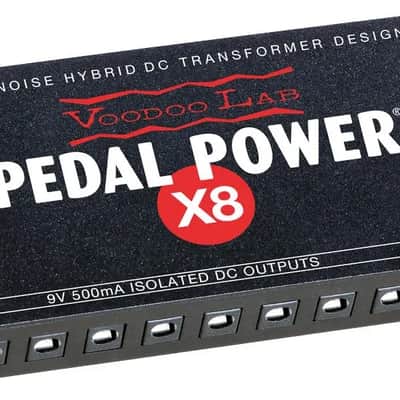

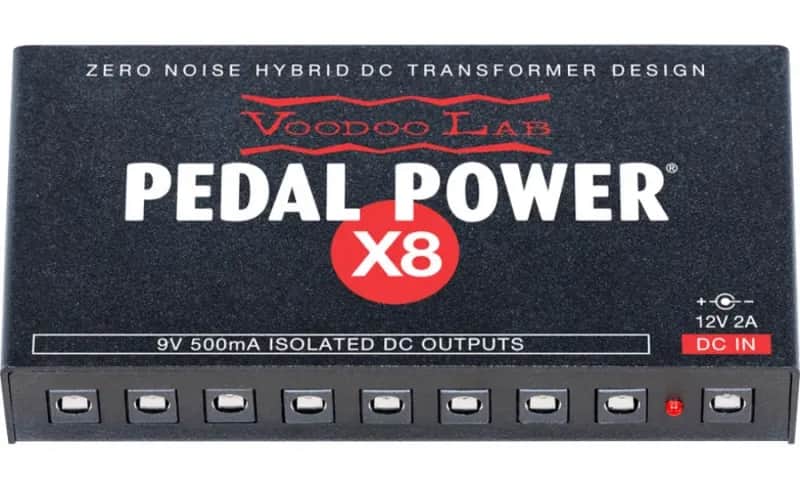

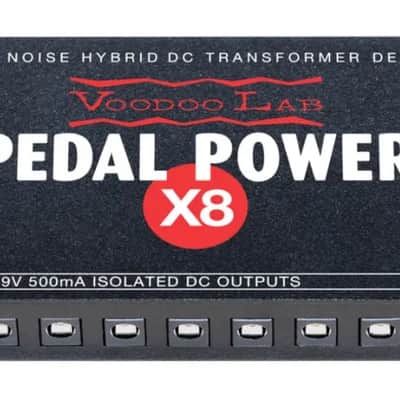

The Voodoo Lab Pedal Power X8 is a compact, high-current isolated power supply designed to deliver clean, reliable power to a wide range of guitar pedals. Featuring eight isolated 9V DC outputs, each capable of supplying up to 500mA, it ensures that even the most power-hungry digital effects receive the necessary current without introducing noise or hum. Its hybrid DC transformer design combines linear regulation and advanced filtering to provide audiophile-quality power, preserving the tonal integrity of your pedals. The Pedal Power X8 is ideal for small to medium-sized pedalboards and is suitable for both vintage analog and modern digital effects.

Specifications:

• Outputs: 8 isolated 9V DC outputs, each delivering up to 500mA

• Input Voltage: 100V–240VAC, suitable for international use

• Design: Hybrid DC transformer with linear regulation and advanced filtering

• Construction: Compact aluminum chassis measuring 5.5" x 2.75" x 1" and weighing 8 ounces

• Power Source: Includes a 12V AC adapter (PS1220) providing 2A of current

• Compatibility: Can be powered from an X-LINK expansion port on Pedal Power 3 Series units

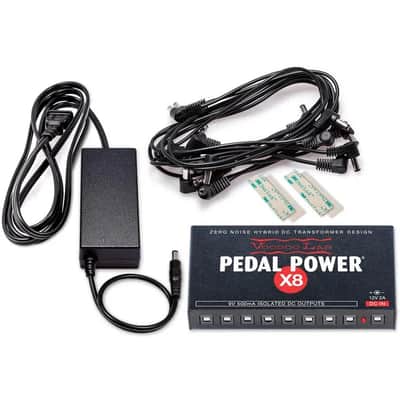

• Included Accessories: Comes with a DC power cable kit and 3M Dual Lock for mounting

• Warranty: 5-year warranty in North America

The Pedal Power X8 is hand-built in the U.S.A. and is designed to meet the demands of modern pedal setups while maintaining the high-quality performance Voodoo Lab is known for.
