Description

The classic C12 sound

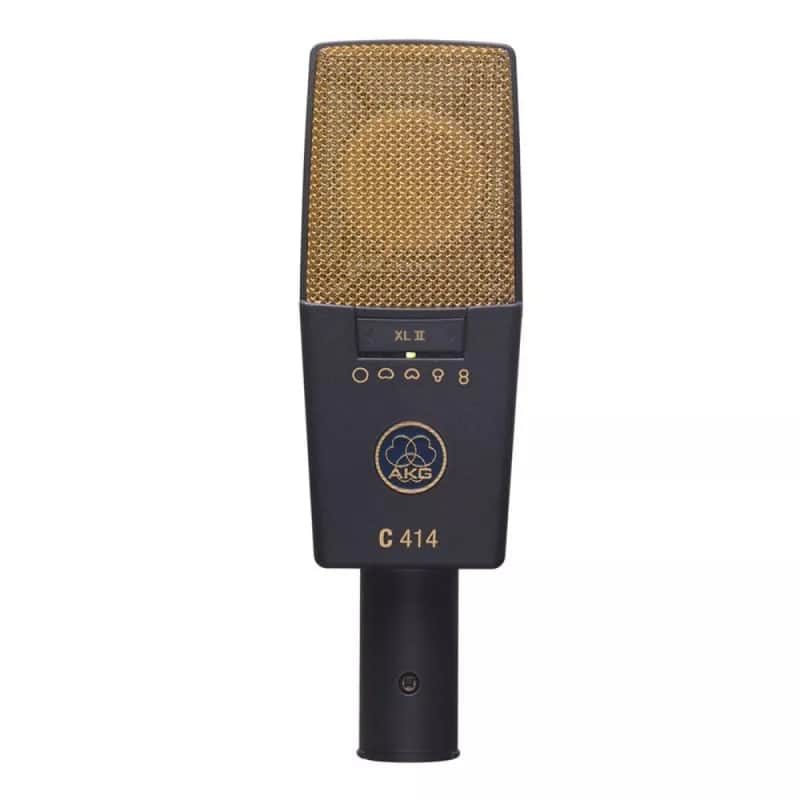

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

Specs

General Specifications

Polar Patterns: Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid

Audio frequency bandwidth: 20 - 20000 Hz

Equivalent noise level: 6 dB-A

Sensitivity: 23 mV/Pa

Signal to Noise: 88 dB-A

Preattenuation Pad: -6; -12; -18 dB

Bass cut filter: 160; 80; 40 Hz

Electrical impedance: 200 Ohms

Recommended load impedance: 2200 Ohms

Dimensions

Length: 38 mm

Width: 50 mm

Height: 160 mm

Net Weight: 300 g

Design

Finish: dark gray/gold

Audio OutputType: Balanced XLR

Gender: Male

Contacts: 3-pin

Powering Interface

Voltage: 44 to 52 V

Current: 4.5 mA

Application: Pro Studio

Instrument: Vocals, Piano / Strings, Horns / Woodwinds

What's in The Box?

1 x C414 XLII Microphone

1 x H85 Universal Shock Mount

1 x PF80 Pop Filter

1 x W414 Windscreen C414

1 x Metal Carrying Case
